Best suited for applications that come into direct contact with processing product and are subjected to regular sanitisation procedures, in areas such as such as meat and poultry, fish and seafood processing, fruit and vegetables, dairy production, beverages, bakery applications and marine.

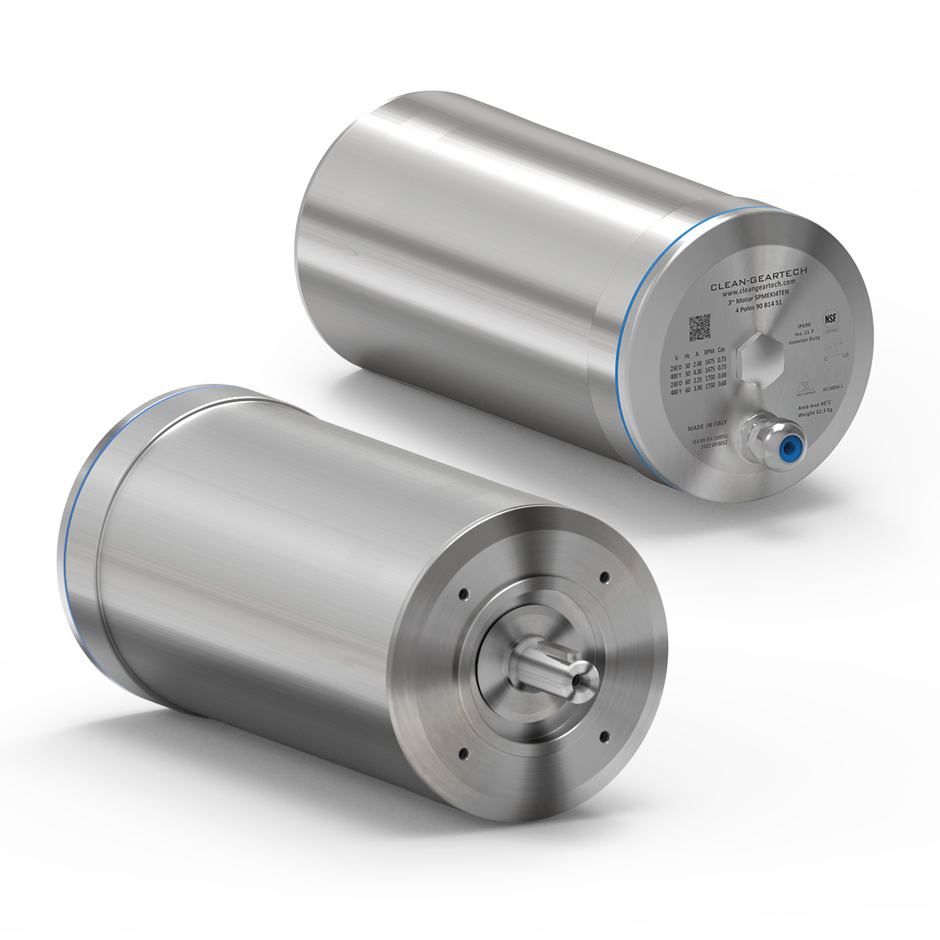

The IP69K rating means the Clean-Geartech Stainless Motor is protected against dust ingress and high temperature, high pressure water pressures.
Products with an IP69K rating are specifically-produced for use in food & beverage production equipment, where components must be easily & fully sanitised.
| Frame | kW | Speed | Amps (400V) | Torque (Nm) | IP Rating | Effeciency |
|---|---|---|---|---|---|---|
| 4pole Motors | ||||||
| 63A | 0.12 | 1445 | 0.40 | 0.81 | IP69K | IE4 Premium Efficiency |
| 63B | 0.18 | 1445 | 0.48 | 1.21 | IP69K | IE4 Premium Efficiency |
| 71A | 0.25 | 1444 | 0.64 | 1.66 | IP69K | IE4 Premium Efficiency |
| 71B | 0.37 | 1440 | 0.94 | 2.45 | IP69K | IE4 Premium Efficiency |
| 80A | 0.55 | 1448 | 1.34 | 3.66 | IP69K | IE4 Premium Efficiency |
| 80B | 0.75 | 1456 | 1.74 | 4.95 | IP69K | IE4 Premium Efficiency |
| 90S | 1.1 | 1475 | 2.50 | 7.15 | IP69K | IE4 Premium Efficiency |
| 90L | 1.5 | 1475 | 3.34 | 9.75 | IP69K | IE4 Premium Efficiency |
| 100 | 2.2 | 1445 | 4.80 | 14.5 | IP69K | IE4 Premium Efficiency |
| 2pole Motors | ||||||
| 63A | 0.18 | 2890 | 0.45 | 0.60 | IP69K | IE4 Premium Efficiency |
| 63B | 0.25 | 2895 | 0.58 | 0.84 | IP69K | IE3 Premium Efficiency |
| 71A | 0.37 | 2930 | 0.85 | 1.23 | IP69K | IE4 Premium Efficiency |
| 71B | 0.55 | 2910 | 1.24 | 1.85 | IP69K | IE4 Premium Efficiency |
| 80A | 0.75 | 2900 | 1.52 | 2.45 | IP69K | IE4 Premium Efficiency |
| 80B | 1.1 | 2910 | 2.10 | 3.60 | IP69K | IE4 Premium Efficiency |
| 90S | 1.5 | 2930 | 3.00 | 4.90 | IP69K | IE4 Premium Efficiency |
| 90S | 2.2 | 2920 | 4.20 | 7.20 | IP69K | IE4 Premium Efficiency |
| 100LA | 3.0 | 2910 | 5.50 | 9.80 | IP69K | IE4 Premium Efficiency |
| 6pole Motors | ||||||
| 71A | 0.18 | 890 | 0.55 | 1.95 | IP69K | IE4 Premium Efficiency |
| 71B | 0.25 | 890 | 0.75 | 2.65 | IP69K | IE4 Premium Efficiency |
| 80A | 0.37 | 890 | 1.10 | 3.98 | IP69K | IE4 Premium Efficiency |
| 80B | 0.55 | 900 | 1.30 | 5.30 | IP69K | IE4 Premium Efficiency |
| 90S | 0.75 | 940 | 1.70 | 7.60 | IP69K | IE4 Premium Efficiency |
| 90L | 1.1 | 950 | 2.40 | 11.10 | IP69K | IE4 Premium Efficiency |
