| Type | Torque (Nm) | Hollow shaft (mm) | Max kW Input |
|---|---|---|---|
| VFN 30 | 21 | 14mm | 0.09kw-0.18kw |
| VFN 45 | 41 | 18mm (19mm upon request) | 0.12kw-0.37kw |
| VFN 50 | 72 | 25mm (24mm upon request) | 0.12kw-0.75kw |
| VFN 63 | 147 | 25mm (28mm & 30mm upon request) | 0.37kw-1.8kw |
| VFN 85 | 347 | 35mm | 0.55kw-4.0kw |

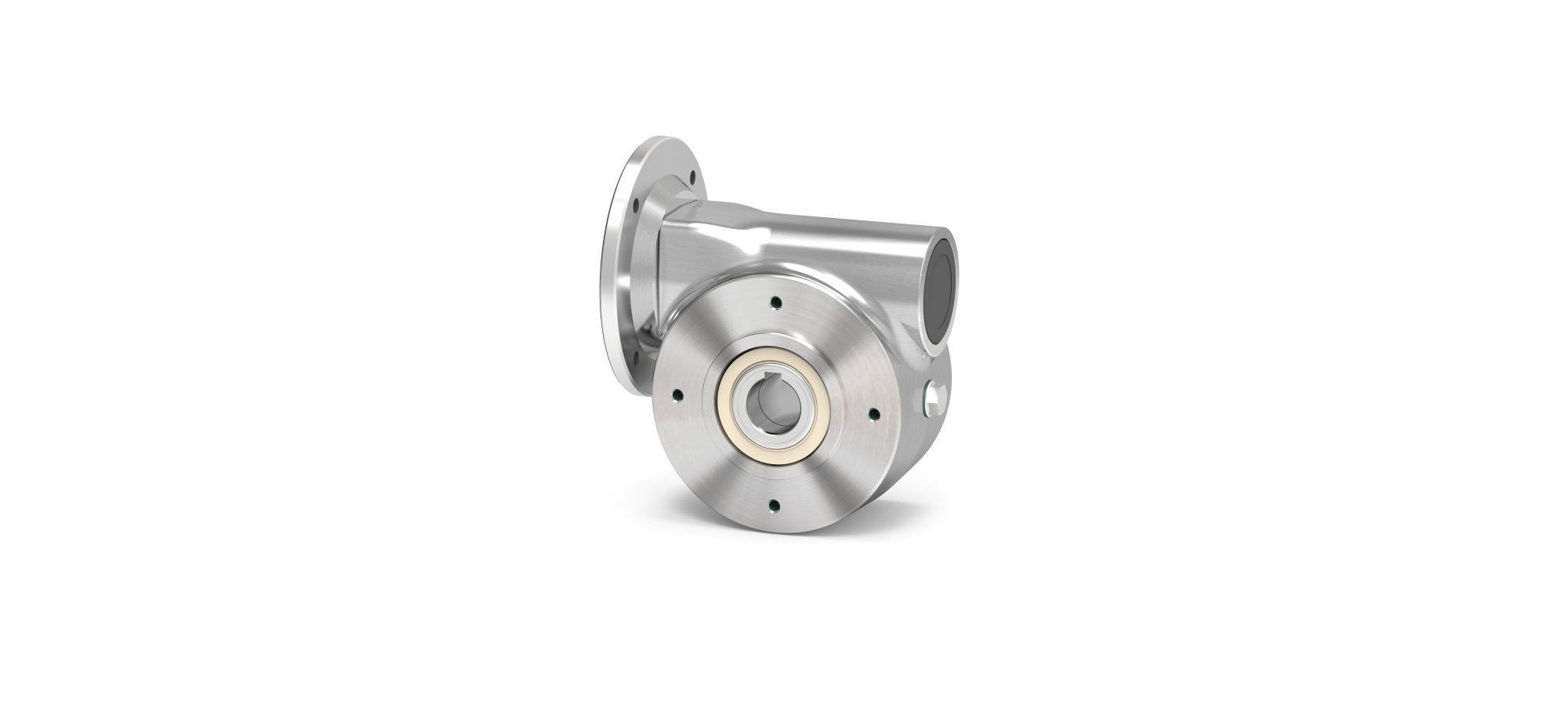

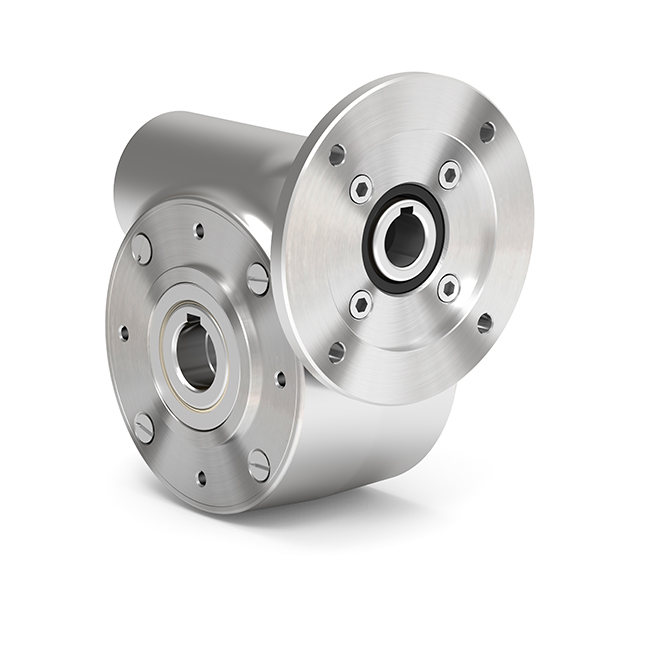

Clean-Geartech VFN Series Stainless Steel Round Worm Gearboxes
Available in 6 casing sizes rated for up to 650Nm, with standard hollow bore sizes 14mm through to 42mm, with several optional bores available on request. The casing is design is the same as the VFD aluminium series, which makes it interchangeable with several other brands of worm gearboxes and makes upgrading existing applications easier than ever before.
Twin viton seals with stainless steel shield; IP69K certified
100% factory pressure leak tested
Output shaft is produced in AISI 316L
Special covering assures full protection of oil spills
Input coupling for effective torque transmissions
Product Enquiry: Clean-Geartech VFN Series Stainless Steel Round Worm Gearboxes
VFN Stainless Steel Worm Gearbox Applications
Best suited for applications that come into direct contact with processing product and are subjected to regular sanitisation procedures, in areas such as such as meat and poultry, fish and seafood processing, fruit and vegetables, dairy production, beverages, bakery applications and marine.
Suitable for Food processing sectors
- Meat
- Poultry
- Dairy
- Seafood
- Petfood
