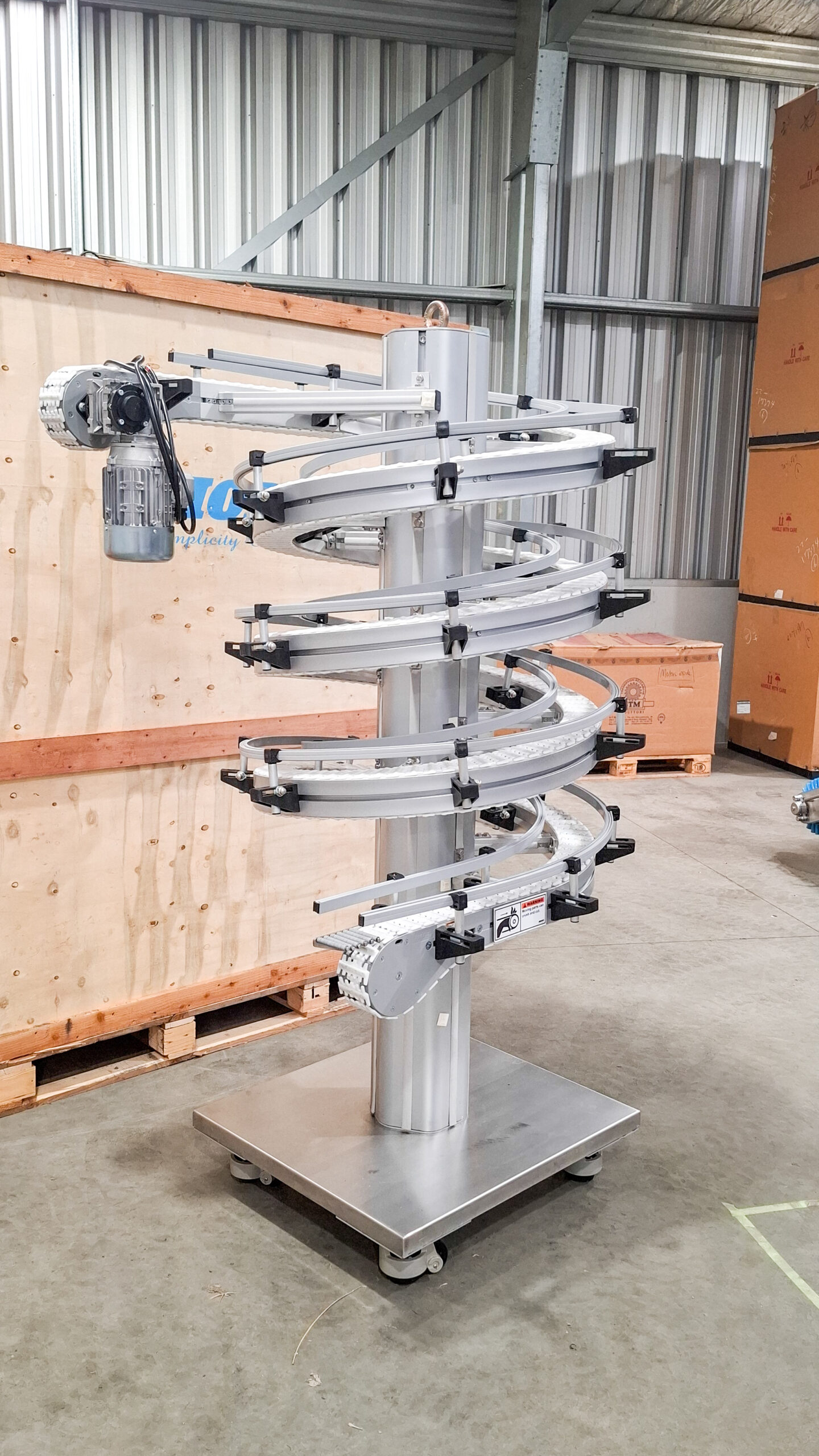

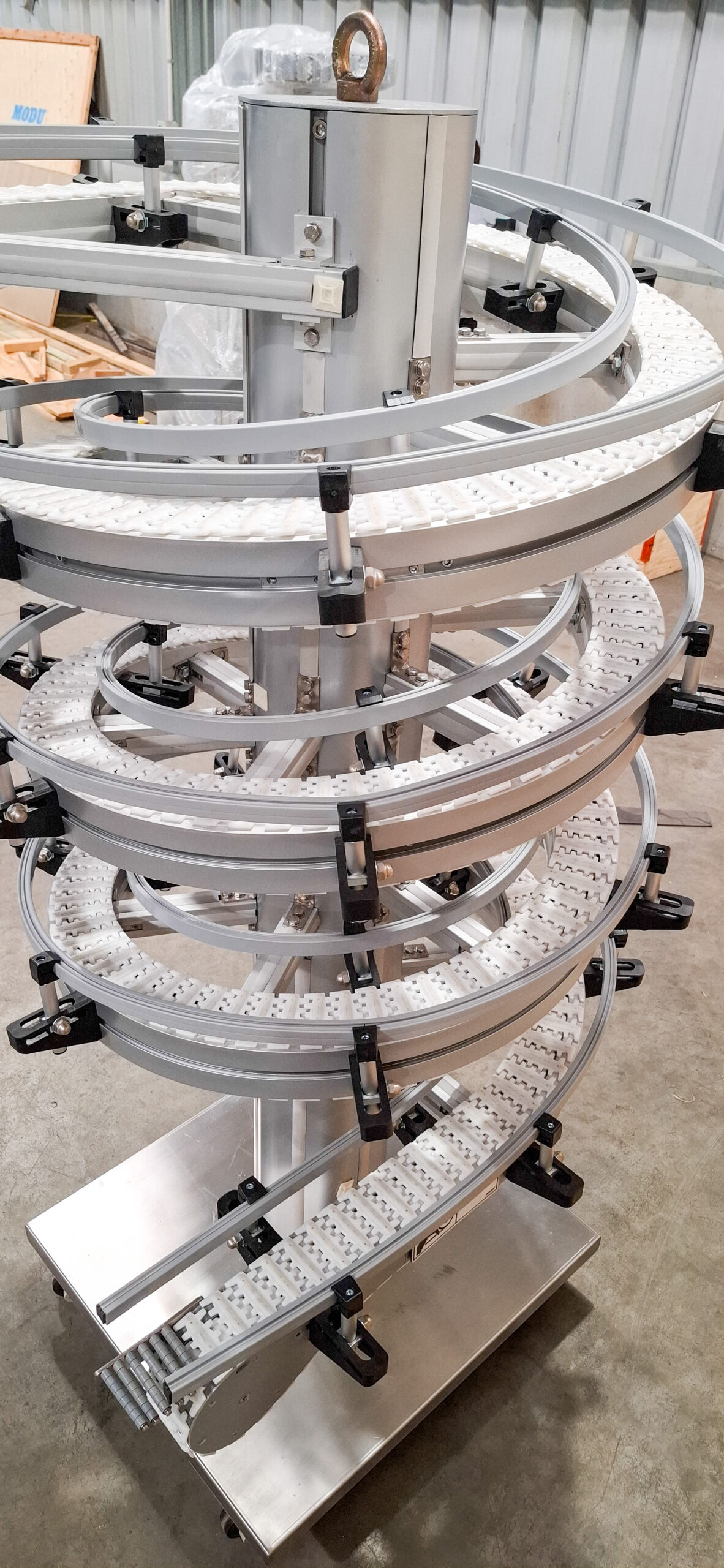

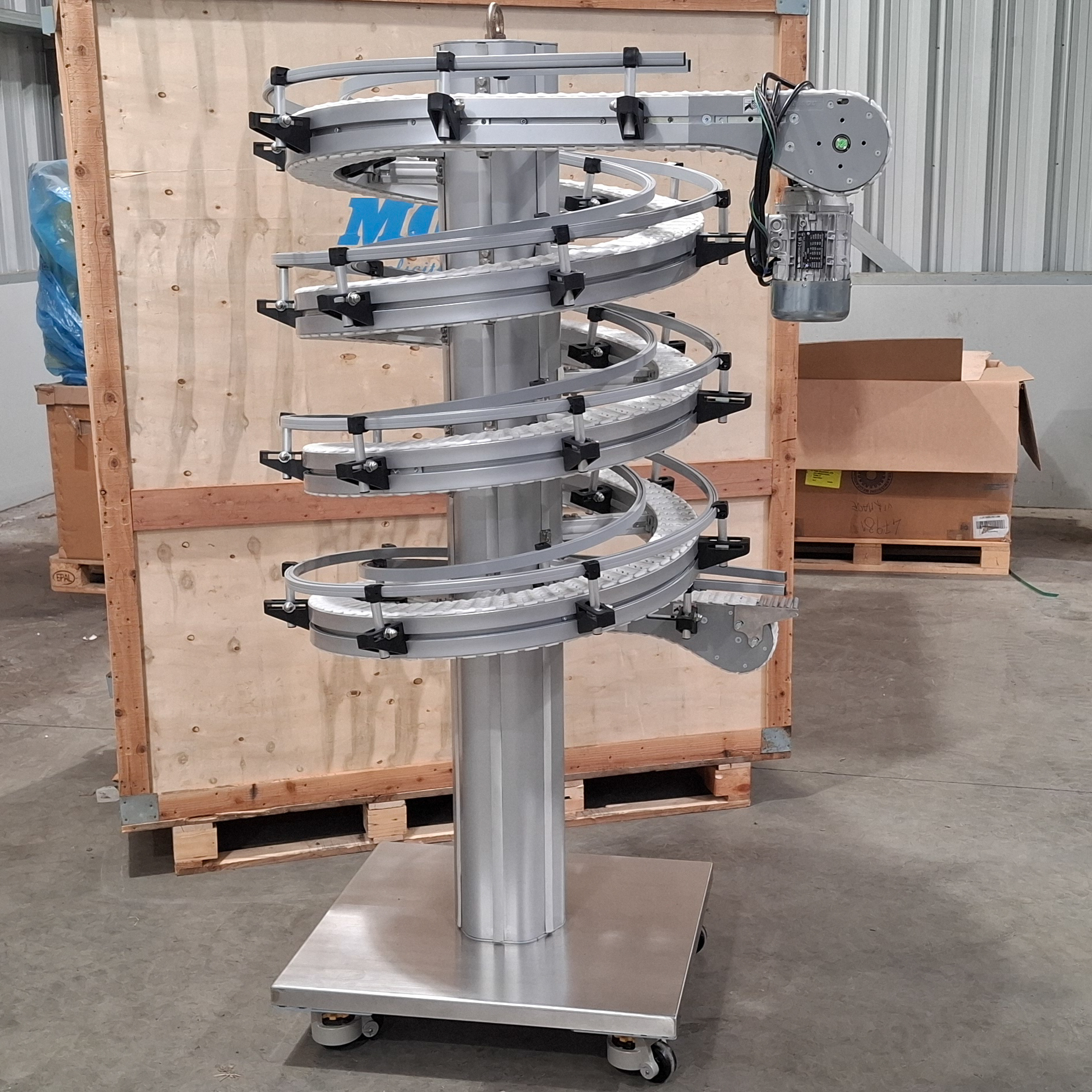

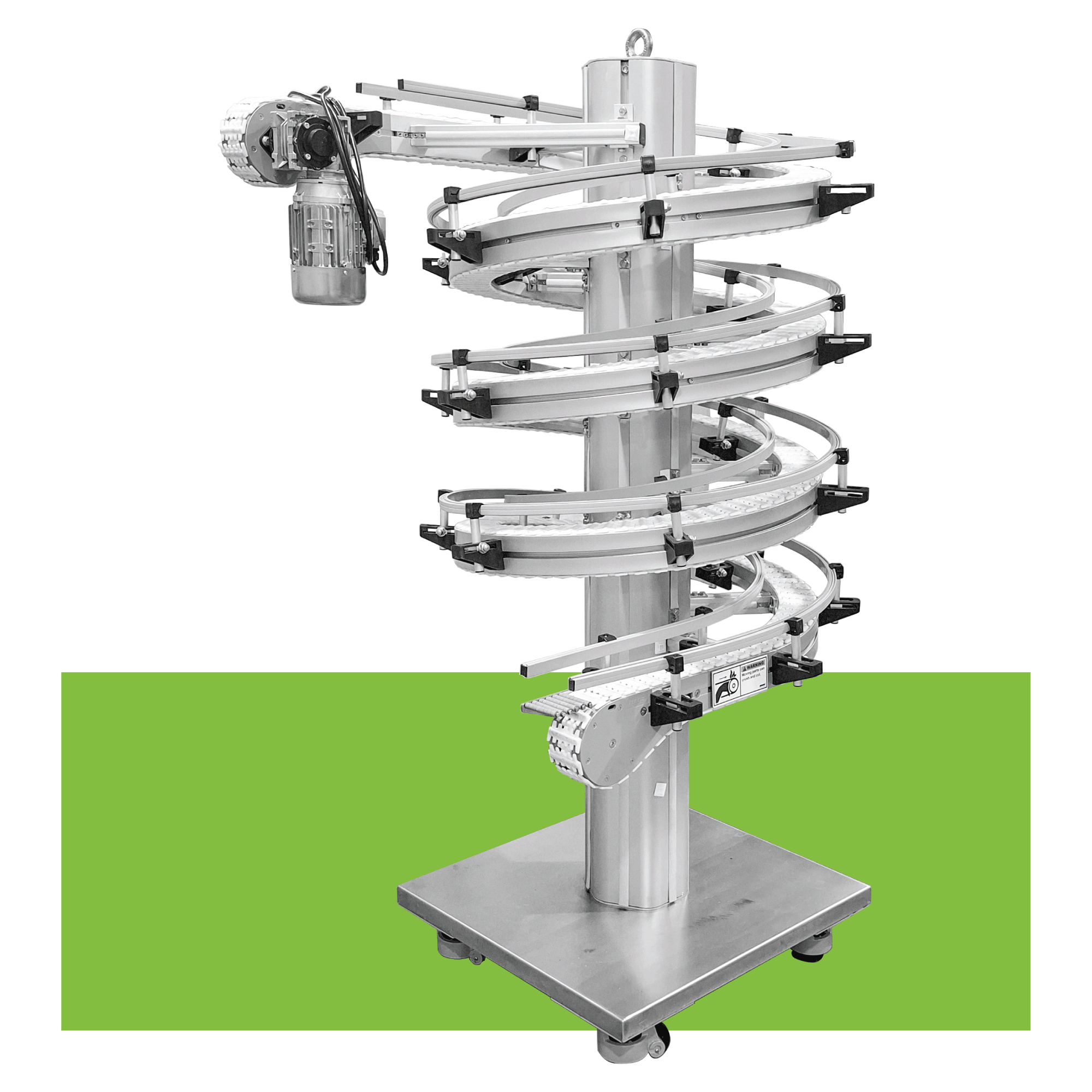

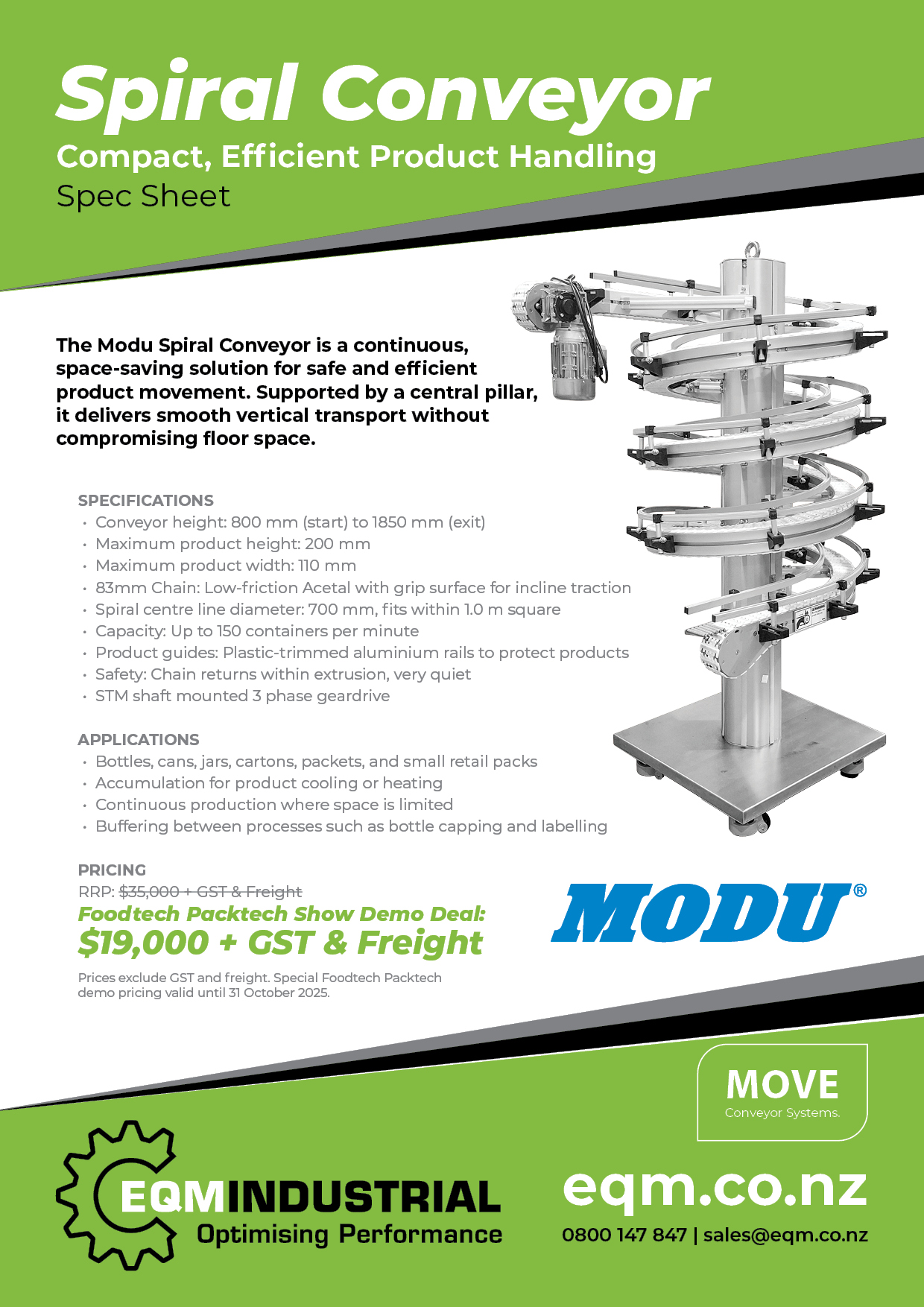

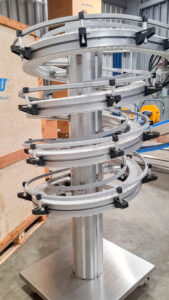

Modu Spiral Conveyor – Compact, Efficient Product Handling

Specifications:

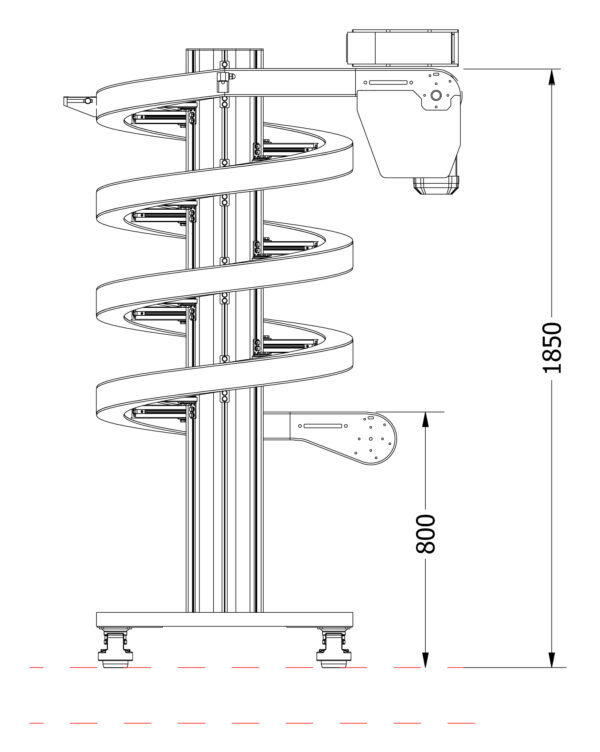

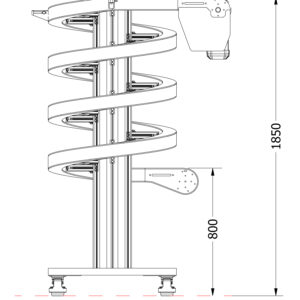

• Conveyor height: 800 mm (start) to 1850 mm (exit)
• Maximum product height: 200 mm
• Maximum product width: 110 mm

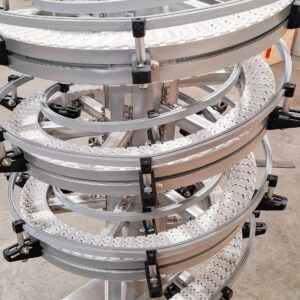

• 83mm Chain: Low-friction Acetal with grip surface for incline traction

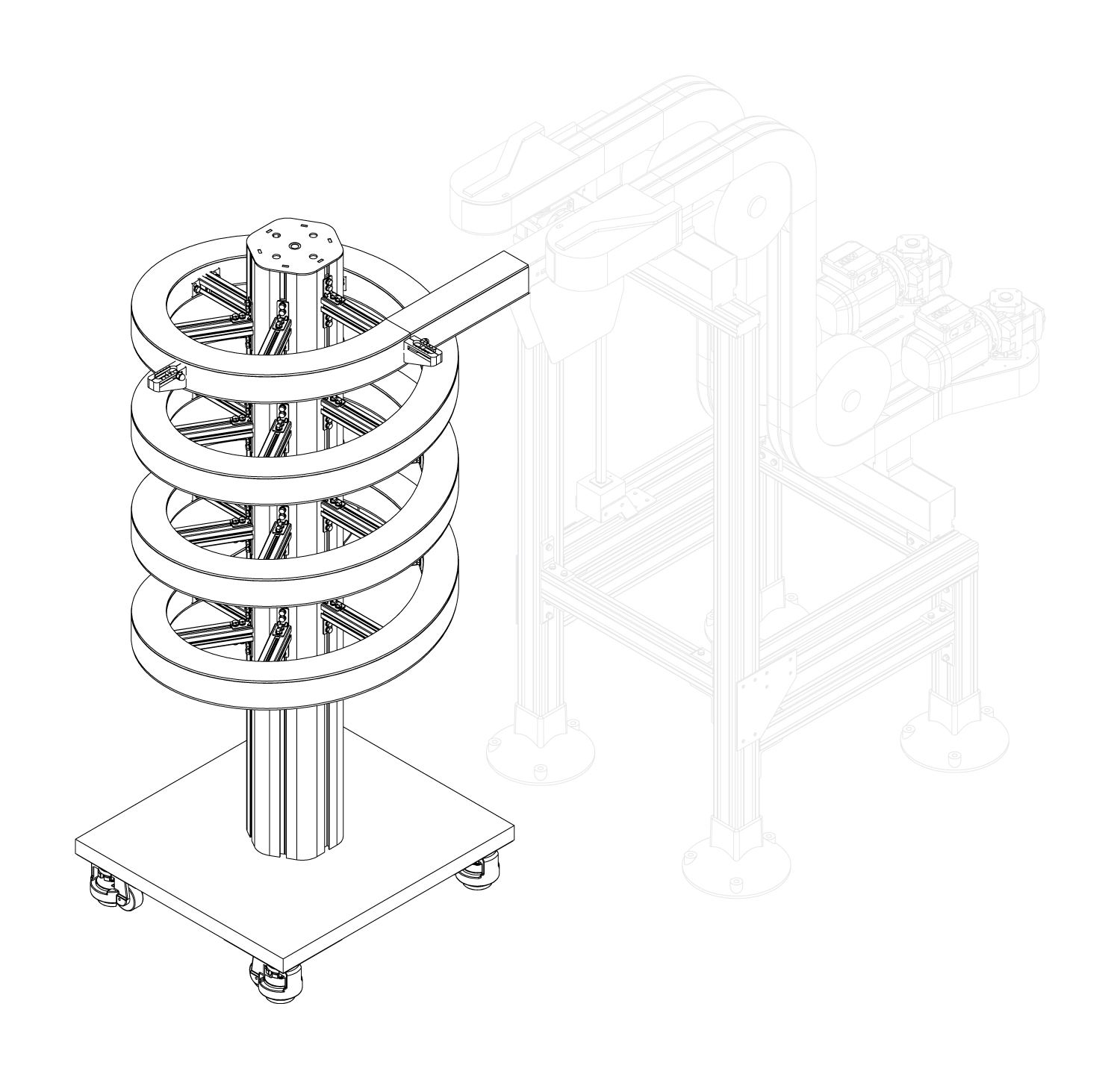

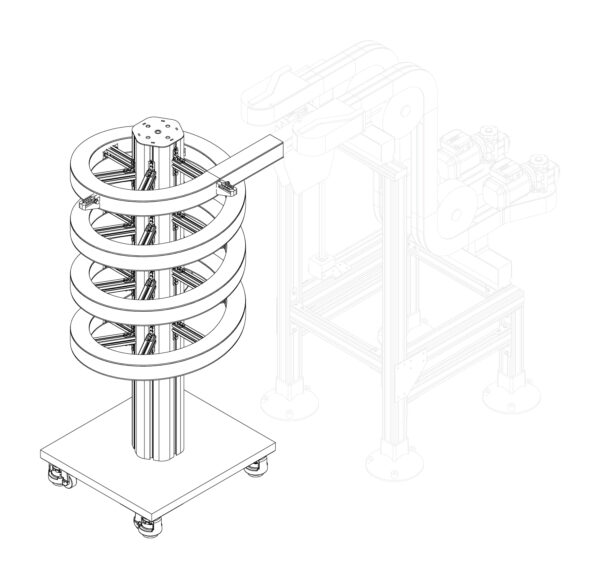

• Spiral centre line diameter: 700 mm, fits within 1.0 m square
• Capacity: Up to 150 containers per minute
• Product guides: Plastic-trimmed aluminium rails to protect products
• Safety: Chain returns within extrusion, very quiet
• STM shaft mounted 3 phase geardrive

Applications:

• Bottles, cans, jars, cartons, packets, and small retail packs
• Accumulation for product cooling or heating
• Continuous production where space is limited
• Buffering between processes such as bottle capping and labelling
