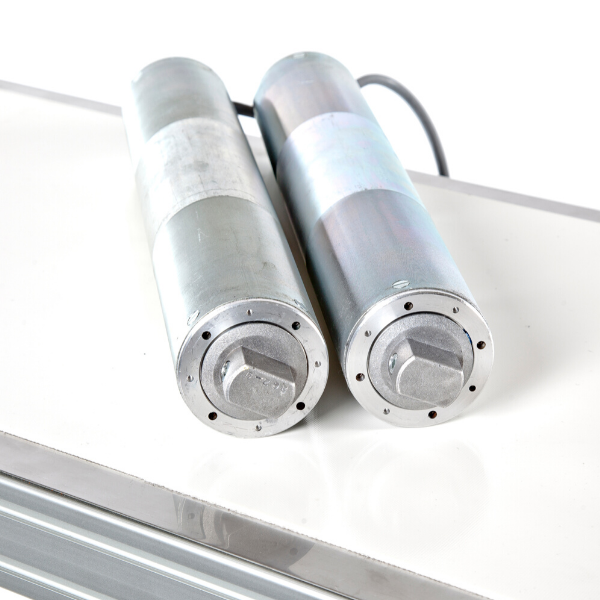

AX112 Drum Motor

AX112 drum motor is a common diameter that is suited to many conveying requirements. Its 112mm diameter makes it popular for driving PVC conveyor belts in many industries. Available with all polymer or steel combination planetary gears with oil lubrication these units offer an economic, reliable and versatile conveyor belt drive.

Features:

• Diameter 112mm
• Asynchronous three phase or single phase motors
• Planetary gearset
• Insulation class F
• 0.06kw to 0.37kw input power options
• IP66 ingress protection
• Aluminium or stainless construction
• Life lubricated with synthetic oil
