MX2 Horizontal Plain Bend 45 Degrees
Shipping calculated at checkout.
Integrate precision and flexibility into your conveyor system with the MX2 Horizontal Plain Bend 45 Degrees. Tailored for efficient material handling around corners, this bend offers various effective track lengths.

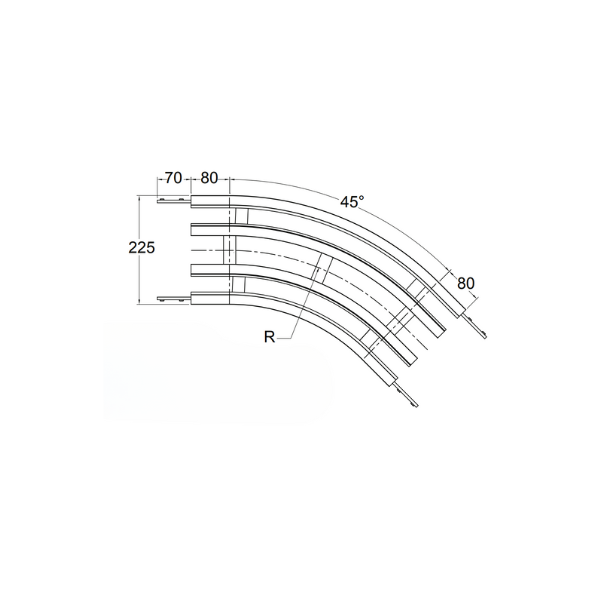

Tolerance: ± 2 degrees & Radius: ± 10mm
Connecting strip and set screw included.
Effective Track Length:
- R500: 0.79m 1-way (1.58m 2-way)
- R700: 0.95m 1-way (1.90m 2-way)
- R1000: 1.12m 1-way (2.40m 2-way)
Variants:
- Horizontal Plain Bend 45 Degrees, 500mm
- Radius: 500mm
- Weight: 4.6kg
- Supply: 1 Unit
- Horizontal Plain Bend 45 Degrees, 700mm
- Radius: 700mm
- Weight: 5.6kg
- Supply: 1 Unit
- Horizontal Plain Bend 45 Degrees, 1000mm
- Radius: 1000mm
- Weight: 7.2kg
- Supply: 1 Unit
