Case Study: Conveyor Packing Line Setup for L’Oréal NZ Distribution Centre
Multi-Operator Conveyor Packing Line Setup for L’Oréal NZ Distribution Centre.
The Challenge

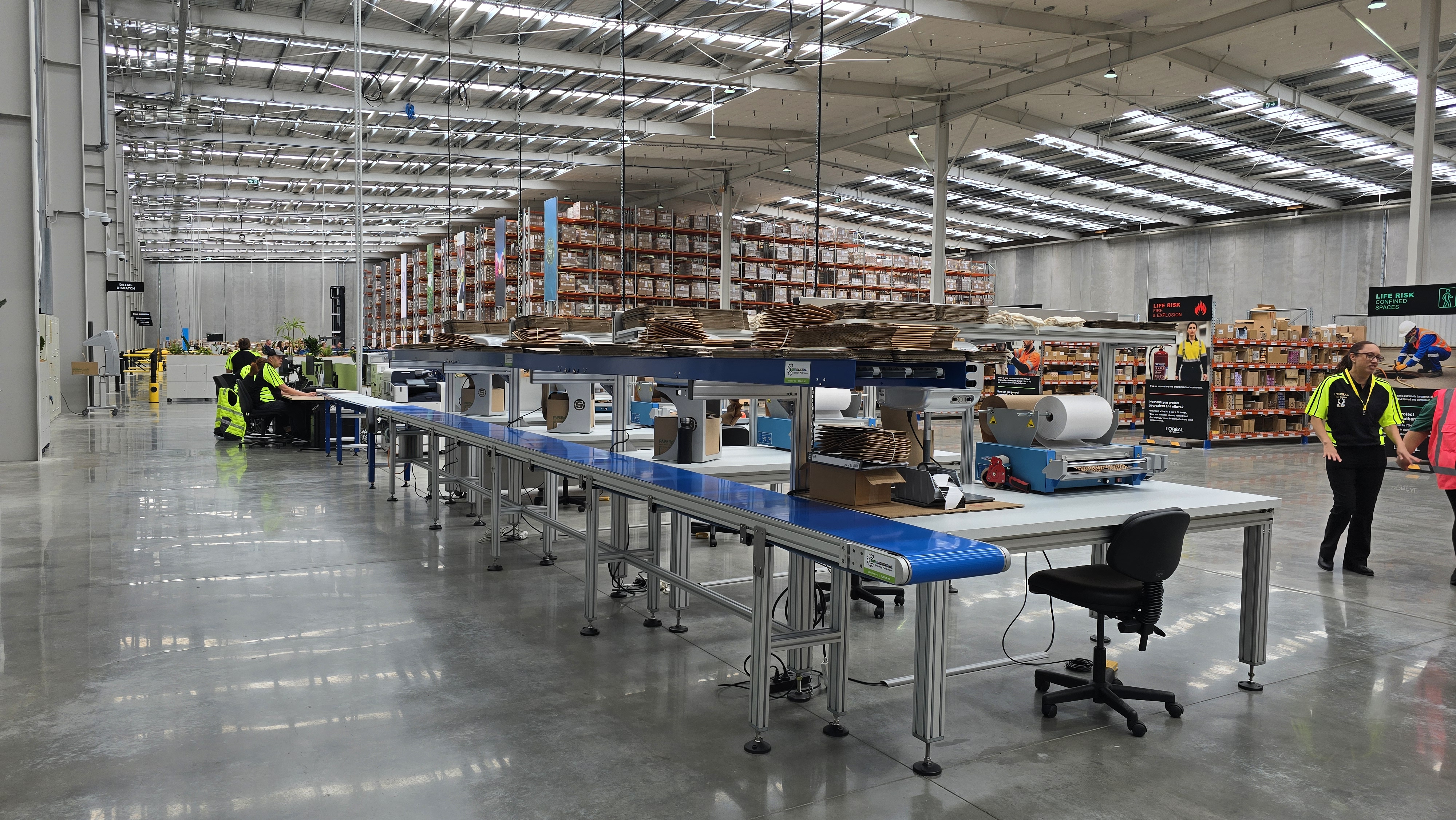

L’Oréal NZ needed an efficient online order packing system capable of handling multiple operators at once. The goal was to create four dedicated packing stations, each with enough room for packaging and wrapping machines, all feeding into one central conveyor. The system also required additional overhead storage for cartons, ergonomic design for staff, and seamless flow through to dispatch.
EQM’s Process and Solution

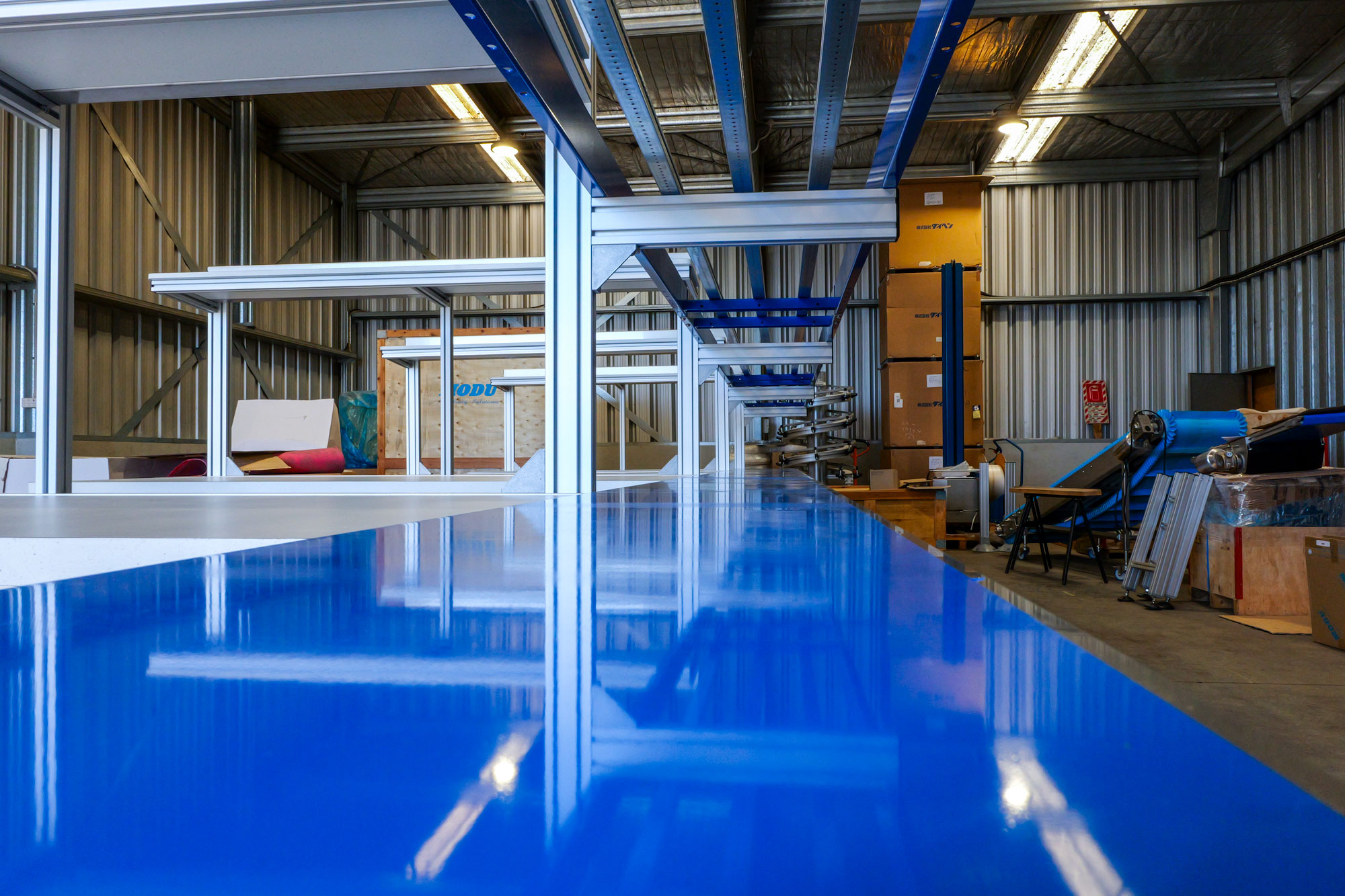

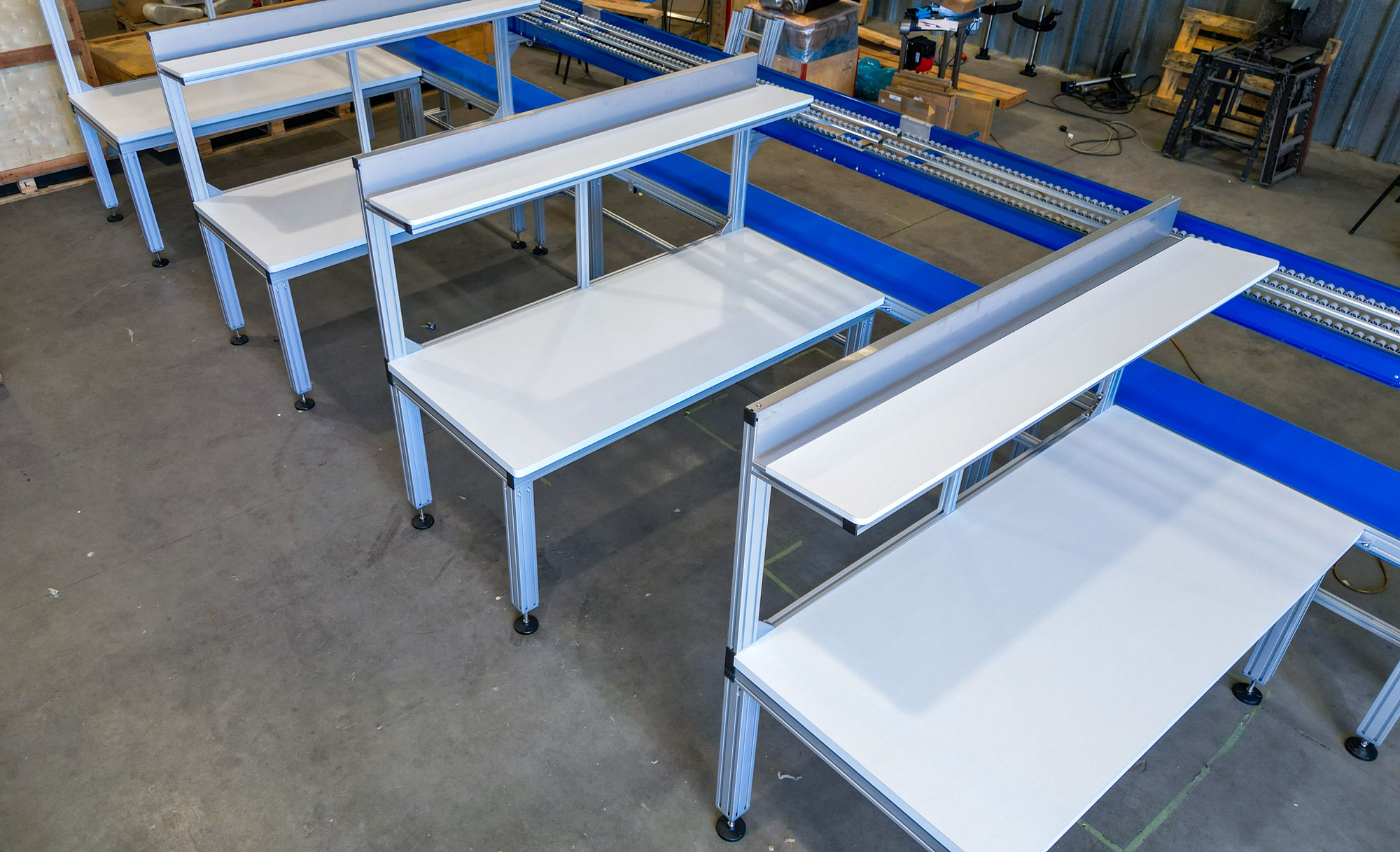

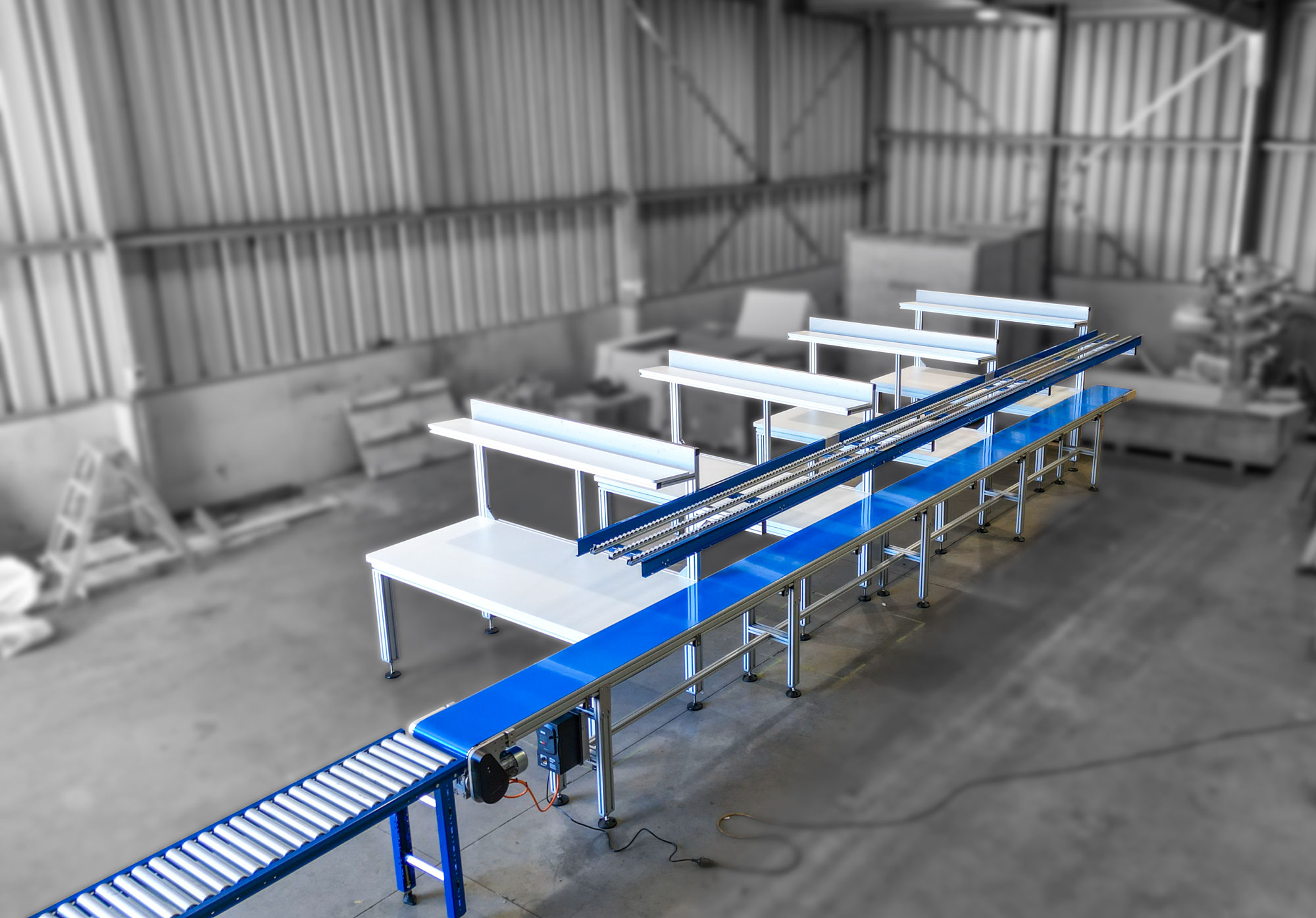

EQM designed a custom-built order packing line using modular Easy EBS80 belt conveyor technology. This conveyor provided the backbone for the system, with four evenly spaced packing benches constructed from Slotpro aluminium framing and laminated tops.

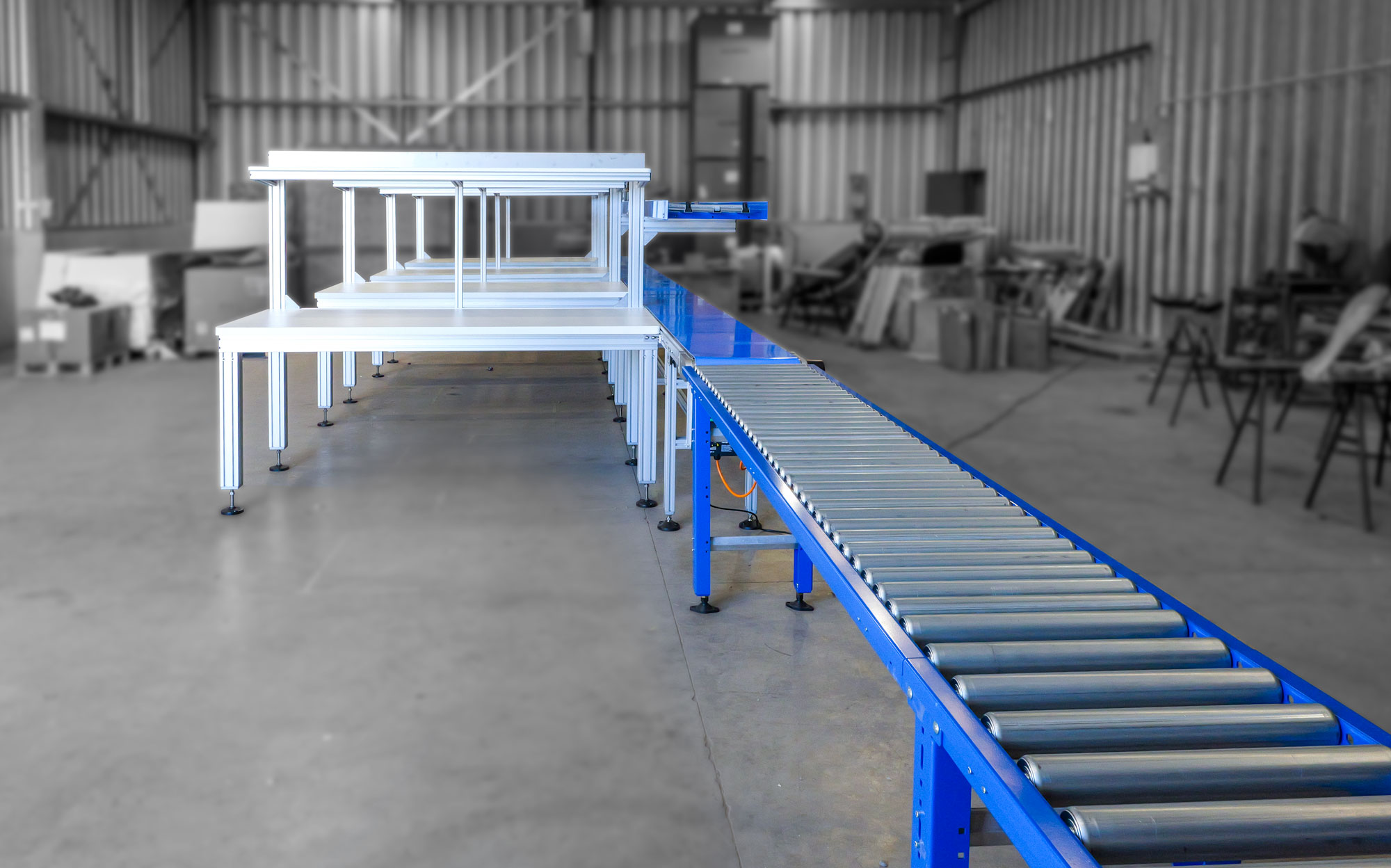

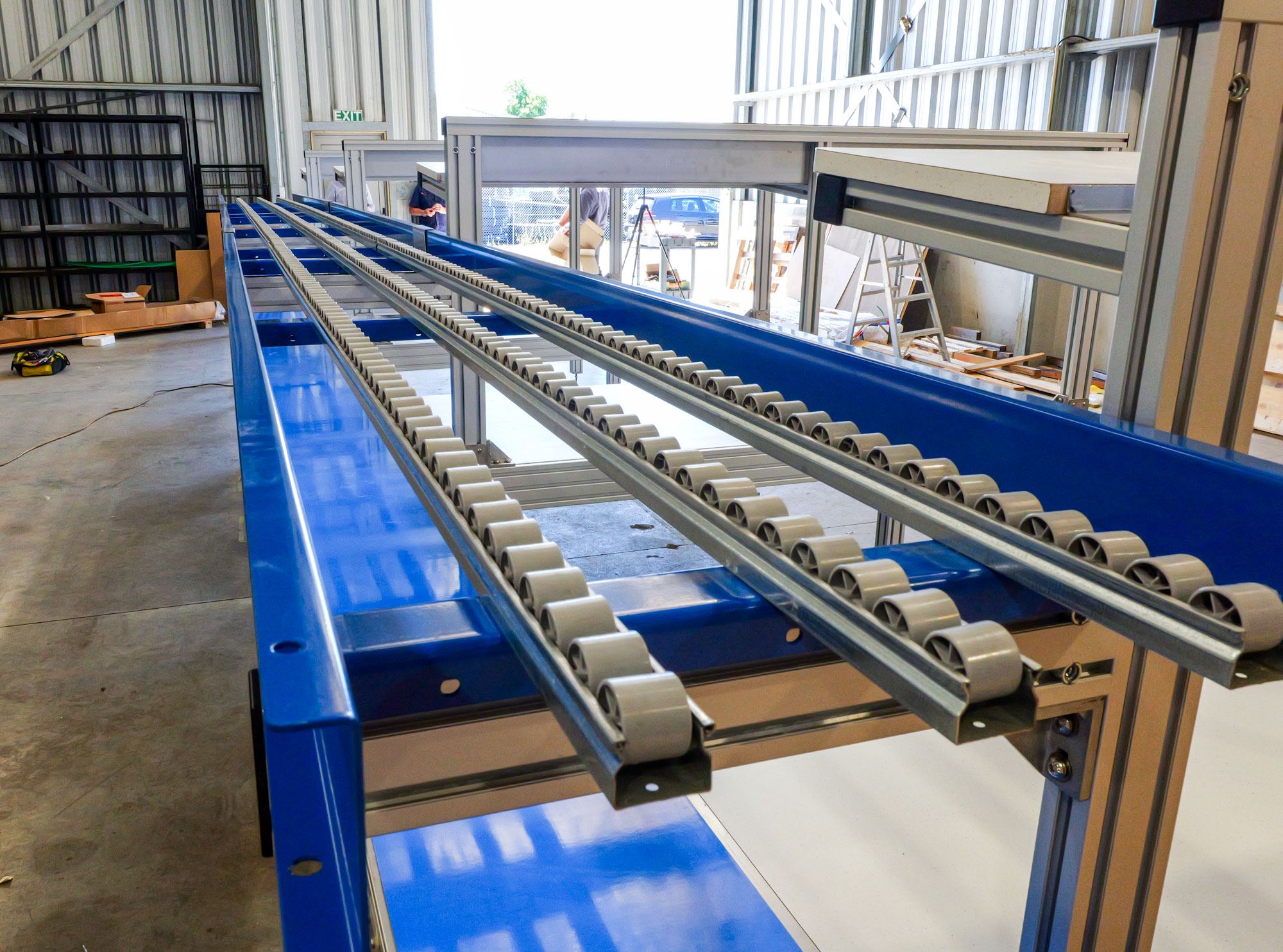

To maximise efficiency and reduce unnecessary movement, EQM integrated overhead racks above the workstations, ensuring packers had quick access to flat-packed cartons. At the end of the line, a RollPro gravity roller conveyor was added to accumulate completed cartons for dispatch.

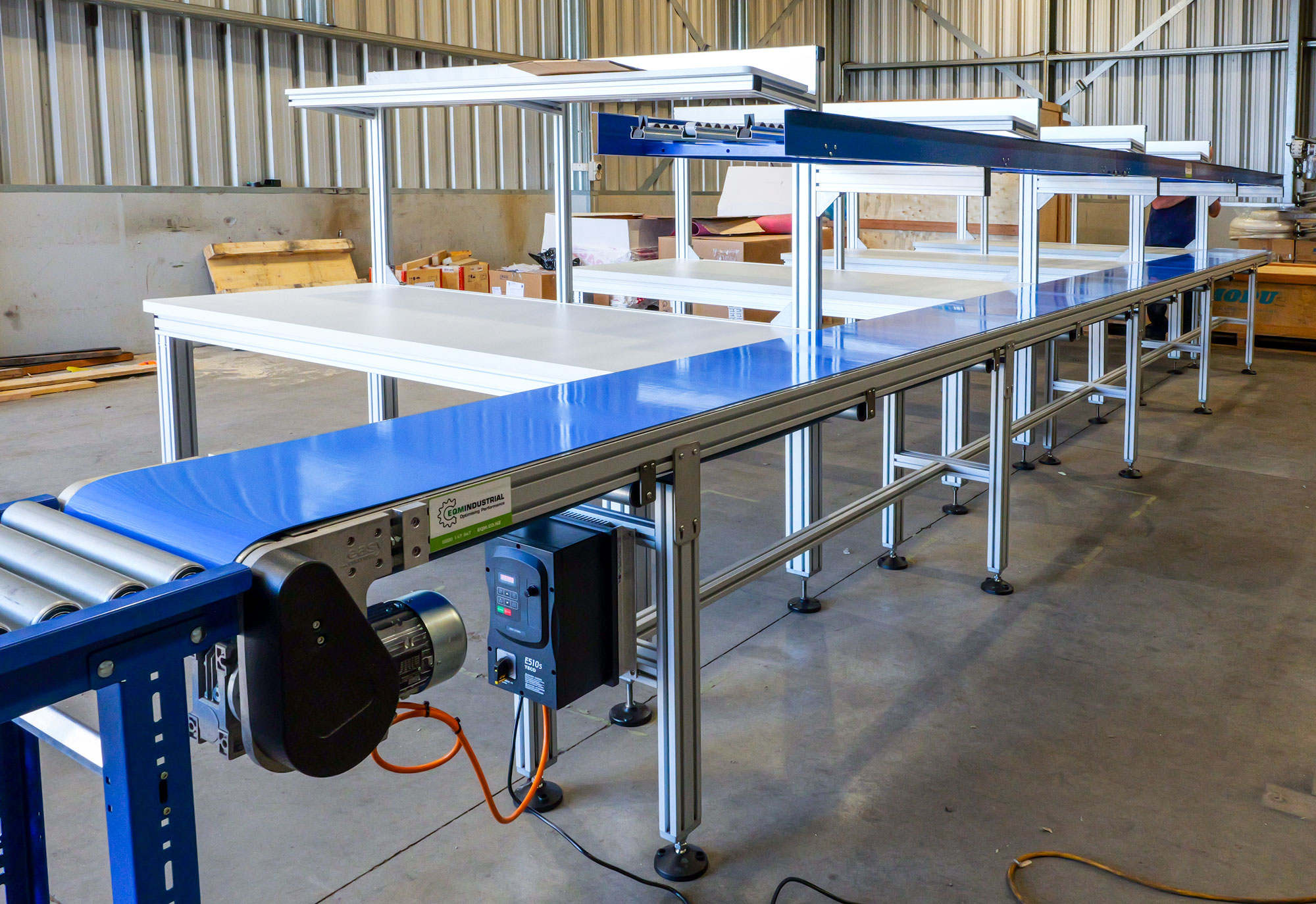

The system was driven by reliable STM shaft-mounted gear drives with a Teco variable speed controller, allowing speeds to be optimised for different workloads.
Key Stats & Improvements

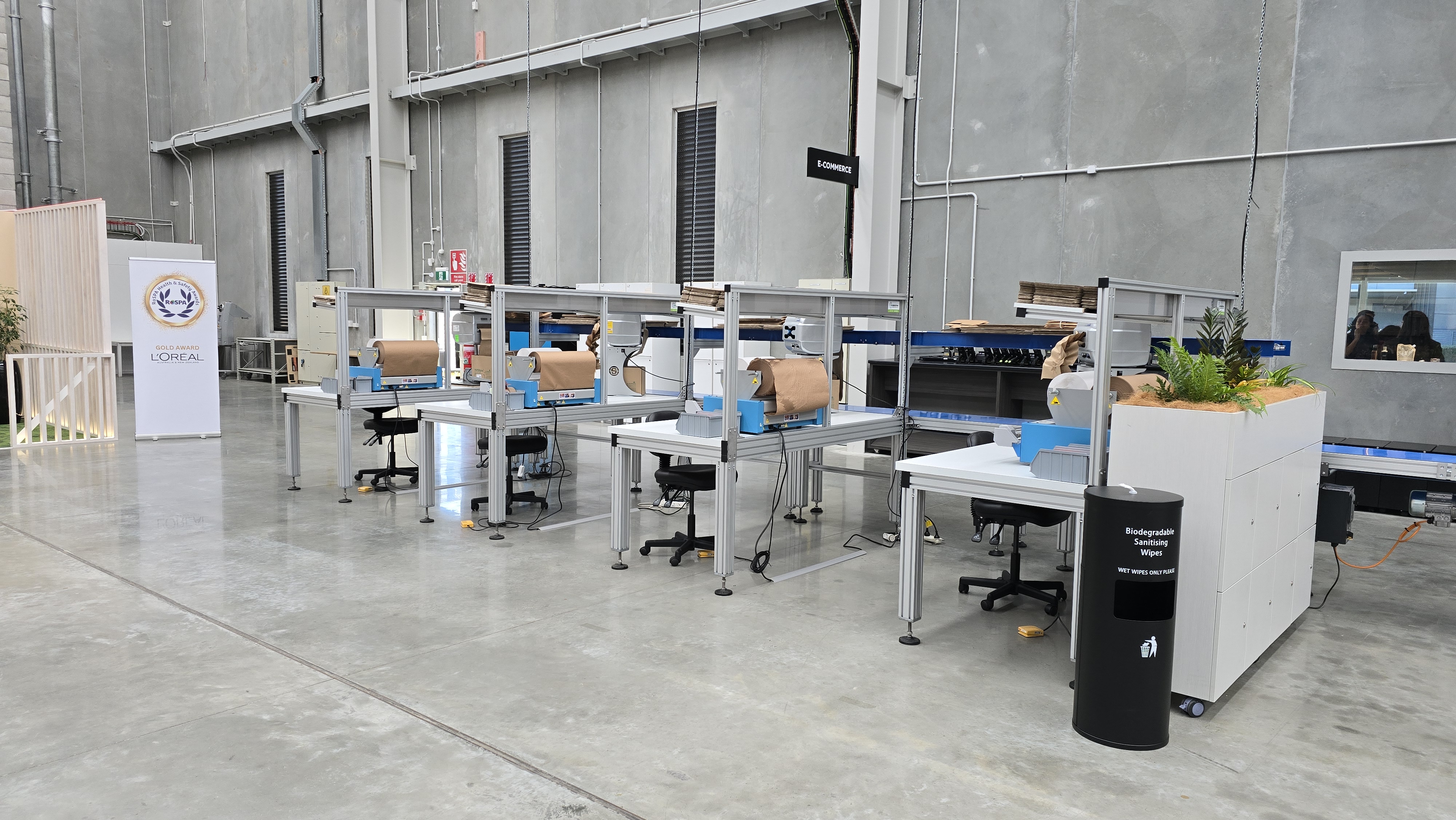

- 4 individual packing stations built to ergonomic standards.
- 8.4m modular Easy EBS80 belt conveyor forming the main line.
- Integrated overhead carton storage to improve workflow efficiency.
- 3m RollPro gravity roller conveyor for accumulation and smooth dispatch.
- STM gear drives with Teco inverter control for variable speed operation.
Benefits Delivered & Products Used
- Streamlined operations: Operators can work side-by-side without congestion.
- Ergonomic & safe: Laminated worktops, overhead racks, and clean design improve staff comfort.
- Scalable & future-proof: Modular conveyor and Slotpro aluminium framing allow layout changes if required.
- Continuous operation: System designed to run day and night with minimal attention.
Products Used:
- Easy EBS80 Belt Conveyor
- Slotpro Aluminium Frame Workbenches with Overhead Racks
- RollPro Gravity Roller Conveyor
- STM Gear Drives & Teco Variable Speed Controllers
