Choosing the right industrial gearbox is crucial to optimising the efficiency, reliability, and longevity of factory/plant equipment.
It ensures effective power transfer, speed and torque adjustments, directional change, and matching motor output to load requirements.

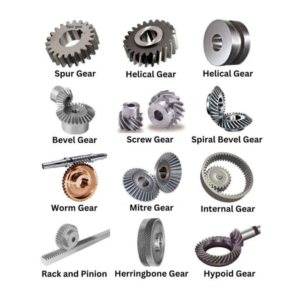

The Importance of Gears
A gearbox’s function and efficiency are defined by its gears
- Worm Gears: Deliver significant torque reduction with a self-locking feature. Suitable for conveyor systems and lifting mechanisms.
- Helical Gears: Angled teeth provide quieter, smoother operation with greater load capacity. Typically found in parallel shaft gearboxes.
- Spur Gears: Straight-toothed gears that offer high efficiency. Commonly used in straightforward, high-speed applications.
- Bevel Gears: Designed for applications requiring a change in rotational axis, such as industrial machinery and automotive differentials.
- Bevel Helical Gears: A blend of bevel and helical gears, offering enhanced torque transmission and efficiency. Ideal for right-angle gearboxes.
- Screw Gears: Used in low-power applications where minimal noise and precise movement are key.
- Herringbone Gears: Feature a V-shaped tooth design to eliminate axial thrust. Commonly used in high-torque applications like marine propulsion and heavy machinery.
- Hypoid Gears: A variation of spiral bevel gears that enables non-intersecting axis operation, ensuring smoother performance and greater torque transmission. Often used in industrial and automotive sectors.
- Internal Gears: Feature teeth cut on the inner surface of a cylinder. Frequently seen in planetary gear systems for high torque transmission.
Choosing the Right Gearbox to Suit Requirements
Different types of gearboxes meet different performance and operational requirements. Categories of gearboxes include:

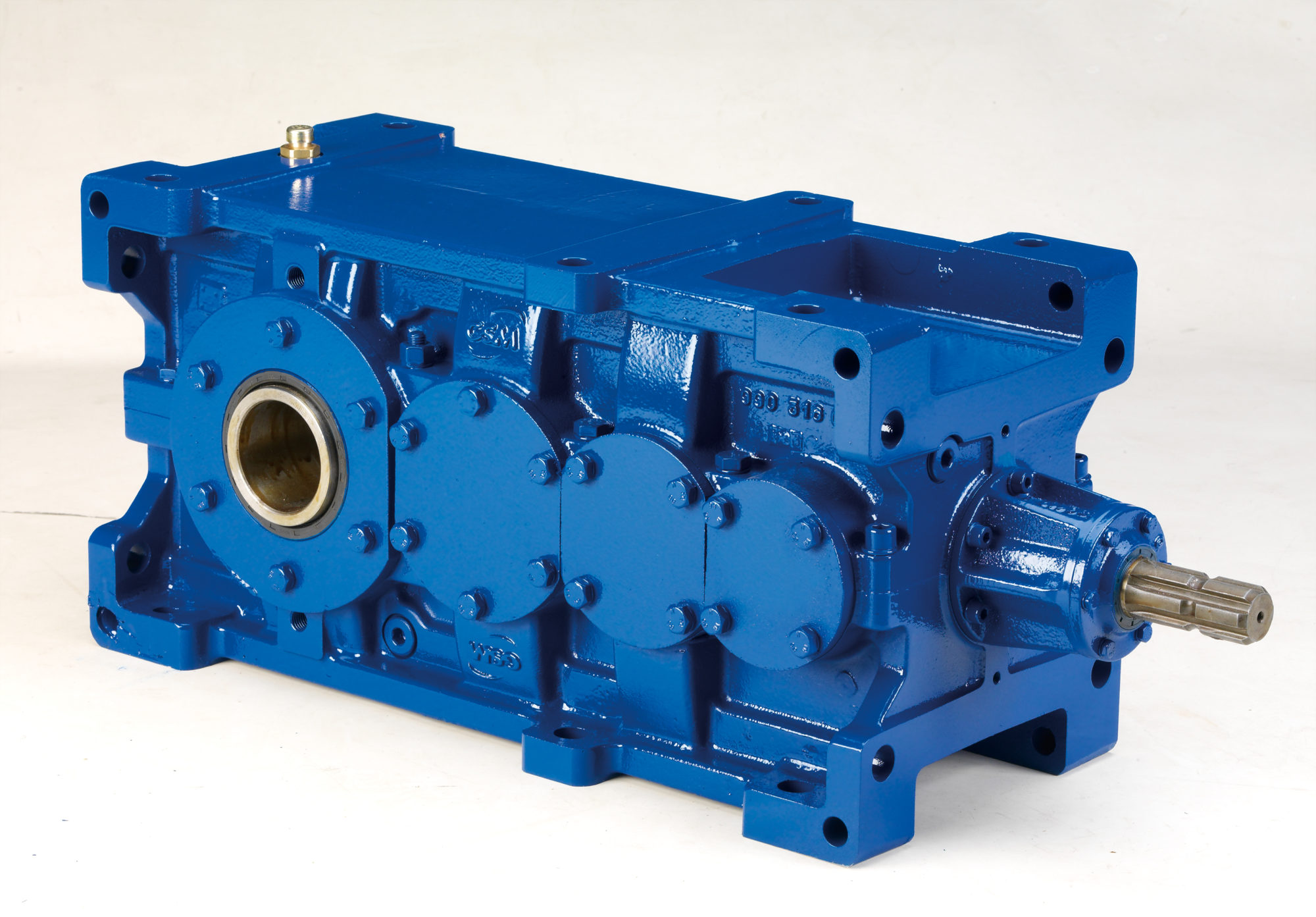

Industrial Gearboxes
Designed for high-load and heavy-duty applications such as mining, hoisting, mixers, and extrusion processes. Built to withstand harsh operating conditions across industries like manufacturing, construction, and energy.
- Engineered for high-load environments
- Offers a broad gear ratio range
- Common variants include helical, bevel, spur, planetary, and worm gearboxes
- Larger and heavier than standard gearboxes

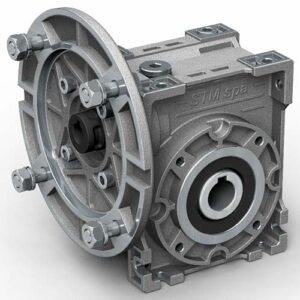

Worm Gearboxes
Employ a worm screw and gear setup. Excel in high torque and low-speed applications like conveyor systems and lifting mechanisms.
- Provides high torque with reduced speed
- Capable of achieving large gear ratios
- Compact and supports high-load capacities
- Ensures smooth and quiet operation

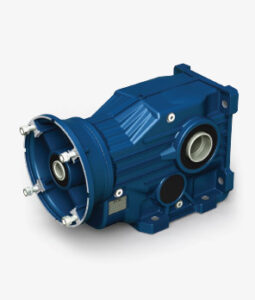

Helical Gearboxes
Widely used in demanding sectors such as construction, plastics, and cement industries due to their efficient and compact design.
- Lower energy consumption with a space-saving design
- Suitable for heavy-duty applications
- Helically-cut teeth provide smoother and quieter operation
- Frequently used in high-speed and high-power applications

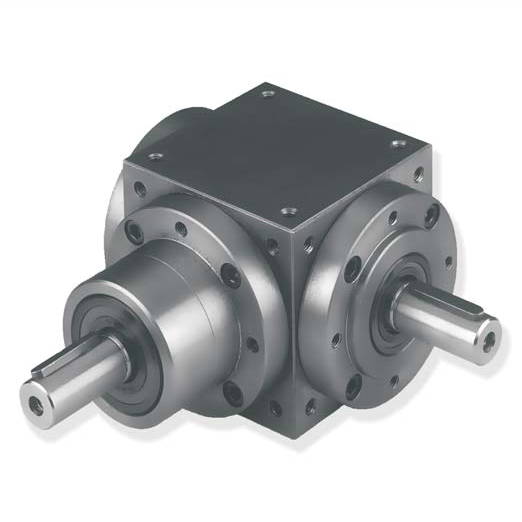

Bevel Gearboxes
Specialised for transferring power between non-parallel shafts. Integral to automotive differentials and industrial machinery.
- Facilitates power transfer at varying angles
- Available in straight, spiral, and hypoid configurations
- Hypoid bevel gears enhance torque transmission with smoother motion

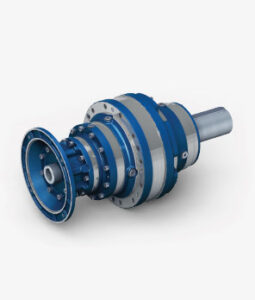

Planetary Gearboxes
A sun gear surrounded by multiple planetary gears provides exceptional torque density. Ideal for robotic, wind turbine, and heavy machinery applications.
- High precision and durability
- Frequently used in robotics and automation
- Compact design allows for multiple gear ratios
- Capable of delivering high torque in a compact package

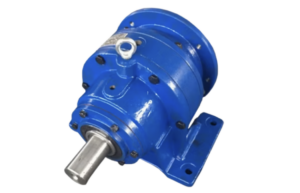

Cycloidal Gearboxes
A unique mechanism involving a cycloidal disc delivers high-precision motion control and power transmission.
- Designed for significant gear reduction with minimal backlash
- Commonly applied in robotics, printing presses, and material handling
- Offers superior torsional stiffness and shock resistance
- Ensures accurate positioning and high load-bearing capacity
Parallel Shaft Gearboxes
This configuration consists of multiple gears mounted on parallel shafts, enabling effective power and torque transmission.
- Handles higher torque loads compared to other designs
- Offers flexibility in speed adjustment
- Utilizes different gear types, including spur, helical, and herringbone
- Widely applied in demanding industrial environments
Choosing the Right Gearbox for Your Needs
Selecting the ideal gearbox depends on several factors, including application requirements, load capacity, space constraints, and efficiency goals. By understanding the various types and their specific advantages, industries can make informed decisions that enhance performance, reliability, and operational longevity.
Gearboxes vs. Geared Motors: Key Differences
Gearboxes can be confused with geared motors. While both gearboxes and geared motors serve similar functions, their differences lie in integration and flexibility:
- Gearboxes offer modularity, allowing users to pair them with different power sources for customised solutions.
- Geared Motors provide an all-in-one, space-saving alternative by integrating an electric motor with a gearbox. Ideal for applications demanding precise speed and torque control. Commonly found in consumer electrics, the automotive industry, and industrial automation.
