DM3 Front Drive Unit

Front-mounted drive unit designed for conveyor applications where compact drive integration and reliable traction are required. The DM3 Front Drive Unit offers multiple configuration options to suit different roller and transfer requirements.

OrientationDM3DDL (Left Hand), DM3DDR (Right Hand)

Choose your options

Add to wishlist

Add to compare

Pick each option, or choose from all sizes.

Goes with this

DM3 Gripper Idler End SKU: DM3IG400
View
DM3 Conveyor Beam SKU: DM3 CB 2.4
View
MM3 Plain Chain SKU: 107a220b969b
View
MM3 Insert Friction Chain SKU: 00d4227d3065
View

Not sure which one? Call 0800 147 847

Overview

The DM3 Front Drive Unit is designed to integrate directly at the front of a conveyor system, providing a compact and efficient drive solution.

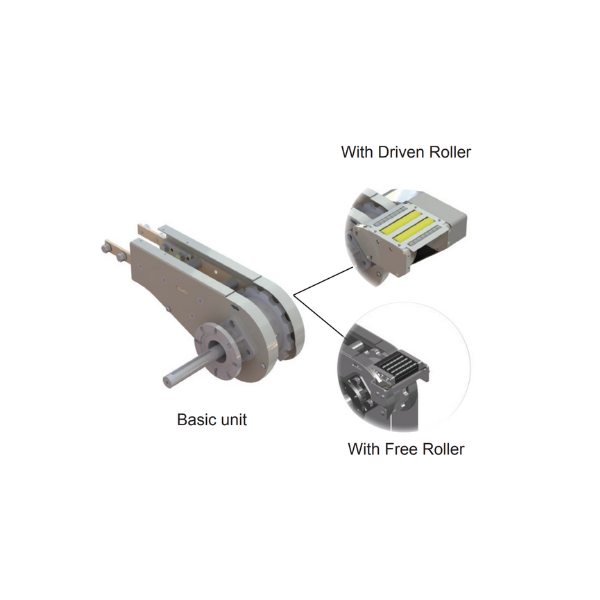

Available in multiple configurations, the DM3 series can be supplied as a basic drive unit, with a free roller, or with a driven roller to suit transfer and product handling requirements.

This unit is suitable for use in industrial conveyor systems where space efficiency and consistent drive performance are required.

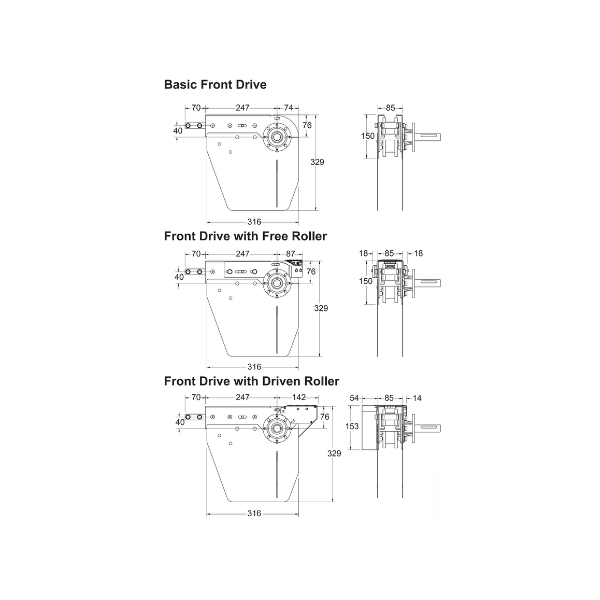

Available configurations

DM3 Front Basic Drive Unit
– Weight: 5.5 kg
– Supply: 1 unit

DM3 Front Drive with Free Roller
– With transfer roller
– Weight: 5.7 kg
– Supply: 1 unit

DM3 Front Drive with Driven Roller
– With driven roller
– Weight: 7.2 kg
– Supply: 1 unit

Specifications

Effective track length: 1.63 m
Traction force: 1000 N
Connecting strip and M8 hex screw included
Supplied without safety cover
Recommended maximum chain elongation: 328 mm
(measured from top of conveyor to chain slack)
