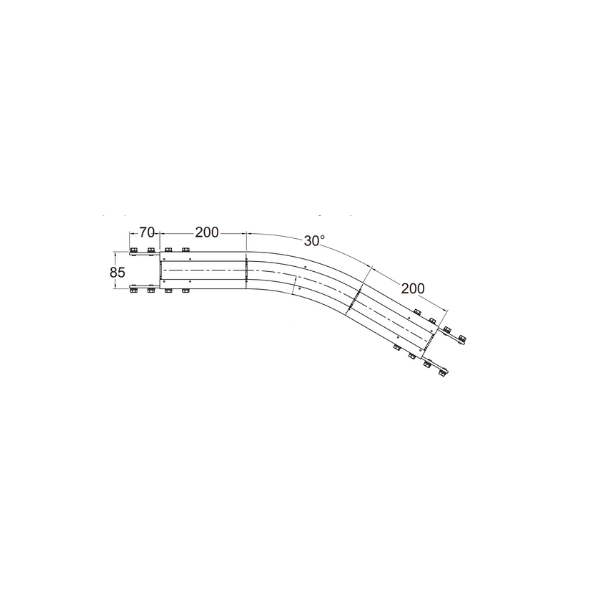

DM3 Horizontal Plain Bend 30 Degrees
Horizontal plain bend for DM3 conveyor systems, designed to allow smooth 30-degree direction changes while maintaining consistent track alignment and product flow.
- Radius500 mm, 700 mm, 1000 mm
SKU: d9814d7300af
Goes with this
- MM3 Plain Chain SKU: 107a220b969bView
- MM3 Insert Friction Chain SKU: 00d4227d3065View
- MM3 Molded Friction Chain SKU: MM3CF5PView
- MT2 Slide Rail - Anti-Static SKU: MS SR 25AView
Log in to see prices and add these to your cart.
Not sure which one? Call 0800 147 847
Overview
The DM3 Horizontal Plain Bend (30 Degrees) is designed to guide conveyor chains smoothly around corners while maintaining consistent performance and alignment.
Available in multiple radius options, this component allows flexibility in conveyor layout design and can be selected to suit different space constraints and track lengths.
The bend is supplied complete with a connecting strip and M8 hex screw for straightforward installation.
Effective track length
R500: 0.66 m (1-way) / 1.32 m (2-way)
R700: 0.77 m (1-way) / 1.54 m (2-way)
R1000: 0.92 m (1-way) / 1.84 m (2-way)
Specifications
30-degree horizontal plain bend
Tolerance: ±2 degrees
Radius tolerance: ±10 mm
Connecting strip and M8 hex screw included
| Radius | 500 mm, 700 mm, 1000 mm |
|---|
All sizes
Every size in this range (3)
| Radius | SKU | Choose |
|---|---|---|
| 1000 mm | DM3BP30R1000 | |
| 700 mm | DM3BP30R700 | |
| 500 mm | DM3BP30R500 |
