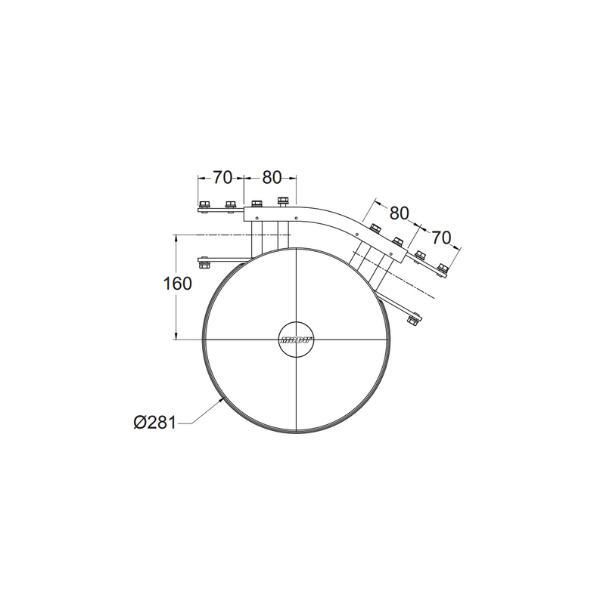

DM3 Wheel Bend 30 Degrees
Optimise your conveyor system layout with the DM3 Wheel Bend 30 Degrees, engineered for versatile material handling in confined spaces.
SKU: DM3 BW 30R160
Goes with this
- MM3 Plain Chain SKU: 107a220b969bView
- MM3 Insert Friction Chain SKU: 00d4227d3065View
- MM3 Molded Friction Chain SKU: MM3CF5PView
- MT2 Slide Rail - Anti-Static SKU: MS SR 25AView
Log in to see prices and add these to your cart.
Not sure which one? Call 0800 147 847
Overview
Optimise your conveyor system layout with the DM3 Wheel Bend 30 Degrees, engineered for versatile material handling in confined spaces.
Key Features:
- Effective track length: 0.24m 1-way (0.48m 2-way)
- Tolerance: ± 2 degrees
- Radius: ± 10mm
- Connecting strip and M8 hex screw included
- Weight: 3.6kg
- Supply: 1 unit
