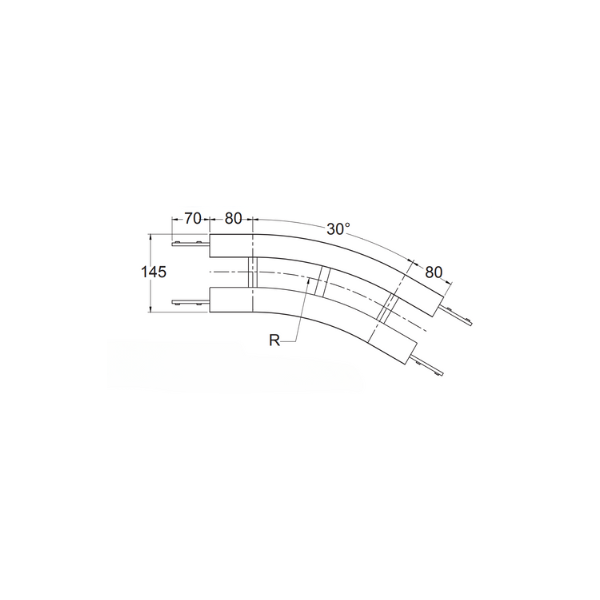

ML2 Horizontal Plain Bend 30 Degrees
Shipping calculated at checkout.
ntegrate precision and flexibility into your conveyor system with the ML2 Horizontal Plain Bend 30 Degrees. Tailored for efficient material handling around corners, this bend offers various effective track lengths.
Tolerance: ± 2 degrees & Radius: ± 10mm
Connecting strip and set screw included.
Effective Track Length:
- R500: 0.66m 1-way (1.32m 2-way)
- R700: 0.77m 1-way (1.54m 2-way)
- R1000: 0.92m 1-way (1.84m 2-way)
Variants:
- Horizontal Plain Bend 30 Degrees, 500mm
- Radius: 500mm
- Weight: 2.8kg
- Supply: 1 Unit
- Horizontal Plain Bend 30 Degrees, 700mm
- Radius: 700mm
- Weight: 3.3kg
- Supply: 1 Unit
- Horizontal Plain Bend 30 Degrees, 1000mm
- Radius: 1000mm
- Weight: 3.6kg
- Supply: 1 Unit
I
