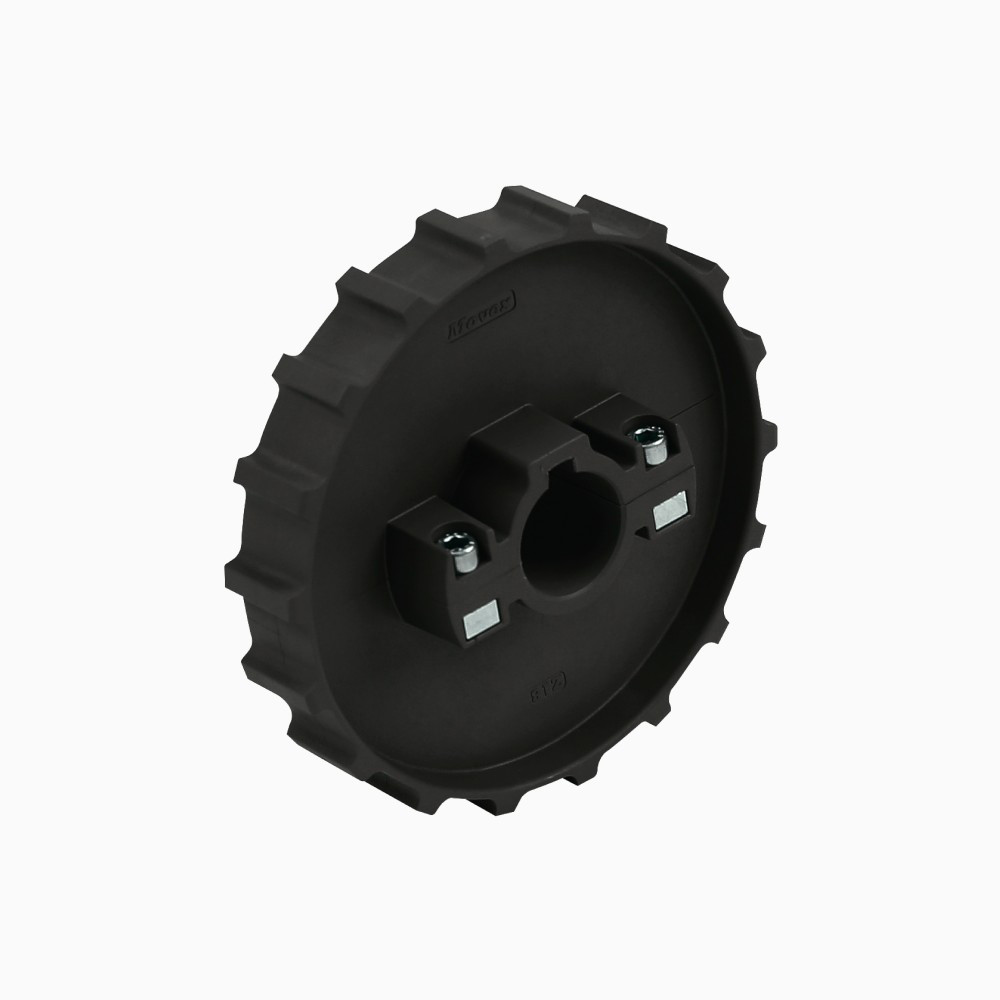

Movex Moulded Split Sprocket 550Z 16T 40mm
The Movex® 550Z Series molded split sprocket is designed for use with 550Z modular belt systems.
SKU: P152604
Not sure which one? Call 0800 147 847
Overview
The Movex® 550Z Series molded split sprocket is designed for use with 550Z modular belt systems.
Manufactured for durability and reliable engagement, this 16 tooth sprocket ensures consistent belt tracking and efficient power transmission.
The split design allows easy installation and removal without dismantling the shaft assembly, reducing maintenance time and downtime.
Key Features
- Series 550Z compatibility
- 16 tooth configuration

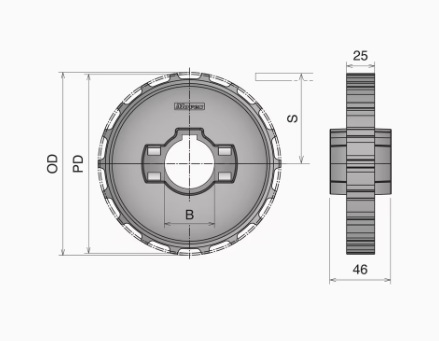

- 40mm shaft size with 11.5mm keyway
- Outer Diameter 130mm
- Pitch Diameter 130.2mm
- S Dimension 60.7mm
- Split construction for simplified installation
- Suitable for industrial conveyor applications
Specifications
| Shaft Type | Round, Square |
|---|
