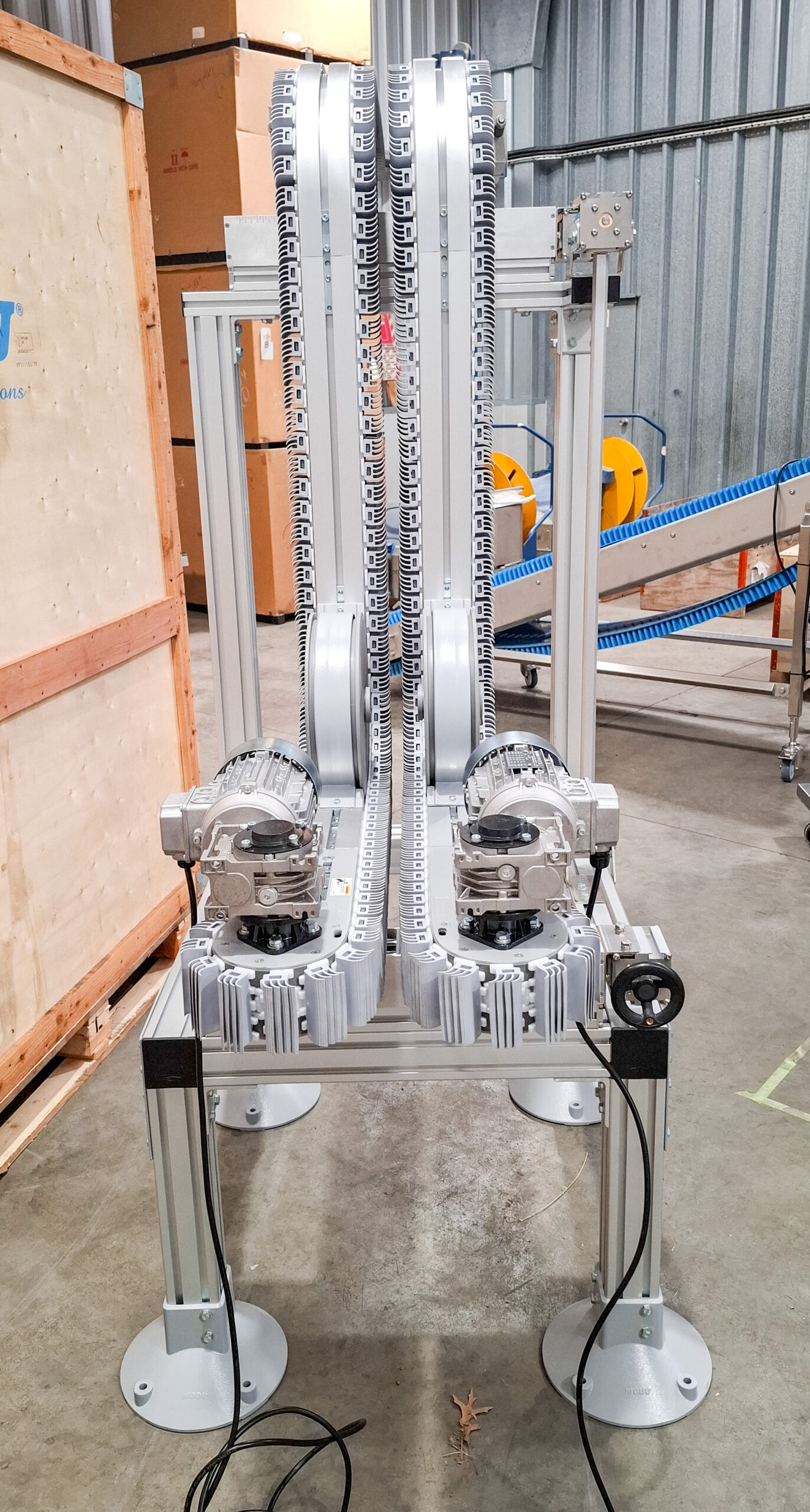

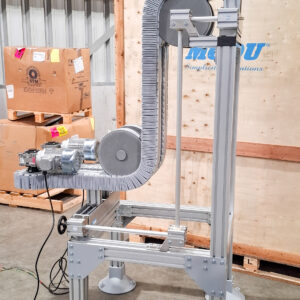

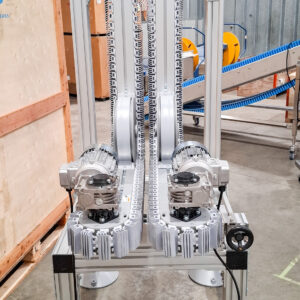

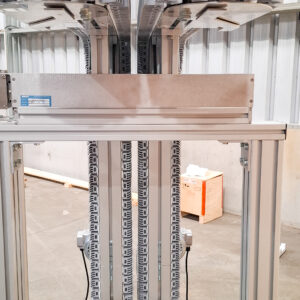

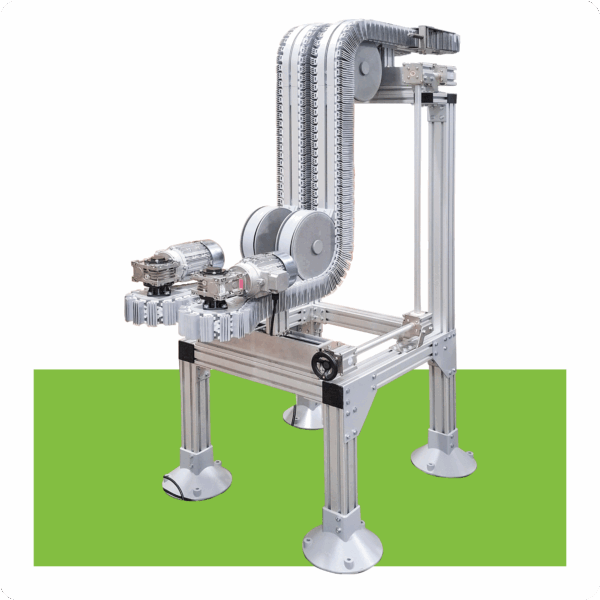

Modu Gripper Conveyor – Reliable Vertical Product Transfer
The Modu Gripper Conveyor is designed for gentle, controlled product handling on downward vertical paths. Its fully adjustable width and soft wiper wedge grippers make it ideal for transferring a wide range of containers and packets.
Downloads (1) Not sure which one? Call 0800 147 847
Overview
Key features
Specifications
Specifications:
- Start height: 1850 mm
- Finish height: 800 mm
- Drop distance: 1000 mm
- Frame: 80×80 mm alloy square Modu frame system
- Drive: Twin interconnected motors with Variable Speed Drives
- Adjustability: Rapid width changes via handwheel
- Modular design adaptable to many layouts
Applications
- Empty or filled bottles
- Small cartons and packaged goods
- Reliable descending transfers on production lines
- Inverting products for sterilisation of cap seals
Available now – Foodtech Packtech show demo pricing until end of October 2025
Videos
Downloads
PDFHave any questions?
Talk to the EQM team about sizing, fit or system design.
