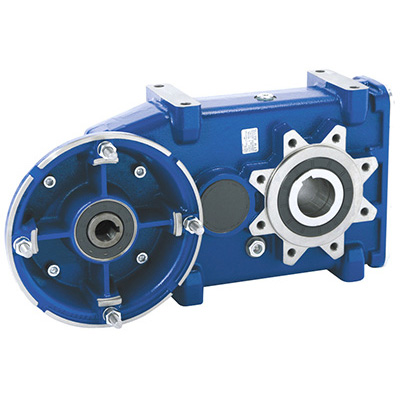

Shaft Mounted Helical Inline – PL Series
$0.00
Shipping calculated at checkout.
PL Series
- Sizes 25-135
- Ratio 17.2. 1-1101:1
- Hollow shafts 20-100mm
Why STM Hightech
- More efficient
- Large range of size and ratios
- Interchanges with other brands
- Standard IEC motor mounting
- Hardened gears for longer life
- Suited to medium to heavy workloads
- Hollow and solid outputs
- Quieter operation
- Runs cool
Suitable for
- Pumps and drives
- Medium to heavy duty conveyors
- Any range of food processing equipment
- Auger drives
- Heavy duty applications
- Drive rotary valves
| Size | Torque (Nm) | Shaft (mm) | Alternative Shaft (mm) |
|---|---|---|---|
| 25 | 100 | 20 | 19 / 24 |
| 45 | 250 | 30 | 25 |
| 65 | 600 | 35 | 30 |
| 85 | 1200 | 45 | 40 / 50 |
| 95 | 2400 | 55 | 50 / 60 |
| 105 | 3500 | 60 | 70 |
| 115 | 5000 | 70 | 80 |
| 125 | 7500 | 90 | - |
| 135 | 10500 | 100 | - |
STM SHAFT MOUNTED HELICAL INLINE - PL Series Specs
DOWNLOAD PDF (7.84 MB)Related products
