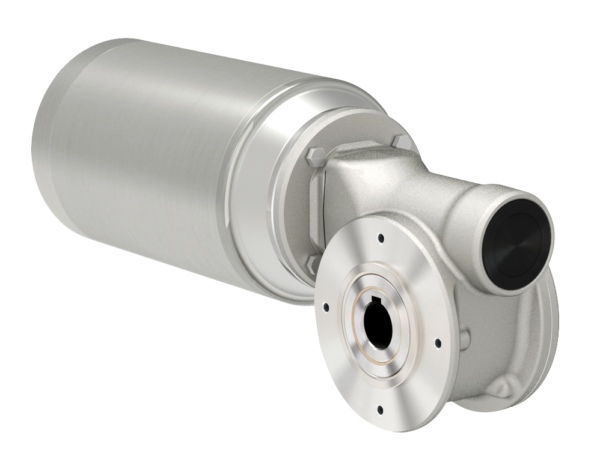

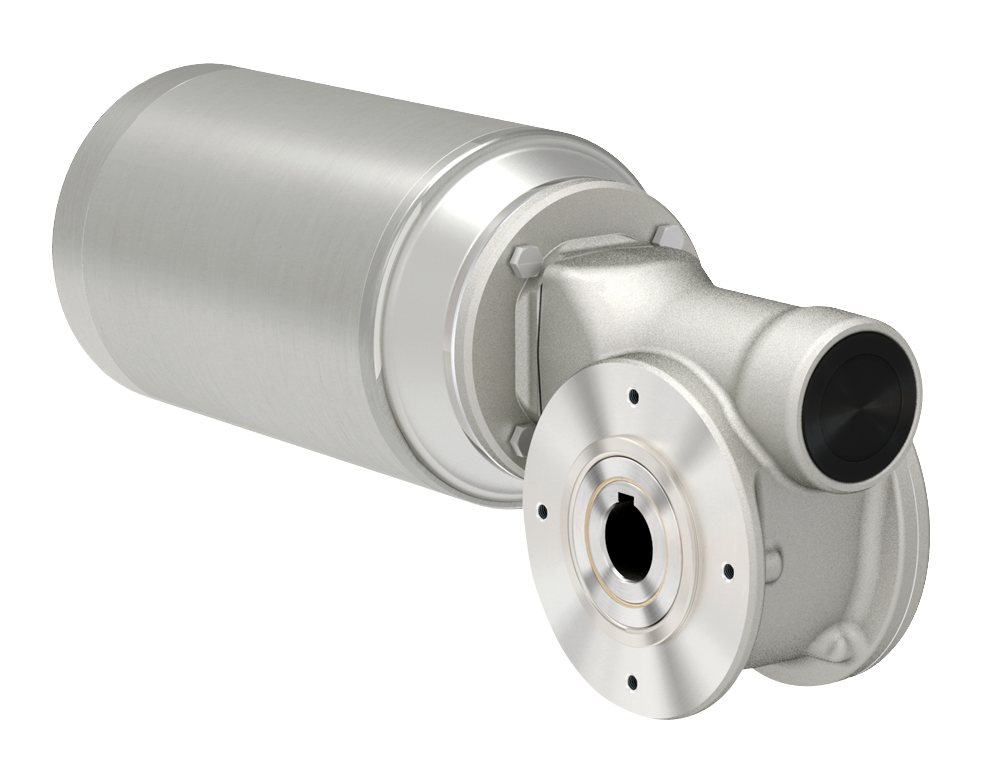

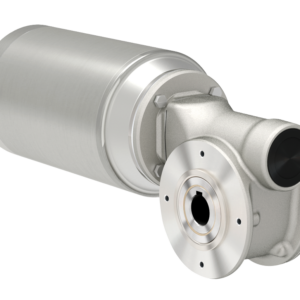

Clean-Geartech VFD-NTT Series Hygiene Aluminium Worm Gearboxes
Hygienic aluminium worm gearbox designed for food-grade environments with light washdown requirements. Featuring an NTT protective surface coating, stainless steel components, and smooth hygienic housing for improved corrosion resistance in sanitation-controlled areas.
- TypeZ30 56 B14, Z30 63 B14, Z45 63 B14 and 15 more
Goes with this
Log in to see prices and add these to your cart.
Downloads (1) Not sure which one? Call 0800 147 847
Overview
The Clean-Geartech VFD-NTT Series Hygienic Aluminium Worm Gearbox is the standard hygiene series, featuring an upgraded outer protective coating for improved resistance to corrosion in washdown environments.
Designed for light water washdown applications, the VFD-NTT Series offers enhanced durability compared to standard painted or unpainted aluminium worm gearboxes, making it suitable for food processing and hygiene-controlled production areas.
VFD-NTT Series Hygiene Aluminium Gearbox Applications
Best suited for applications requiring light water washdown without aggressive detergents. Ideal for basic sanitation procedures in food processing environments, including meat and poultry, fish and seafood processing, fruit and vegetables, dairy production, beverages, bakery applications, and marine use.
Suitable for food processing sectors
- Meat
- Poultry
- Dairy
- Seafood
- Pet food
- Confectionery
Specifications
Upgraded NTT protective surface coating

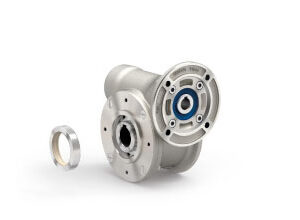

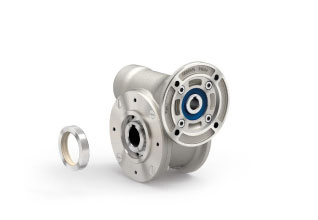

Leak-proof twin Viton seals with stainless steel shield

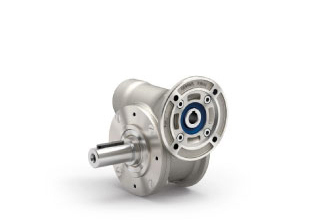

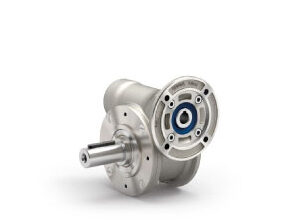

Hollow output shaft in AISI 316L stainless steel

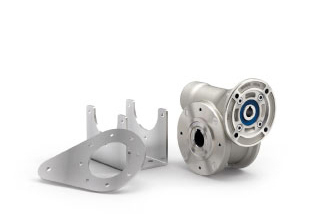

All stainless steel accessories
Smooth housing with hygienic surfaces
Designed for light washdown environments
| Type | Z30 56 B14, Z30 63 B14, Z45 63 B14, Z45 71 B14, Z50 D56 B14, Z50 D63 B14, Z50 D71 B14, Z50 D80 B14, Z50 (20mm HS) D56 B14, Z50 (20mm HS) D63 B14, Z50 (20mm HS) D71 B14, Z50 (20mm HS) D80 B14, Z63 71 B14, Z63 80 B14, Z63 90 B14, Z85 80 B14, Z85 90 B14, Z85 1000/112 B14 |
|---|
| Type | Torque (Nm) | Hollow shaft (mm) | Max kW Input |
|---|---|---|---|
| VFD 30 | 21 | 14mm | 0.09kW-0.18kW |
| VFD 45 | 41 | 18mm | 0.09kW-0.37kW |

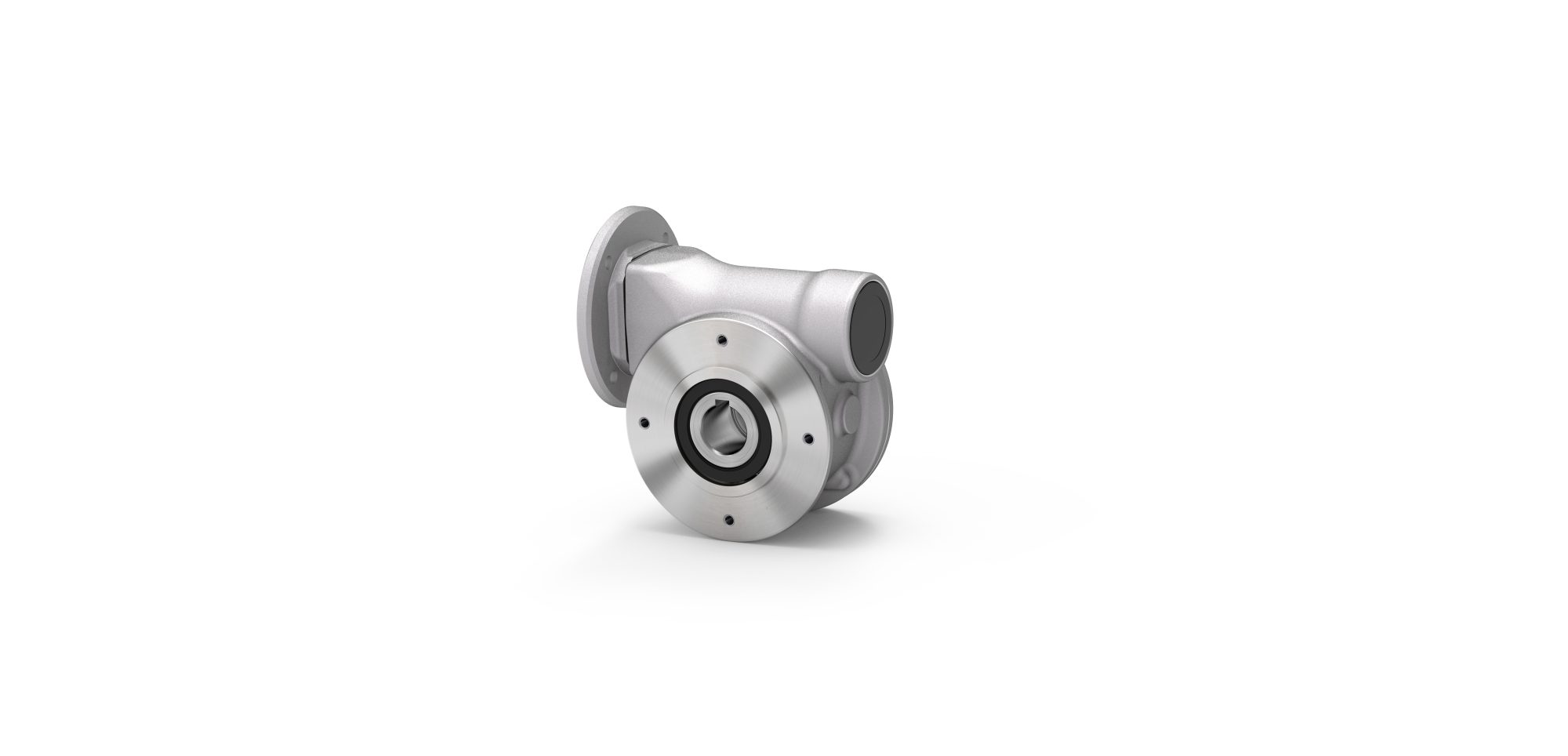

| VFD 50 | 72 | 20mm & 25mm | 0.12kW-0.75kW |
| VFD 63 | 147 | 25mm | 0.37kW-1.50kW |
| VFD 85 | 347 | 35mm (38mm on request) | 0.55kW-4.00kW |
All sizes
Every size in this range (18)
| Type | SKU | Choose |
|---|---|---|
| Z30 56 B14 | SSGKITZ3056B14 | |
| Z30 63 B14 | SSGKITZ3063B14 | |
| Z45 63 B14 | SSGKITZ4563B14 | |
| Z45 71 B14 | SSGKITZ4571B14 | |
| Z50 D56 B14 | SSGKITZ5056B14 | |
| Z50 D63 B14 | SSGKITZ5063B14 | |
| Z50 D71 B14 | SSGKITZ5071B14 | |
| Z50 D80 B14 | SSGKITZ5080B14 | |
| Z50 (20mm HS) D56 B14 | SSGKITZ5056B1420 | |
| Z50 (20mm HS) D63 B14 | SSGKITZ5063B1420 | |
| Z50 (20mm HS) D71 B14 | SSGKITZ5071B1420 | |
| Z50 (20mm HS) D80 B14 | SSGKITZ5080B1420 | |
| Z63 71 B14 | SSGKITZ6371B14 | |
| Z63 80 B14 | SSGKITZ6380B14 | |
| Z63 90 B14 | SSGKITZ6390B14 | |
| Z85 80 B14 | SSGKITZ8580B14 | |
| Z85 90 B14 | SSGKITZ8590B14 | |
| Z85 1000/112 B14 | SSGKITZ85B14 |
PDFHave any questions?
Talk to the EQM team about sizing, fit or system design.
