Fully Threaded Plastic Levelling Feet – HPA AS Fixing

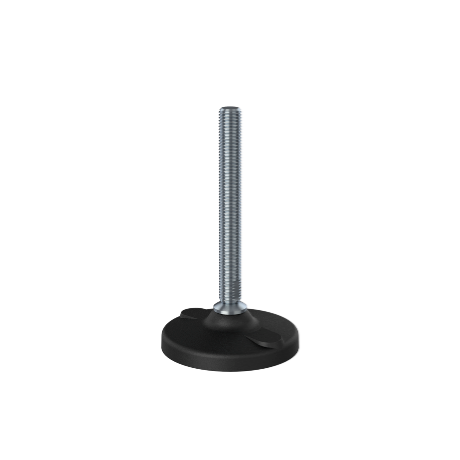

The HPA-FIX101AS-16-150 is a hygienic plastic levelling foot designed for low to medium weight machinery and equipment in production environments requiring stable and secure floor fixation.

SKU: EQMHHPA-101AS-16-150

Add to wishlist

Add to compare

Downloads (1) Not sure which one? Call 0800 147 847

Overview

HPA AS FIXING Series

Fully Threaded Plastic Levelling Foot

The HPA-FIX101AS-16-150 is a hygienic plastic levelling foot designed for low to medium weight machinery and equipment in production environments requiring stable and secure floor fixation.

Featuring a fully threaded M16 stainless steel spindle and 100mm diameter foot plate, this model provides reliable load support while maintaining hygienic, self-draining geometry suitable for washdown areas.

The integrated anti-slip rubber base improves floor grip and reduces vibration, while pre-pressed fixing holes allow secure installation to the floor.

Specifications

Foot plate diameter: 100mm
Thread size: M16
Thread length: 150mm
Fully threaded stainless steel spindle
Plastic foot plate with anti-slip rubber base
Floor fixing holes included
Suitable for hygienic production environments

Specifications

Item Code	Thread	A	B	C	Load Capacity (kg)
HPA-FIXAS081	M12/M16/M20	98	129	80Ø Foot	1000
HPA-FIXAS81	M12/M16/M20	140	174	80Ø Foot	1000
HPA-FIXAS101	M12/M16/M20	98	129	100Ø Foot	1500
HPA-FIXAS101	M12/M16/M20	140	174	100Ø Foot	1500
all sizes in mm	M24 & M30
	available upon request
