Stainless Steel Wall Mount Fans

Fan Diameter460mm 1phase to 810mm 3phase

Choose your options

Pick each option, or choose from all sizes.

Downloads (1) Not sure which one? Call 0800 147 847

Overview

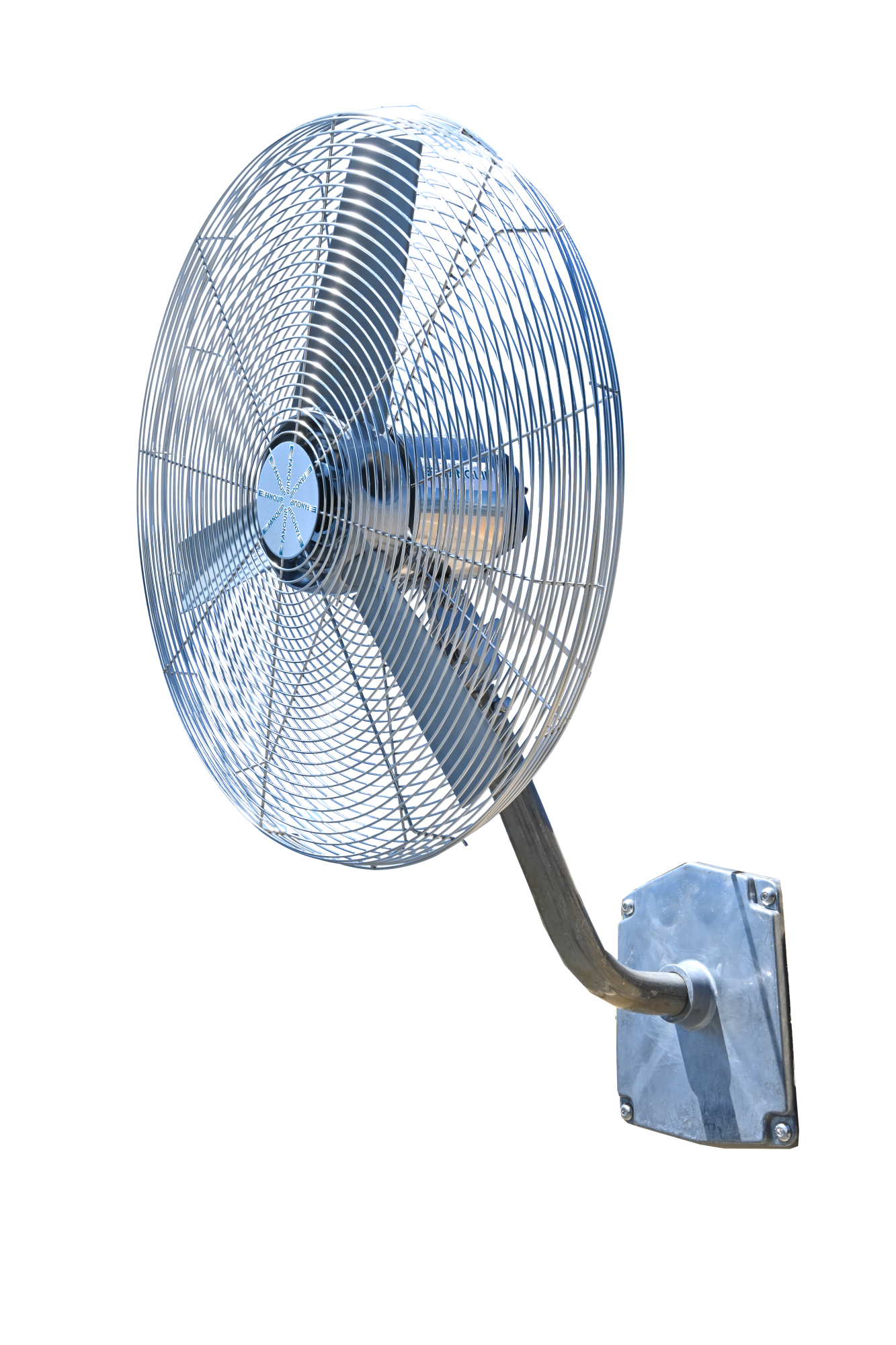

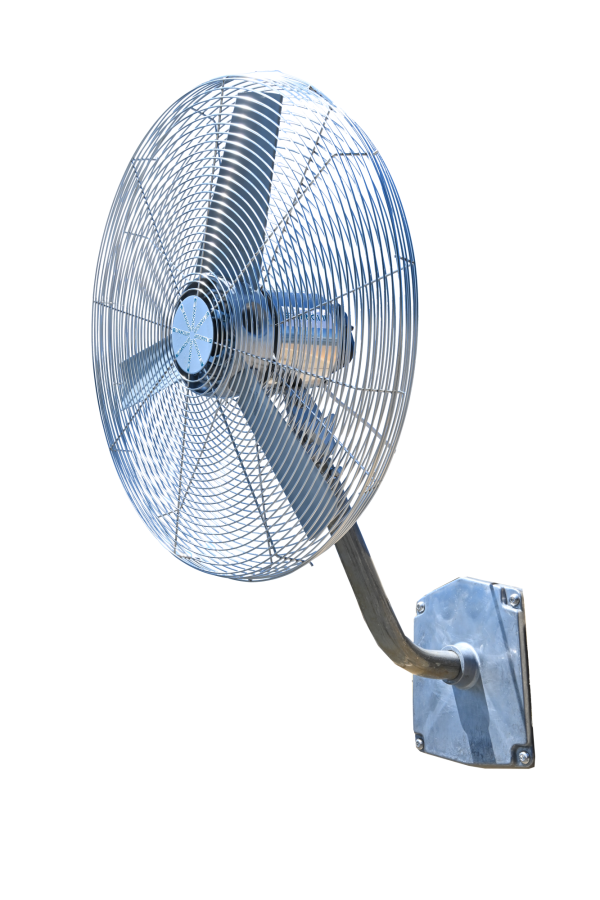

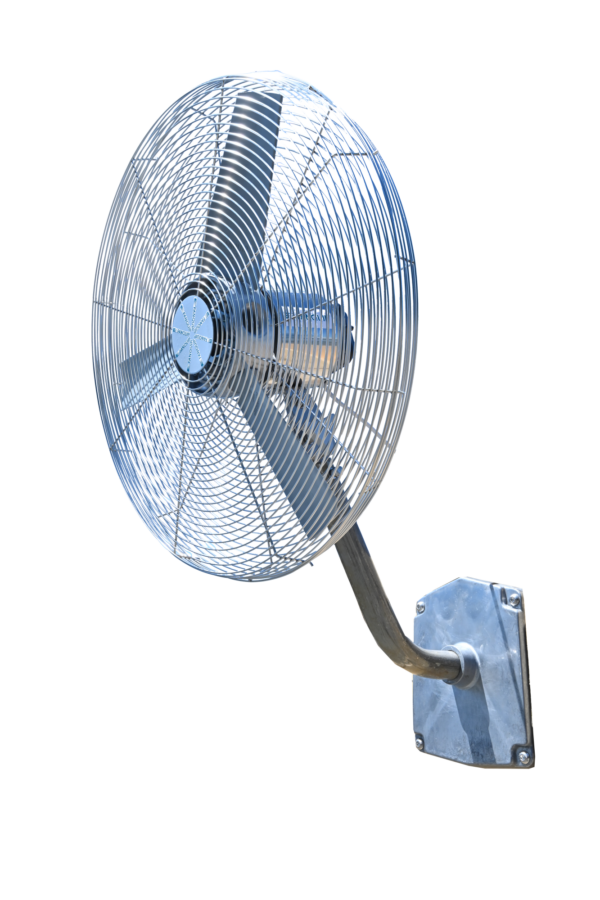

The Stainless Steel Wall Mount Air Circulator is a high-performance air circulator designed to provide large volumes of air movement to provide cooler and more comfortable working conditions in food processing and food preparation applications. Hose-proof IP56 rated and washdown duty suitable for wet and moist areas.

1 & 3 phase versions
IP56 & IP69k rating
2 speed motors (240V models only)
Fixed head design – tilt & height adjustable
GRP adjustable pitch blades
Washdown duty / hoseproof rating

Specifications

Fan Diameter	460mm 1phase, 630mm 1phase, 810mm 1phase, 460mm 3phase, 630mm 3phase, 810mm 3phase

Wall Mounted (mm)	A	C	G	H	J	O	V (max)	Weight (kg)
460	80	265	525	220	205	440	320	21
630	80	345	690	220	205	440	320	23
810	80	435	870	220	205	440	320	25
all sizes in mm
Performance Data
Fan Diameter	Motor Speed (r/s)	Motor Power (kw)	Noise dBA at 3m	Free Air Volume (L/s)
460	24	0.25	58	3000
630	24	0.25	60	6500
810	16	0.3	60	17000
