Hygienic 100mm Fixed Castor, No Brake, CS-100
$79.22
Shipping calculated at checkout.

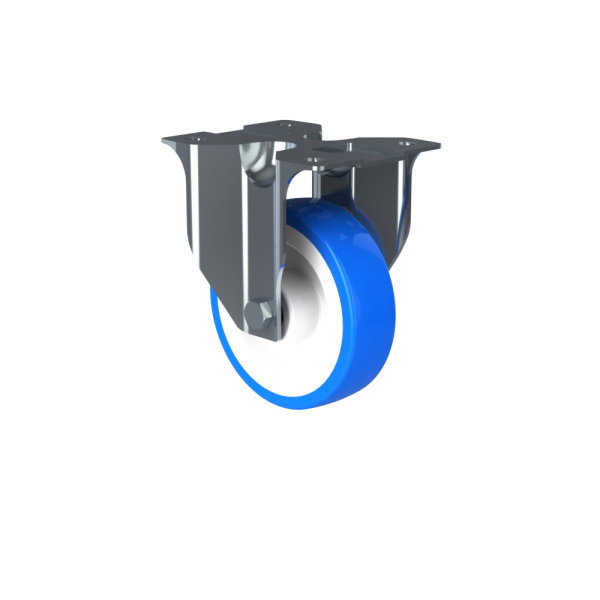

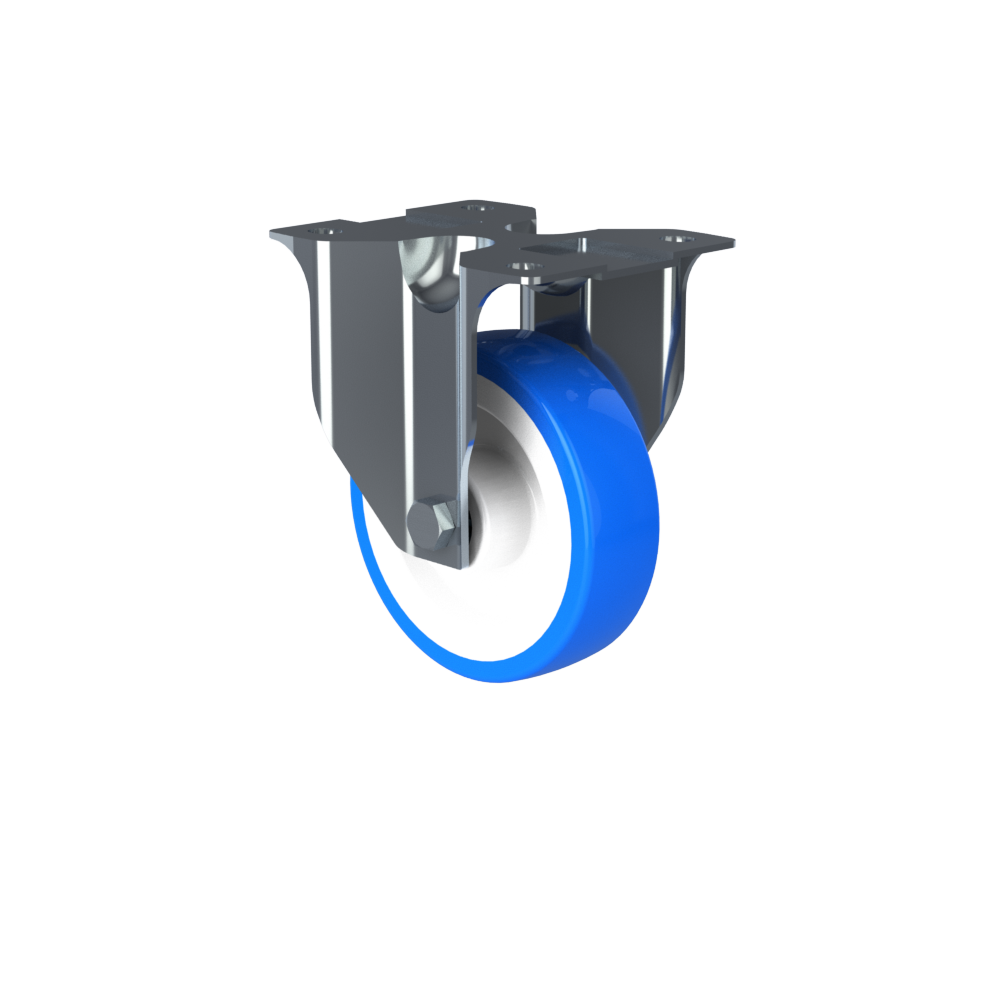

Stainless steel fixed castor designed for hygienic food, beverage and pharmaceutical environments where cleanability and corrosion resistance are essential.
The CS Series fixed castor provides straight-line movement only, making it ideal for controlled directional applications on processing equipment, trolleys and machinery.
- Fixed (non-swivel) design
- Plate-mounted fitting
- Load capacity up to 4,000 N
- Stainless steel construction
- NGI Global hygienic design
Other sizes and configurations available on request.
| Weight | 4 kg |
|---|
| Item Code | A | B | C | D | E | F | G | H | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| CS080 | 80 | 60 | 105 | 85 | 80Ø | 32 | 9 | 108 | 100 |
| CS100 | 80 | 60 | 105 | 85 | 100Ø | 32 | 9 | 128 | 150 |
| CS125 | 80 | 60 | 105 | 85 | 125Ø | 32 | 9 | 155 | 200 |
| CS125HD | 105 | 80 | 137 | 105 | 125Ø | 38 | 11 | 161 | 300 |
| CS160 | 105 | 80 | 137 | 105 | 160Ø | 40 | 11 | 200 | 350 |
| CS200 | 105 | 80 | 137 | 105 | 200Ø | 46 | 11 | 240 | 400 |
| all sizes in mm |
