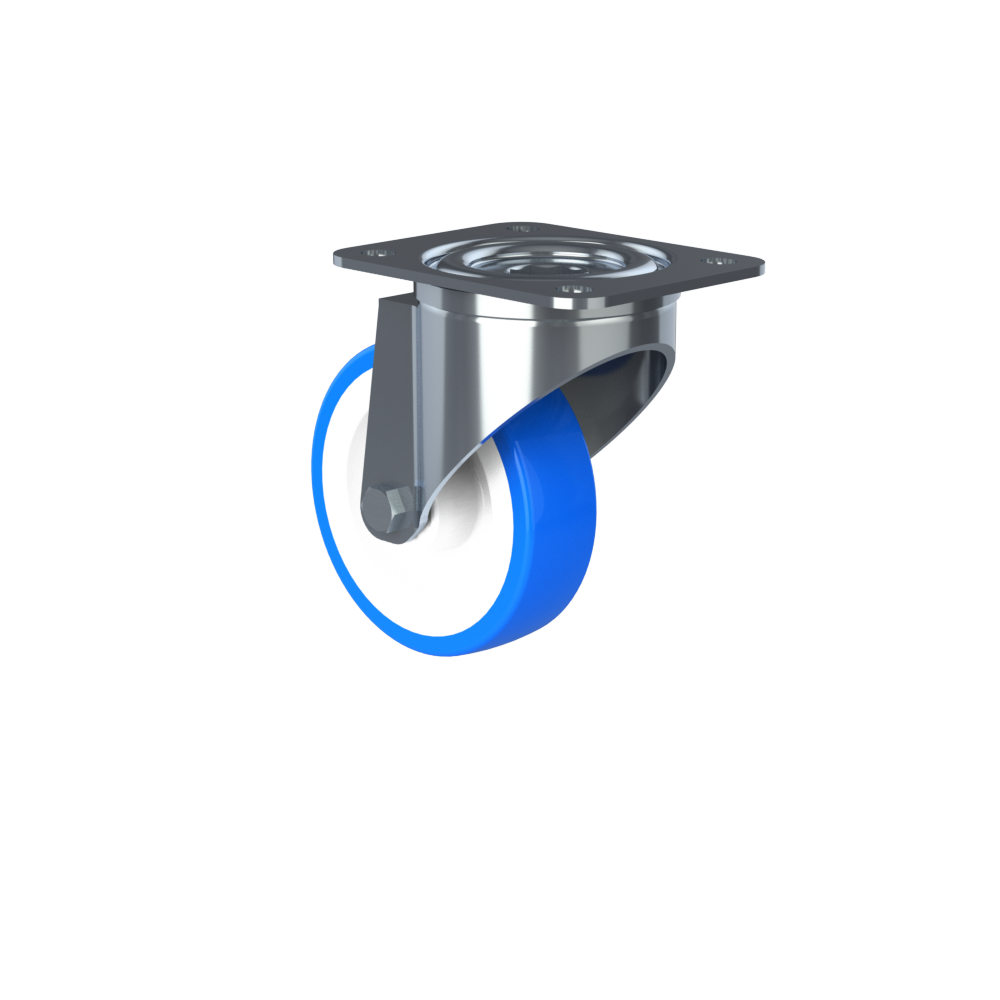

Plate Mount Stainless Industrial Castors – SCS
The SCS stainless swivel castors with a fixing plate is the optimal choice for machinery and equipment in diverse sanitary production environments.
Downloads (1) Not sure which one? Call 0800 147 847
Overview
Super Solid & Easy to Move Swivel Castors
SCS Series
The SCS stainless swivel castors with a fixing plate is the optimal choice for machinery and equipment in diverse sanitary production environments.
- Swivel castor with plate fitting
- Double ball bearing head
- Weight load up to 3,500 N
- NGI Global brand
Large range of sizes available on request
Specifications
| Item Code | A | B | C | D | E | F | G | H | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SCS080 | 80 | 60 | 105 | 85 | 80Ø | 32 | 9 | 108 | 100 |
| SCS100 | 80 | 60 | 105 | 85 | 100Ø | 32 | 9 | 128 | 150 |
| SCS125 | 80 | 60 | 105 | 85 | 125Ø | 32 | 9 | 155 | 200 |
| SCS125HD | 105 | 80 | 137 | 105 | 125Ø | 38 | 11 | 161 | 300 |
| SCS160 | 105 | 80 | 137 | 105 | 160Ø | 40 | 11 | 200 | 350 |
| all sizes in mm |
PDFHave any questions?
Talk to the EQM team about sizing, fit or system design.
