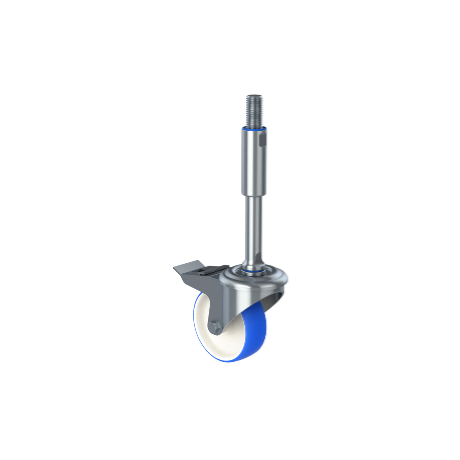

Hygienic Levelling Castors – SCRB-XH
$335.83
Shipping calculated at checkout.
SCRB-XH Series
Hygienic levelling swivel castors designed for sanitary production environments where cleanability, stability and corrosion resistance are essential.
Self-draining surfaces, sealed moving components and no exposed threads minimise contamination risk and simplify washdown procedures.
- Load capacity up to 1,500 N
- Hygienic levelling swivel castor
- Height adjustment range: 184 – 367 mm
- Integrated brake and swivel lock
- NGI Global hygienic design
Additional sizes and configurations available on request.
| Wheel Size | 100mm, 125mm |
|---|---|
| Spindle Type | M20 Sleeved, M20 Standard |

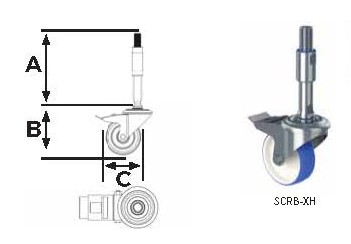

| Item Code | Thread | A | B | C | Load Capacity (kg) |
|---|---|---|---|---|---|
| SCRB080 | M20/M24/M30 | 150/210 | 108 | 80 | 560/400 |
| SCRB100 | M20/M24/M30 | 150/210 | 128 | 100 | 600/400 |
| SCRB125 | M20/M24/M30 | 150/210 | 155 | 125 | 960/1500 |
| SCRB160 | M24/M30 | 150/210 | 195 | 160 | 960/1500 |
| all sizes in mm | M36 available upon | ||||
| request |
Hygienic Levelling Castors - SCRB-XH
DOWNLOAD PDF (150.98 KB)Related products
