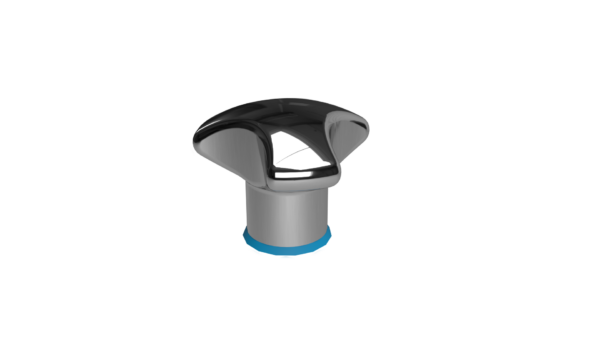

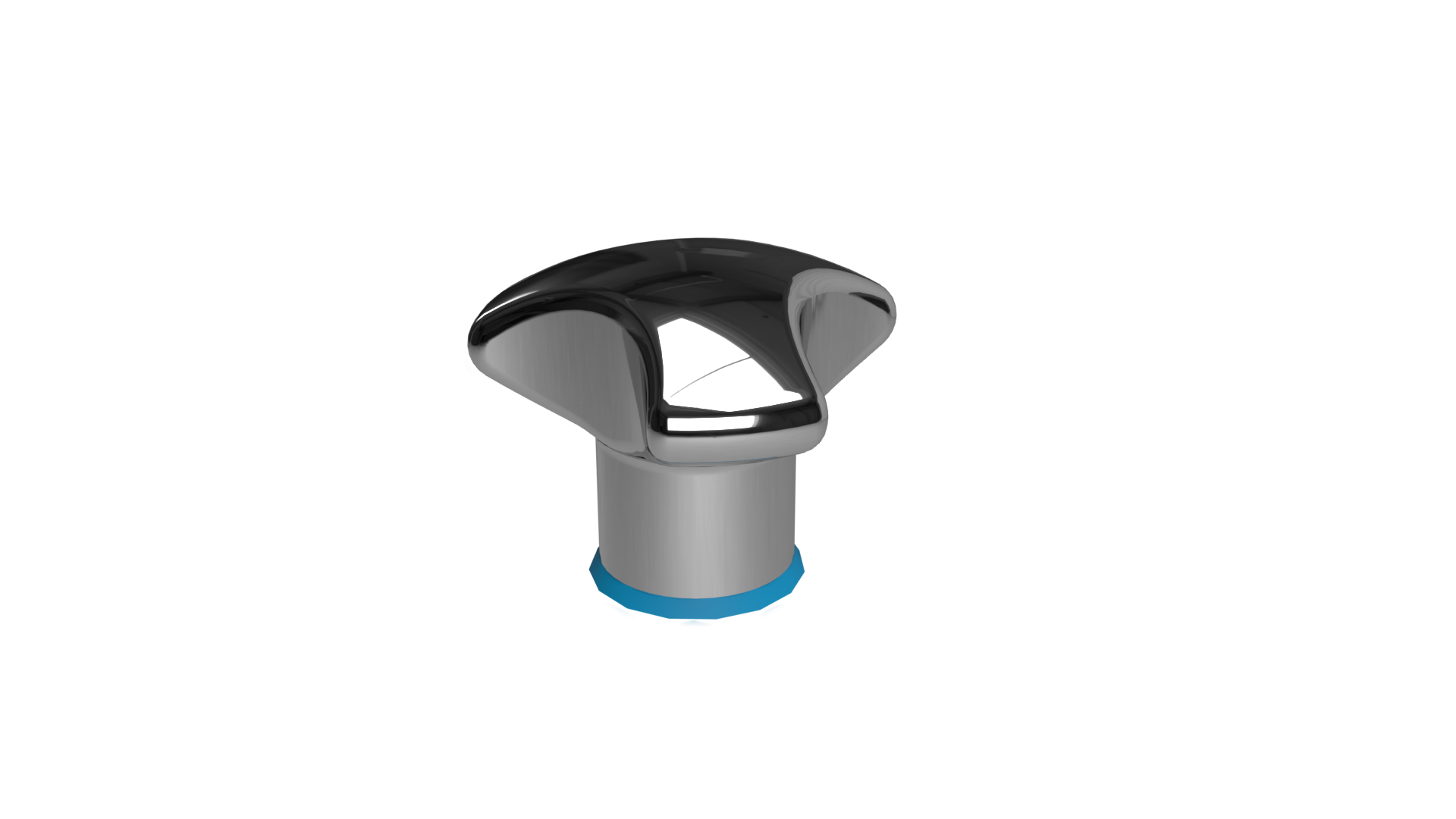

Stainless Steel Three Lobe Knobs
Stainless steel three-lobe knobs designed for use in hygiene-critical environments.
- Size40 mm – M6, 40 mm – M8, 50 mm – M8, 50 mm – M10
Downloads (1) Not sure which one? Call 0800 147 847
Overview
Stainless steel three-lobe knobs designed for use in hygiene-critical environments.
The DH301 Series features a sealed mounting surface and smooth, rounded geometry to minimise dirt build-up and support effective cleaning.
The DH301 Stainless Steel Three Lobe Knobs are intended for use in hygiene areas where frequent cleaning and secure fastening are required.
Manufactured from stainless steel with a high-quality surface finish, the DH301 range features sealed mounting surfaces, large corner radii, and closed surfaces to prevent the build-up of contaminants and eliminate dead spaces.
These three-lobe knobs are suitable for use on machinery, guards, access panels, and adjustment points in food processing and hygiene-controlled environments.
Specifications
Stainless steel construction for hygienic applications
Sealed mounting surface to prevent contamination
Smooth finish with large corner radii
Easy to clean and suitable for washdown areas
| Size | 40 mm – M6, 40 mm – M8, 50 mm – M8, 50 mm – M10 |
|---|

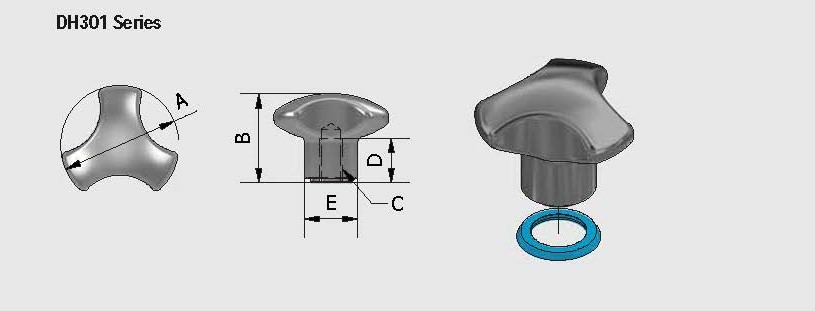

| Part Name | A | B | C | D | E |
|---|---|---|---|---|---|
| DH301 40-30-M8-F | 40 | 30 | M6 | 12 | 18 |
| DH301 40-30-M8-F | 40 | 30 | M8 | 15 | 18 |
| DH301 40-34-M8-F | 50 | 34 | M8 | 15 | 21 |
| DH301 50-34-M10-F | 50 | 34 | M10 | 18 | 21 |
| all sizes in mm |
All sizes
Every size in this range (4)
| Size | SKU | Choose |
|---|---|---|
| 40 mm – M6 | TMPDH301-40-30-M6-F | |
| 40 mm – M8 | TMPDH301-40-30-M8-F | |
| 50 mm – M8 | TMPDH301-50-34-M8-F | |
| 50 mm – M10 | TMPDH301-50-34-M10-F |
Downloads
PDFHave any questions?
Talk to the EQM team about sizing, fit or system design.
