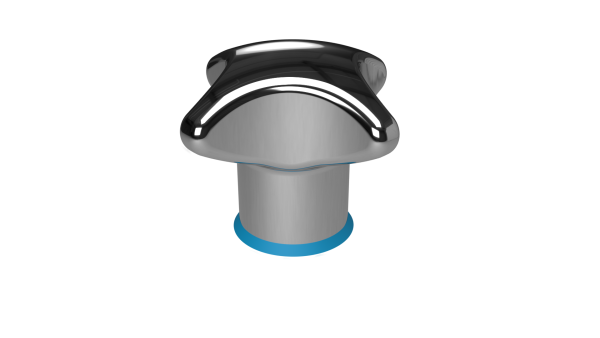

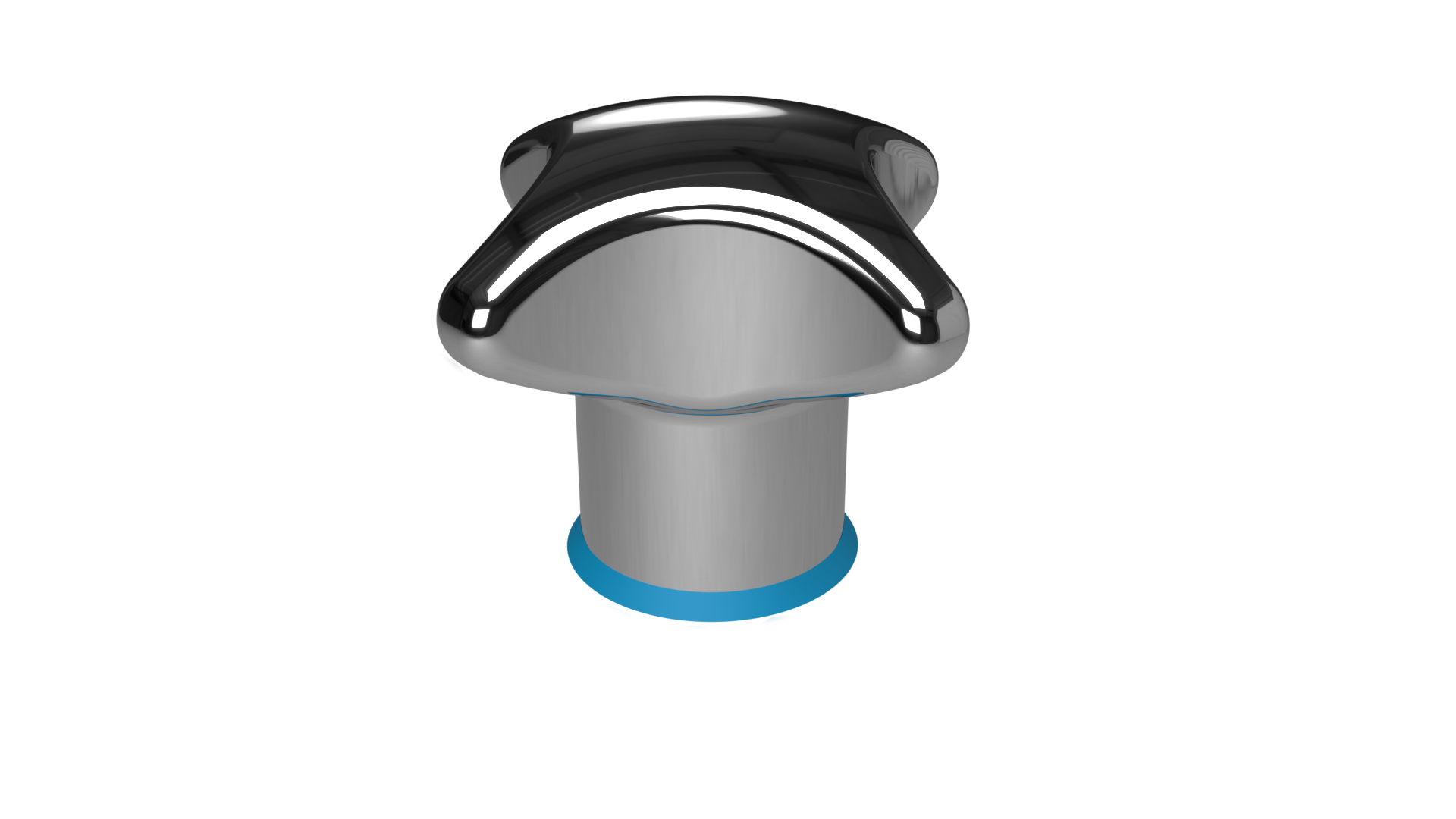

Stainless Steel Four Lobe Knobs
Stainless steel four-lobe knobs designed for use in hygiene-critical environments.
- Size40 mm – M6, 40 mm – M8, 50 mm – M8, 50 mm – M10
Downloads (1) Not sure which one? Call 0800 147 847
Overview
Stainless steel four-lobe knobs designed for use in hygiene-critical environments.
The DH302 Series features a sealed mounting surface and smooth, rounded geometry to minimise dirt build-up and support effective cleaning.
The DH302 Stainless Steel Four Lobe Knobs are intended for use in hygiene areas where frequent cleaning and secure fastening are required.
Manufactured from stainless steel with a high-quality surface finish, the DH302 range features sealed mounting surfaces, large corner radii, and closed surfaces to prevent the build-up of contaminants and eliminate dead spaces.
These four-lobe knobs are suitable for use on machinery, guards, access panels, and adjustment points in food processing and hygiene-controlled environments.
Specifications
Ultra Hygienic for Food Production Applications
| Size | 40 mm – M6, 40 mm – M8, 50 mm – M8, 50 mm – M10 |
|---|
| Part Name | A | B | C | D | E |
|---|---|---|---|---|---|
| DH302 40-30-M6-F | 40 | 30 | M6 | 12 | 18 |
| DH302 40-30-M8-F | 40 | 30 | M8 | 15 | 18 |
| DH302 50-34-M8-F | 50 | 34 | M8 | 15 | 21 |
| DH302 50-34-M10-F | 50 | 34 | M10 | 18 | 21 |
| all sizes in mm |
All sizes
Every size in this range (4)
| Size | SKU | Choose |
|---|---|---|
| 40 mm – M6 | TMPDH302-40-30-M6-F | |
| 40 mm – M8 | TMPDH302-40-30-M8-F | |
| 50 mm – M8 | TMPDH302-50-34-M8-F | |
| 50 mm – M10 | TMPDH302-50-34-M10-F |
Downloads
PDFHave any questions?
Talk to the EQM team about sizing, fit or system design.
