Hygienic Stainless Plate Mount Castors – SCSB
Price range: $174.21 through $174.61
Shipping calculated at checkout.

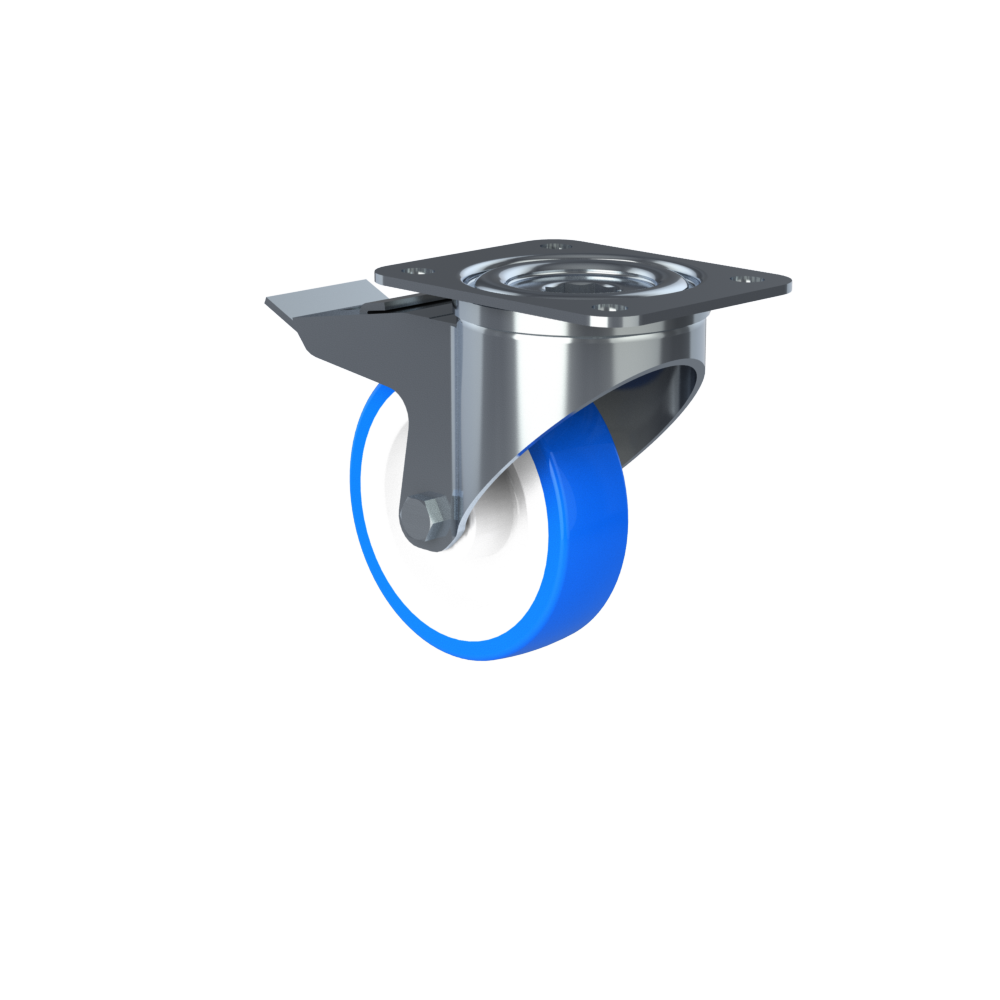

Hygienic Stainless Swivel Castors with Brake
Designed for hygienic production environments, these stainless steel swivel castors provide smooth movement with integrated braking for secure positioning.
Engineered for food, beverage and pharmaceutical facilities where corrosion resistance and cleanability are essential.
- Swivel castor with integrated brake (wheel and swivel lock)
- Stainless steel construction
- Suitable for washdown environments
- Available in plate mount or round mount configurations
- NGI hygienic design
Load capacity varies by size and configuration.
| Mounting Type | Plate Mount, Round Mount |
|---|---|
| Wheel Size | 80mm, 100mm |

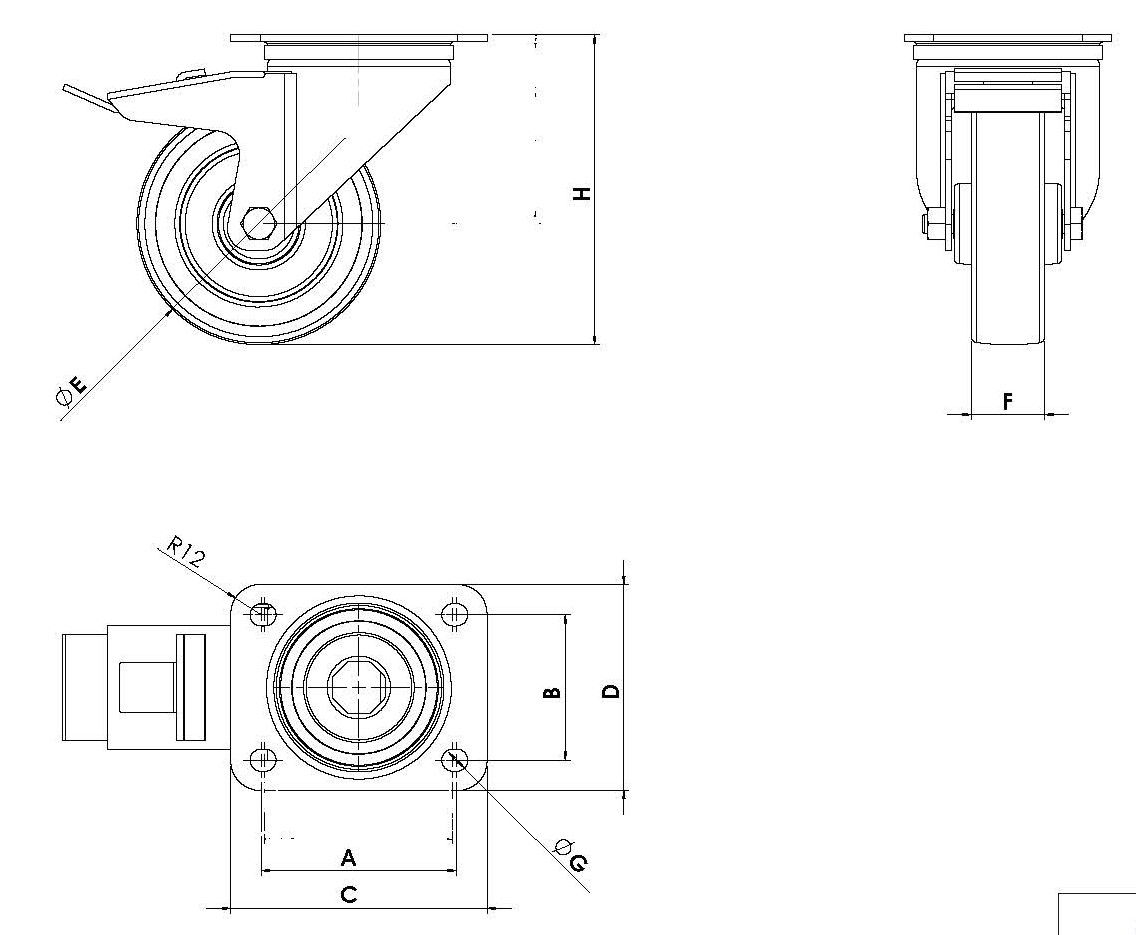

| Item Code | A | B | C | D | E | F | G | H | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SCSB080 | 80 | 60 | 105 | 85 | 80Ø | 32 | 9 | 108 | 150 |
| SCSB100 | 80 | 60 | 105 | 85 | 100Ø | 32 | 9 | 128 | 150 |
| SCSB125 | 80 | 60 | 105 | 85 | 125Ø | 32 | 9 | 155 | 150 |
| SCSB125HD | 105 | 80 | 137 | 105 | 125Ø | 38 | 11 | 161 | 300 |
| SCSB160 | 105 | 80 | 137 | 105 | 160Ø | 40 | 11 | 200 | 350 |
| SCSB200 | 105 | 80 | 137 | 105 | 200Ø | 46 | 11 | 240 | 400 |
| all sizes in mm |
Braked Hygienic Stainless Castors - SCSB
DOWNLOAD PDF (106.15 KB)Related products
