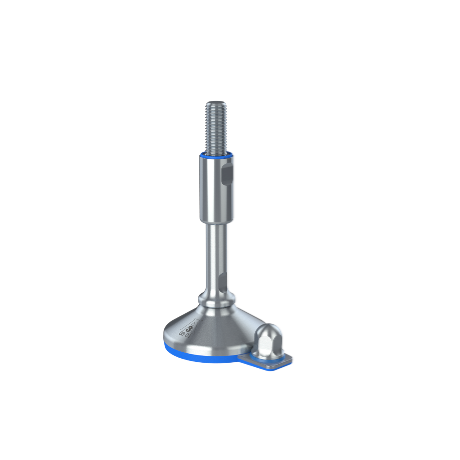

Certified Hygienic Levelling Feet – XH Fixing
The only levelling feet in the world hygienically certified by 3-A, EHEDG and USDA standards for use in sanitary production environments.
- Foot diameter65mm, 80mm, 105mm, 125mm
- Thread SizeM12, M16, M20 and 3 more
- Height150mm, 210mm
Downloads (1) Not sure which one? Call 0800 147 847
Overview
XH FIXING Series
The only levelling feet in the world hygienically certified by 3-A, EHEDG and USDA standards for use in sanitary production environments.
Self-draining surfaces, sealed movable parts and no exposed thread secures absolute minimum cleaning and maximum sanitary safety.
- Weight load up to 65.000 N
- Thread covered with hygienic sleeve functioning as counter nut
- Height variation 104 mm – 206 mm
- 3-A logo on footplate for certified recognition
- fixing to the floor
- NGI Global brand
Large range of sizes available on request (below table only a sample)
World Leading Levelling Feet for Sanitary Environments
Specifications
| Foot diameter | 65mm, 80mm, 105mm, 125mm, 150mm |
|---|---|
| Thread Size | M12, M16, M20, M24, M30, M36 |
| Height | 150mm, 210mm |
| Item Code | Thread | A | B | C | D | Load Capacity (kg) |
|---|---|---|---|---|---|---|
| XH-FIX066 | M12/M16/M20 | 150 | 178 | 65Ø Foot | 46.8 | 900 |
| XH-FIX081 | M16/M20 | 210 | 243 | 80Ø Foot | 53.2 | 1500 |
| XH-FIX106 | M16/M20 | 210 | 243 | 105Ø Foot | 70 | 2200 |
| XH-FIX126 | M16/M20 | 210 | 243 | 125Ø Foot | 80 | 3200 |
| all sizes in mm | M24, M30 & M36 | |||||
| available upon request |
All sizes
Every size in this range (14)
| Foot diameter | Thread Size | Height | SKU | Choose |
|---|---|---|---|---|
| 65mm | M12 | 150mm | EQMHXHFIX066-150-85-M12 | |
| 80mm | M12 | 150mm | EQMHXHFIX081-150-85-M12 | |
| 65mm | M16 | 150mm | EQMHXHFIX066-150-85-M16 | |
| 65mm | M16 | 210mm | EQMHXHFIX066-210-115-M16 | |
| 80mm | M16 | 150mm | EQMHXHFIX081-150-85-M16 | |
| 80mm | M16 | 210mm | EQMHXHFIX081-210-115-M16 | |
| 105mm | M16 | 150mm | EQMHXHFIX106-150-85-M16 | |
| 105mm | M16 | 210mm | EQMHXHFIX106-210-115-M16 | |
| 125mm | M16 | 150mm | EQMHXHFIX126-150-85-M16 | |
| 125mm | M16 | 210mm | EQMHXHFIX126-210-115-M16 | |
| 65mm | M20 | 150mm | EQMHXHFIX066-150-85-M20 | |
| 65mm | M20 | 210mm | EQMHXHFIX066-210-115-M20 | |
| 80mm | M20 | 150mm | EQMHXHFIX081-150-85-M20 | |
| 105mm | M20 | 150mm | EQMHXHFIX106-150-85-M20 |
PDFHave any questions?
Talk to the EQM team about sizing, fit or system design.
EQM Hygiene Hygienic Stainless Plate Mount Castors - SCSB
EQM Hygiene Hygienic 100mm Fixed Castor, No Brake, CS-100

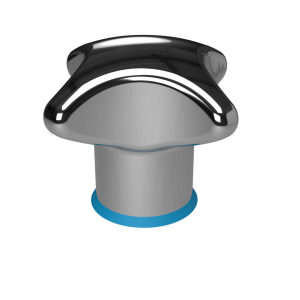

EQM Hygiene Stainless Steel Four Lobe Knobs
