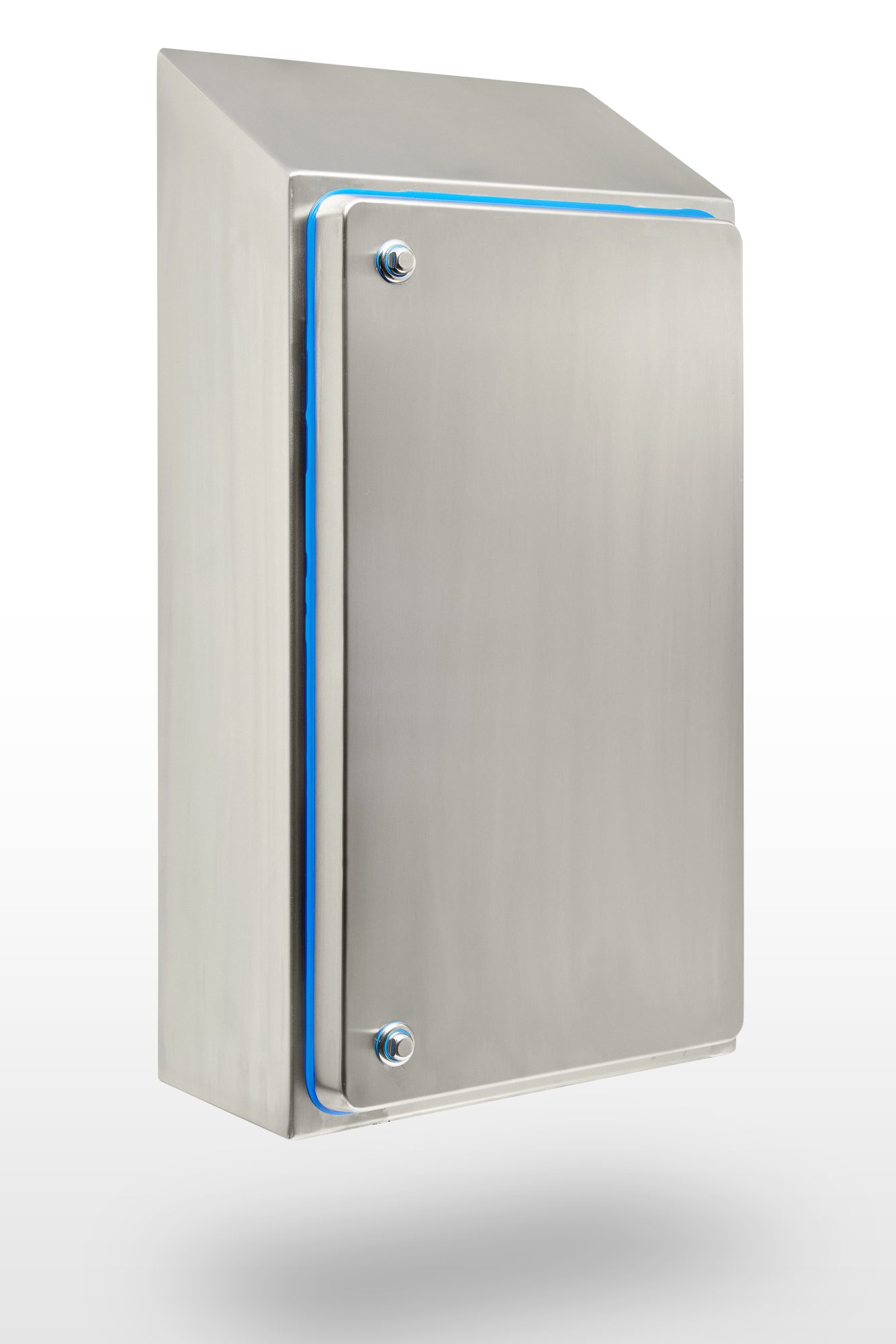

Stainless Steel Hygienic Electrical Enclosures
$0.00
Shipping calculated at checkout.
Ask about our large range of hygienic enclosures
IP69K hygienic food grade electrical enclosures are designed to prevent contamination and are suitable for the food and beverage, pharmaceutical and other industries that require high hygienic standards.
Material:
– Body: 1.5mm Grade 304 Stainless Steel
– Door: 1.5mm Grade 304 Stainless Steel
– Device Mounting Plate: Galvanised Steel Sheet
– Seal: Blue Silicone FDA compliant
Body: The robust monoblock body with 30°sloping roof is fabricated using 1.5mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.
Prevent Contamination in Food & Beverage Production
Door: The door is fabricated using 1.5mm Grade 304 Stainless Steel and includes specially cast internal hinges to allow for removal of the seals. The door is designed for a 115° opening with hinges on the right hand side.
Seal: Blue silicone seal, FDA compliant for food production areas.
Lock: IP69K Stainless Steel Hygiene lock with seal. Dirt resistant and easy to clean.
Device Mounting Plate: Fabricated using galvanised steel sheet. Supplied fitted.
Stainless Steel Hygienic Electrical Enclosures
