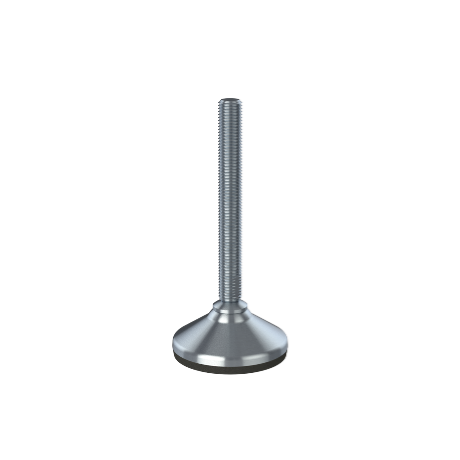

Hygienic Fully Threaded Levelling Feet – HX
The optimal fully-threaded choice for machinery and equipment in diverse production environments.
Downloads (1) Not sure which one? Call 0800 147 847
Overview
The Perfect Fully-threaded Choice in Threaded Levelling Feet
HX Series
The optimal fully-threaded choice for machinery and equipment in diverse production environments.
They offer value-for-money and are available in numerous varieties and functions.
Vulcanized FDA-approved, anti-vibration, anti-slip rubber blocks out bacteria underneath the footplate
- Weight load up to 70.000 N
- Hygienic-oriented design due to self-draining surfaces
- Admits up to 10° slope on floors and equipment

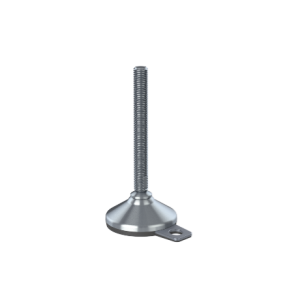

- Optional fixing to the floor
- NGI Global brand
Large range of sizes available on request (below table only a sample)
Specifications

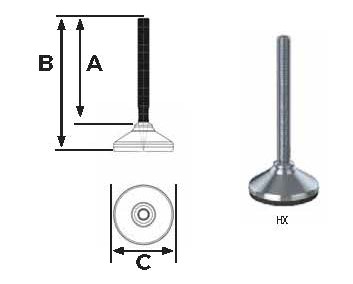

| Item Code | Thread | A | B | C | Load Capacity (kg) |
|---|---|---|---|---|---|
| HX065 | M12/M16/M20 | 70 | 109 | 65Ø Foot | 900 |
| HX080 | M12/M16/M20 | 97 | 136 | 80Ø Foot | 1500 |
| HX105 | M12/M16/M20 | 139 | 178 | 105Ø Foot | 2200 |
| HX125 | M12/M16/M20 | 172 | 211 | 125Ø Foot | 3200 |
| all sizes in mm | M24, M30, M36 & M42 | ||||
| available upon request |
