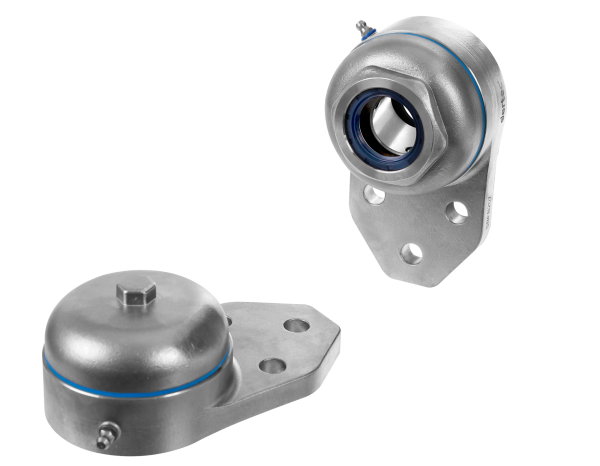

Stainless Steel FB 3 Bolt Flanged Units

Hygienic Stainless Steel Bearing Units Designed for hygienic and washdown environments with smooth, easy-to-clean surfaces and NSF H1 food-grade grease. Available with open or closed caps to suit your shaft layout and hygiene requirements.

Cap-TypeOpen Cap, Closed Cap
Shaft-Size20mm to 50mm

SKU: Stainless Steel FB 3 Bolt Flanged Units

Choose your options

Browse wishlist

Add to compare

Pick each option, or choose from all sizes.

Downloads (1) Not sure which one? Call 0800 147 847

Overview

Stainless Steel FB 3 Bolt Flanged Units are designed for hygienic applications where reliability, cleanability, and food-safety compliance are essential. The smooth housing has no sharp corners and all surfaces are angled to prevent product build-up, pooling, and bacterial contamination. The flat mounting surfaces are designed for use with EQM Hygiene Line stainless steel inserts, hygienic bolts, bonded seals, and NSF-approved food-grade grease.

The end cover includes a hygienic O-ring and seal to provide maximum protection against washdown and airborne contaminants. A rear seal adds additional defence against shaft-side contamination. End covers are available in both open and closed cap designs to suit your shaft layout and hygiene requirements.

Hygienic stainless steel housing and insert
Smooth, easy-to-clean exterior surfaces
Open or closed cap options
20–50 mm shaft sizes in 3-bolt flanged configuration
Lubricated with NSF H1 food-grade grease

WHAT DOES THIS MEAN FOR YOU?

- Extremely Hygienic for Food Production – prevention of microbial contamination during production and storage.

- Effective and Efficient cleaning processes– less strenuous to clean results in better cleaning and overall hygiene.

- Reduction in downtime – eliminate typical washdown failure, improve your efficiency and improve your bottom line.

- Reduction in replacement costs – the longevity of the parts is increased as stainless-steel is more hard-wearing, lasts longer and is a much better investment.

- Pass Food Safety Audits Easily and Reliably– What every auditor loves to see, the blue seal!

- Detectable Components – all non-metallic parts in easily-detectable blue colours.

Downloadable CAD Models below

Specifications

Cap-Type	Open Cap, Closed Cap
Shaft-Size	20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm

TYPE	SHAFT Ø	A	B	C	E	F	G	H	HV	J	L	N	S	Z
DH LASS SB FB CC 204	20	108	65	43.3	38.1	60.3	8	54.2	10	22	24	15	10	33
DH LASS SB FB CO 204	20	108	65	43.3	38.1	60.3	8	51.9	10	22	24	15	10	33
DH LASS SB FB CC 205	25	121	70	46	41.3	63.5	9.5	54.7	10	28.5	25	16	10	35.5
DH LASS SB FB CO 205	25	121	70	46	41.3	63.5	9.5	52.9	10	28.5	25	16	10	35.5
DH LASS SB FB CC 206	30	137	80	52.4	47.6	70	9.5	61	10	31.7	29	18	10	40
DH LASS SB FB CO 206	30	137	80	52.4	47.6	70	9.5	58.7	10	31.7	29	18	10	40
DH LASS SB FB CC 207	35	156	90	60.3	50.8	83	12.7	64.7	10	31.7	31	19	13	42.5
DH LASS SB FB CO 207	35	156	90	60.3	50.8	83	12.7	62.4	10	31.7	31	19	13	42.5
DH LASS SB FB CC 208	40	164	100	60.3	50	78	15.9	70	10	41.3	33	21	12	46
DH LASS SB FB CO 208	40	164	100	60.3	50	78	15.9	70.7	10	41.3	33	21	12	46
DH LASS SB FB CC 209	45	176	110	65	54	80	18.3	71.5	10	42.9	33	22	12	53.7
DH LASS SB FB CO 209	45	176	110	65	54	80	18.3	69.2	10	42.9	33	22	12	53.7
DH LASS SB FB CC 210	50	190	120	74.6	70	102	12.7	71	10	41.3	38	22	13	55
DH LASS SB FB CO 210	50	190	120	74.6	70	102	12.7	72.5	10	41.3	38	22	13	55
* All sizes in mm

All sizes

Every size in this range (14)

Cap-Type	Shaft-Size	SKU
Open Cap	20mm	TMPDHLASSSBFBCO204
Open Cap	25mm	TMPDHLASSSBFBCO205
Open Cap	30mm	TMPDHLASSSBFBCO206
Open Cap	35mm	TMPDHLASSSBFBCO207
Open Cap	40mm	TMPDHLASSSBFBCO208
Open Cap	45mm	TMPDHLASSSBFBCO209
Open Cap	50mm	TMPDHLASSSBFBCO210
Closed Cap	20mm	TMPDHLASSSBFBCC204
Closed Cap	25mm	TMPDHLASSSBFBCC205
Closed Cap	30mm	TMPDHLASSSBFBCC206
Closed Cap	35mm	TMPDHLASSSBFBCC207
Closed Cap	40mm	TMPDHLASSSBFBCC208
Closed Cap	45mm	TMPDHLASSSBFBCC209
Closed Cap	50mm	TMPDHLASSSBFBCC210
