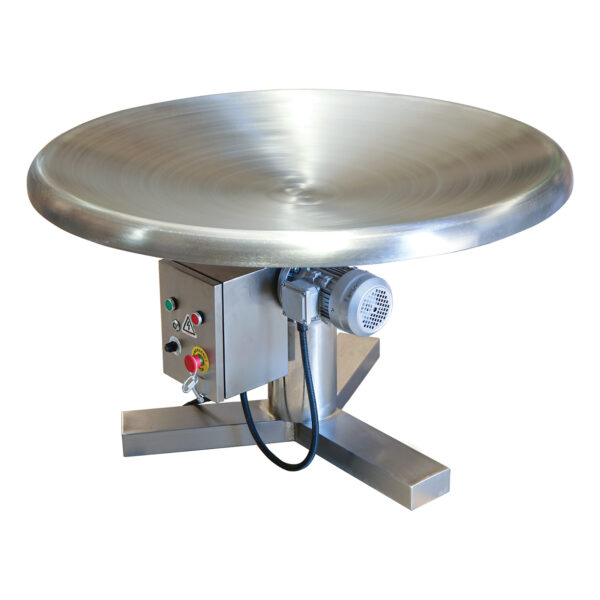

Concave Rotary Pack-Off Table
The EQM Concave Rotary Pack-Off Table is designed to manage controlled accumulation of flexible, non-standing products at the end of packaging lines.
SKU: RPOTSS1200-CC

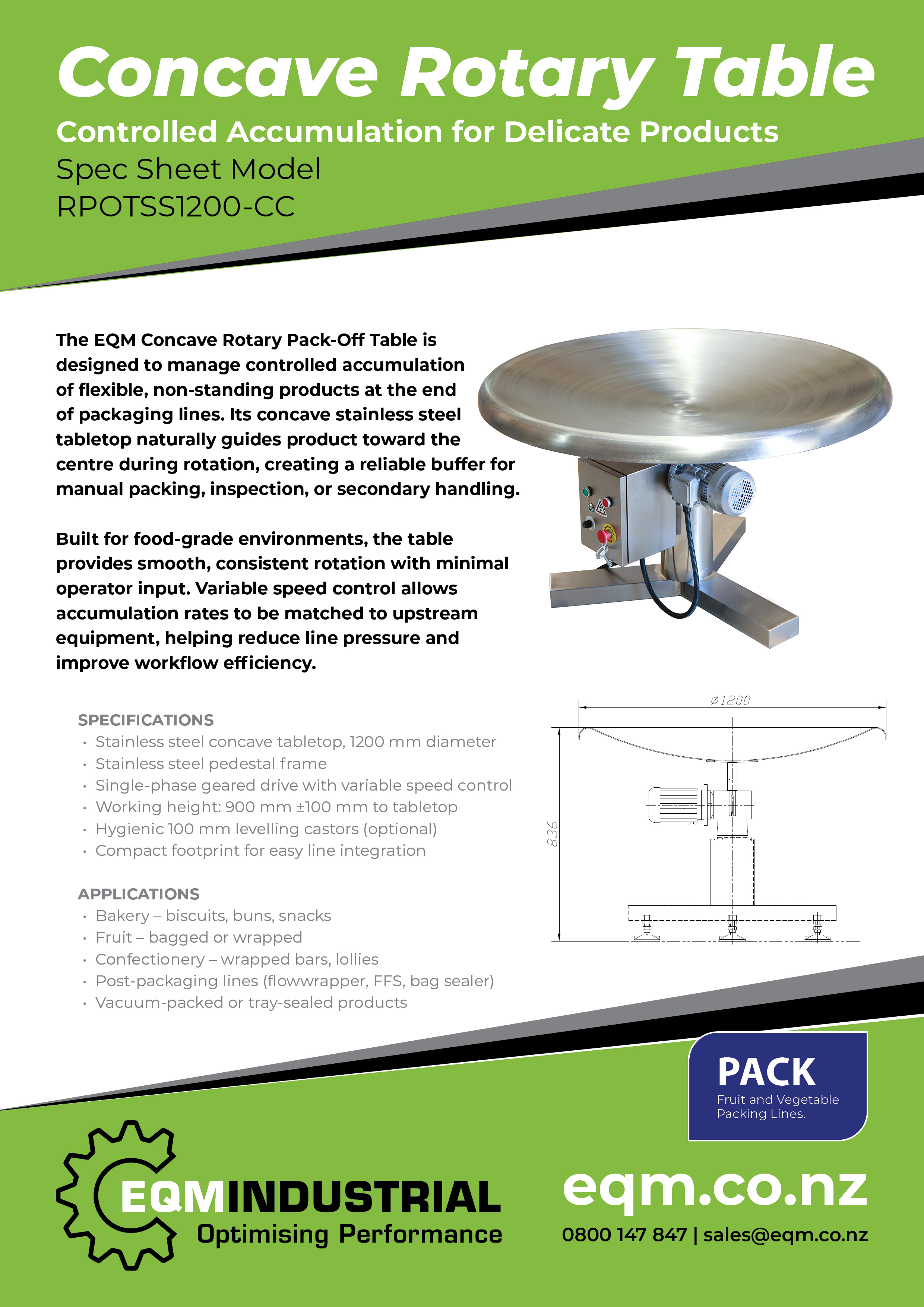

Downloads (1) Not sure which one? Call 0800 147 847
Overview
Controlled Accumulation for Delicate Products
The EQM Concave Rotary Pack-Off Table is designed to manage controlled accumulation of flexible, non-standing products at the end of packaging lines. Its concave stainless steel
tabletop naturally guides product toward the centre during rotation, creating a reliable buffer for manual packing, inspection, or secondary handling.
Built for food-grade environments, the table provides smooth, consistent rotation with minimal operator input. Variable speed control allows accumulation rates to be matched to upstream equipment, helping reduce line pressure and improve workflow efficiency.
Why Use a Concave Rotary Pack-Off Table?
Naturally directs product from the outer edge toward the centre
Helps prevent product build-up and spillage at the table edge
Creates controlled accumulation to relieve pressure on upstream equipment
Variable speed rotation to suit different line outputs
Suitable for flexible, non-standing and unstable packs
Hygienic stainless steel construction for food processing environments
Applications
Bakery – biscuits, buns, snacks
Fruit – bagged or wrapped products
Confectionery – wrapped bars, lollies
Post-packaging lines – flowwrapper, FFS, bag sealer
Vacuum-packed or tray-sealed products
Specifications
Stainless steel concave tabletop, 1200 mm diameter
Stainless steel pedestal frame
Single-phase geared drive with variable speed control
Working height: 900 mm ±100 mm to tabletop
Hygienic 100 mm levelling castors (optional)
Compact footprint for easy line integration
PDFHave any questions?
Talk to the EQM team about sizing, fit or system design.
