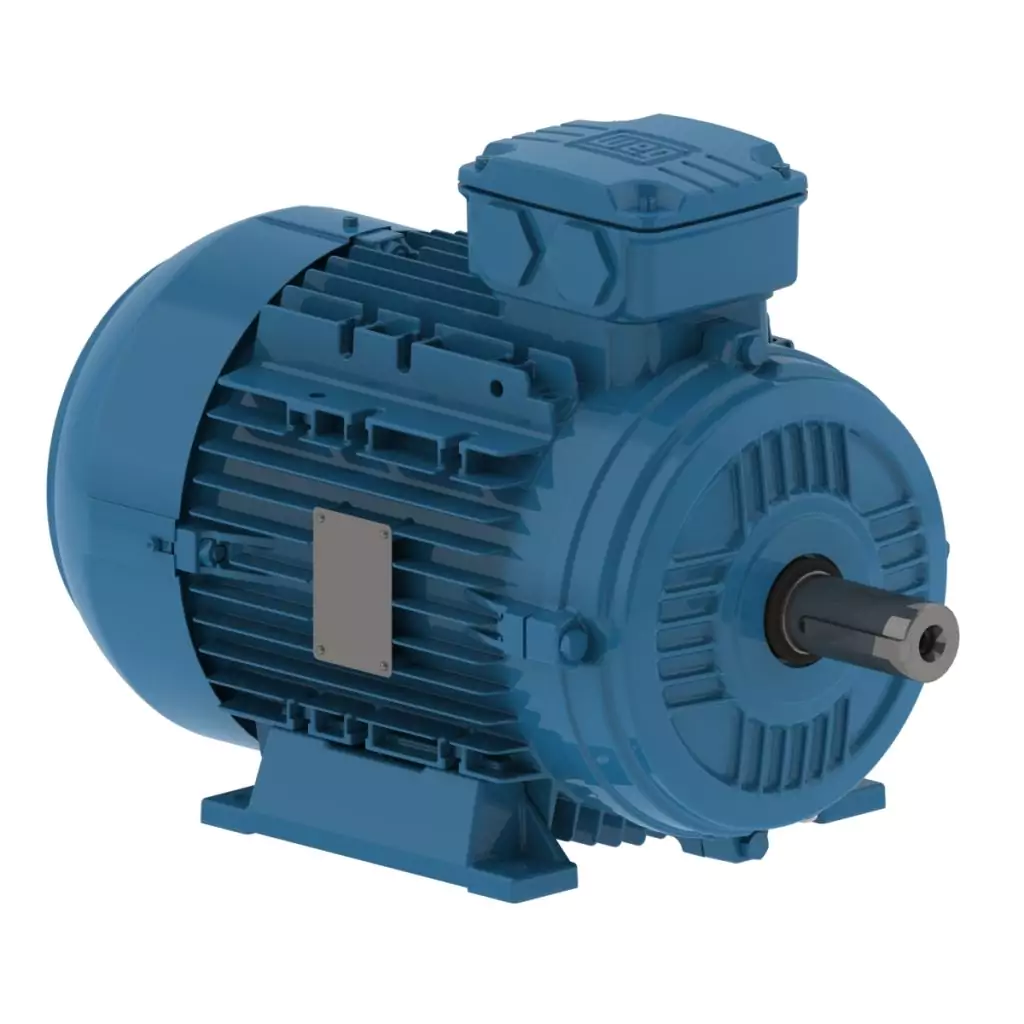

WEG W21 Aluminium Electric Motors

The WEG W21 Aluminium TEFC Motor is a lightweight, cost and energy efficient alternative to its Cast Iron, counterparts.

  • Kilowatt - kw0.75kw to 7.5kw
  • Speed - rpm2pole 2800rpm, 4pole 1400rpm, 6pole 950rpm
  • Frame SizeD80, D90, D100/112 and 2 more
  • Mounting OptionsB3 Foot Mount, B3/B14 Foot/Flange, B3/B5 Foot/Flange
Log in or create an account to see your price

Choose your options

Request a Quote

Pick each option, or choose from all sizes.

Not sure which one? Call 0800 147 847

Overview

WEG W21 Series

The WEG W21 Aluminium TEFC Motor is a lightweight, cost and energy efficient alternative to its Cast Iron, counterparts.

Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side.

Furthermore, WEG W21 Aluminium Electric Motors are totally interchangeable with the cast iron motors.

Benefits

  • Cost and Energy Efficiency
  • Lightweight and Compact
  • Durability and Corrosion Resistance
  • Low Noise and Vibration
  • Ease of Maintenance
  • Wide Range of Options
  • Environmental Friendly

Applications

  • Centrifugal machines
  • Conveyors
  • Cooling
  • Crushers
  • Elevators
  • Fans
  • Grinders
  • Machine tools
  • Milling applications
  • Packaging equipment
  • Presses
  • Pumps
  • Woodworking
  • Other severe duty applications

Specifications

Kilowatt - kw0.75kw, 1.1kw, 1.5kw, 2.2kw, 3.0kw, 4.0kw, 5.5kw, 7.5kw
Speed - rpm2pole 2800rpm, 4pole 1400rpm, 6pole 950rpm
Frame SizeD80, D90, D100/112, D132, D160
Mounting OptionsB3 Foot Mount, B3/B14 Foot/Flange, B3/B5 Foot/Flange

All sizes

Every size in this range (24)
Kilowatt - kwSpeed - rpmFrame SizeMounting OptionsSKUChoose
0.75kw2pole 2800rpmD80AnyMTA2000075
1.1kw2pole 2800rpmD80AnyMTA2000110
1.5kw2pole 2800rpmD90AnyMTA2000150
3.0kw2pole 2800rpmD100/112AnyMTA2000300
4.0kw2pole 2800rpmD100/112AnyMTA2000400
7.5kw2pole 2800rpmD132AnyMTA2000750
0.75kw6pole 950rpmD90AnyMTA6000075
1.5kw6pole 950rpmD100/112AnyMTA6000150
2.2kw6pole 950rpmD100/112AnyMTA6000220
3.0kw6pole 950rpmD132AnyMTA6000300
4.0kw6pole 950rpmD132AnyMTA6000400
5.5kw6pole 950rpmD132AnyMTA6000550
7.5kw6pole 950rpmD160AnyMTA6000750
0.75kw4pole 1400rpmD80AnyMTA4000070
1.1kw4pole 1400rpmD90AnyMTA4000110
2.2kw2pole 2800rpmD90AnyMTMGE1038
5.5kw2pole 2800rpmD132AnyMTIMGE1051
1.1kw6pole 950rpmD90AnyMTA6000110
1.5kw4pole 1400rpmD90AnyMTA4000150
2.2kw4pole 1400rpmD100/112AnyMTA4000220
3.0kw4pole 1400rpmD100/112AnyMTA4000300
4.0kw4pole 1400rpmD100/112AnyMTM34004004
5.5kw4pole 1400rpmD132AnyMTM34005504
7.5kw4pole 1400rpmD132AnyMTM34007504
