Bevel Helical
Bevel helical gearboxes in sizes 63 to 190, with hollow shafts from 25mm to 80mm and standard IEC motor mounting.
Key features
- Sizes 63-190
- Large Ratio range
- Hollow shafts 25-80mm
Why STM Hightech
- More efficient
- Large range of size and ratios
- Interchanges with other brands
- Standard IEC motor mounting
- Hardened gears for longer life
- Suited to medium to heavy workloads
- Hollow and solid outputs
- Quieter operation
- Runs cool
Suitable for
- Pumps and drives
- Medium to heavy duty conveyors
- Any range of food processing equipment
- Auger drives
- Heavy duty applications
- Drive rotary valves

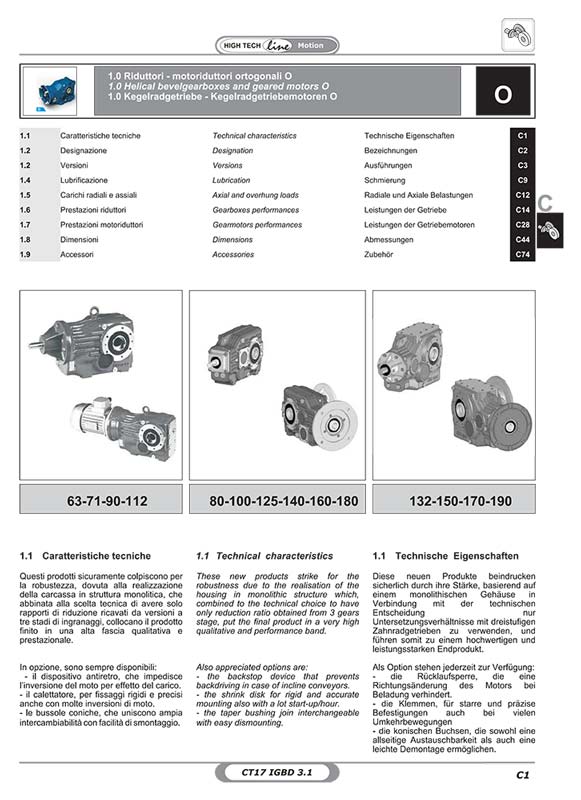

Specifications
| Size | Torque (Nm) | Shaft (mm) | Alternative Shaft (mm) |
|---|---|---|---|
| 63 | 240 | 30 | 25 / 28 |
| 71 | 460 | 35 | 30 / 32 |
| 80 | 600 | 32 | 30 / 35 |
| 90 | 910 | 40 | 42 / 45 / 48 |
| 100 | 1200 | 45 | 40 / 50 |
| 112 | 1750 | 50 | 55 |
| 125 | 2300 | 55 | 50 / 60 |
| 132 | 3500 | 60 | 70 |
| 140 | 4500 | 70 | 60 |
| 150 | 5000 | 70 | 80 |
| 160 | 6000 | 90 | - |
| 170 | 7500 | 90 | - |
| 180 | 9000 | 100 | - |
| 190 | 10500 | 100 | - |
Downloads
PDFCAD models
3D and 2D models from the maker, free to download in most CAD formats. The link opens the maker's own CAD site, which may ask you to sign in.
