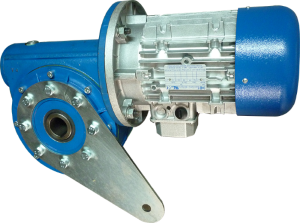

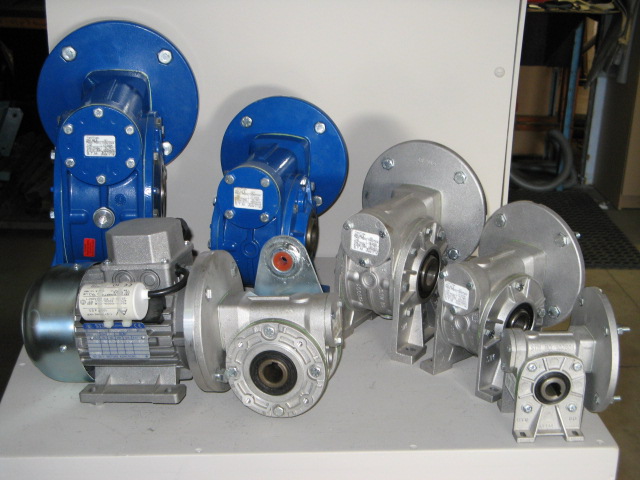

STM RMI Series Round Worm Gearboxes
Sizes 28 - 180 Ratio 7:1 - 100:1 Hollow Shafts 14mm - 65mm All Round Worm Gearboxes made from die cast aluminium, providing increased strength and performance.
Goes with this
- View
- STM R & U Series Double Output Shaft SKU: GBP2420414011View
- R & U Series Single Output Shafts SKU: GBP2420410011View
- View
- View
Log in to see prices and add these to your cart.
Overview

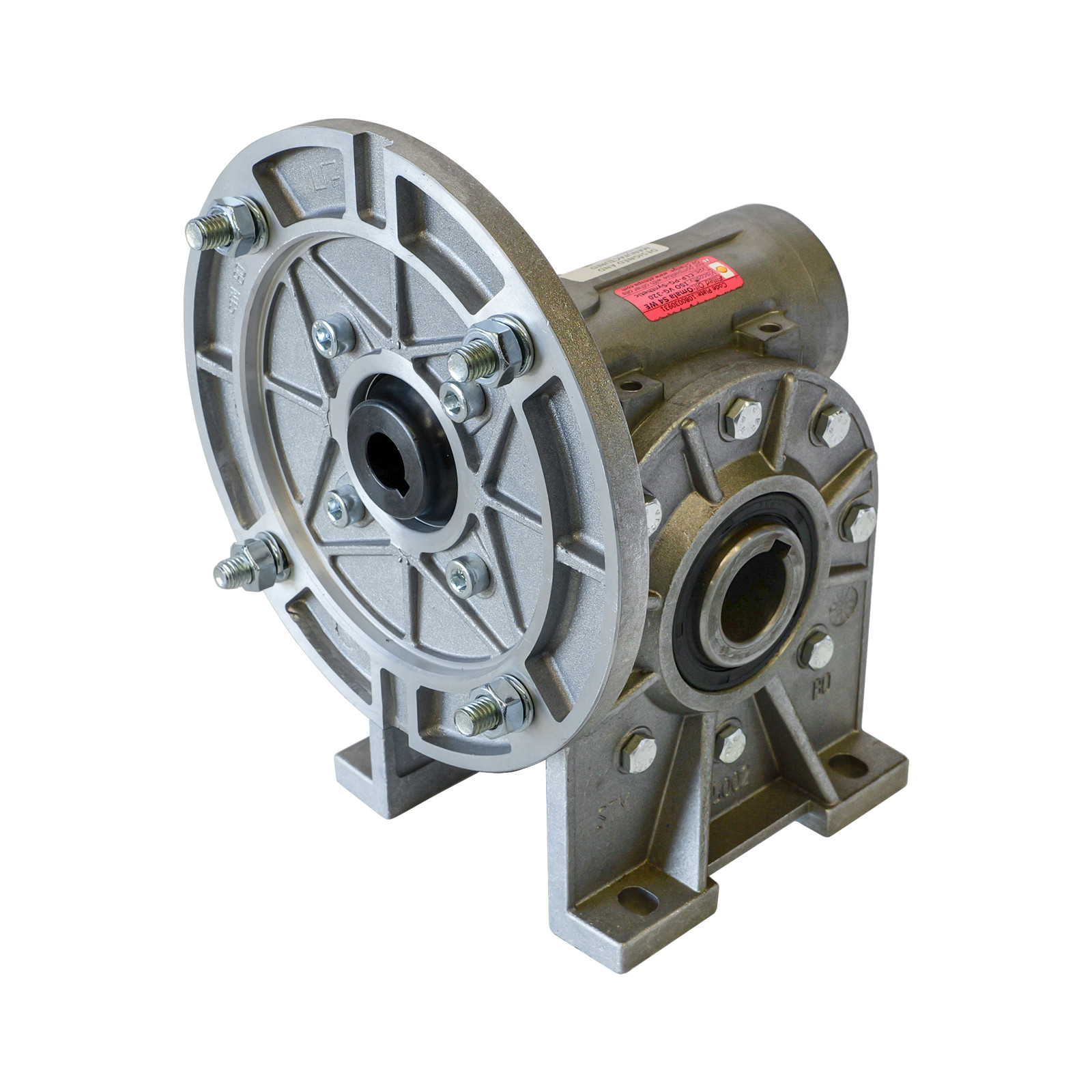

RMI Series Worm Gearboxes
- Sizes 28 – 180
- Ratio 7:1 – 100:1
- Hollow Shafts
- 14mm – 65mm
All Round Worm Gearboxes made from die cast aluminium, providing increased strength and performance. Includes a modular attachable output flange (FL) for more flexibility.
EQM Industrial supply STM Gearboxes New Zealand-wide. Contact Us for information on products and system designs.
Why STM Standard?
- Modular design
- Wide range of sizes and ratios
- Universal & standard mounting
- Patented input coupling design
- Full range of accessories
- Superior gear componentry
- Suitable for small medium workloads
- Interchangeable with other brands
- Your choice of colour
- Combinations for high ratios
- Torque limiters
- Epoxy or colour coated options
Suitable for
- Wide range of food processing systems
- Driving conveyor systems
- Mixers and agitator processes
- Mobile plant equipment
- Materials handling
- Any automation
Specifications
| Size | Torque (Nm) | Hollow shaft (mm) |
|---|---|---|
| 28 | 20 | 14mm |
| 40 | 40 | 19mm |
| 50 | 80 | 24mm | 25mm |
| 63 | 145 | 25mm |
| 70 | 165 | 28mm | 30mm |
| 85 | 310 | 35mm |
| 110 | 640 | 42mm |
| 130 | 915 | 48mm |
| 150 | 1430 | 55mm |
| 180 | 2080 | 65mm |
| 215 | 3500 | 90mm |
| 250 | 4800 | 110mm |

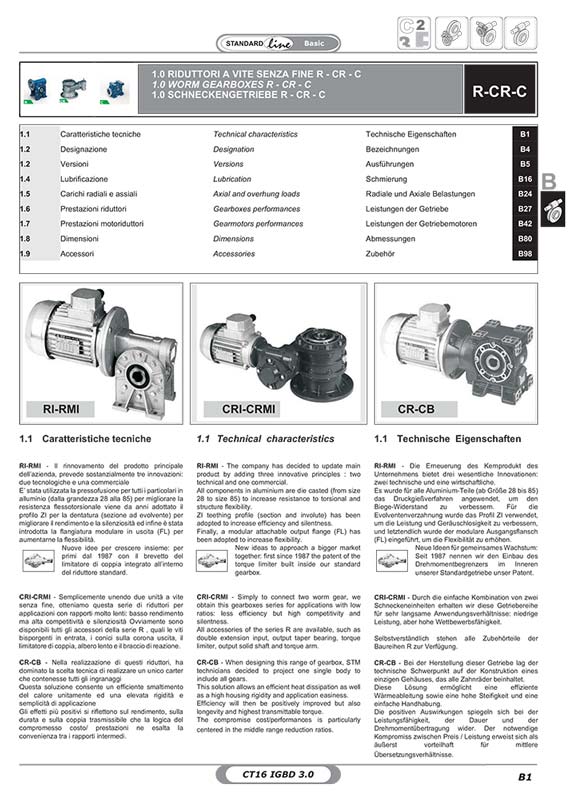

Downloads
PDFCAD models
3D and 2D models from the maker, free to download in most CAD formats. The link opens the maker's own CAD site, which may ask you to sign in.
