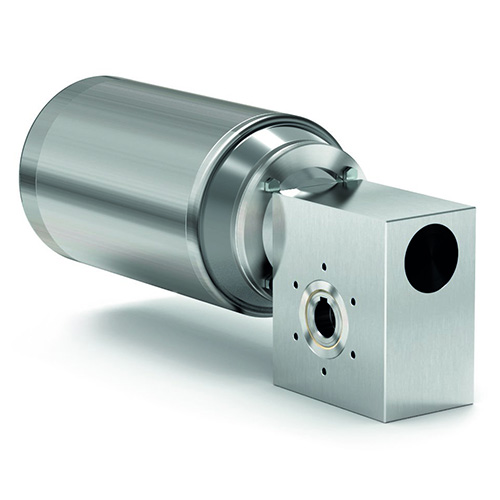

Clean-Geartech VFI Series Stainless Steel Worm Gearboxes

Best suited for applications that come into direct contact with processing product and are subjected to regular sanitisation procedures, in areas such as such as meat and poultry, fish and seafood processing, fruit and…

Gearbox-Sizei30 14mm HS, i45 18mm HS, i50 20mm HS and 5 more
Ratio5:1 to 102:1
Input-FlangeD56-B14 (80mm/9mm), D63-B14 (90mm/11mm), D71-B14 (105mm/14mm) and 3 more

Choose your options

Gearbox-Size

Ratio

Input-Flange

Clear

Request a Quote

Browse wishlist

Add to compare

Pick each option, or choose from all sizes.

Goes with this

Downloads (1) Not sure which one? Call 0800 147 847

Overview

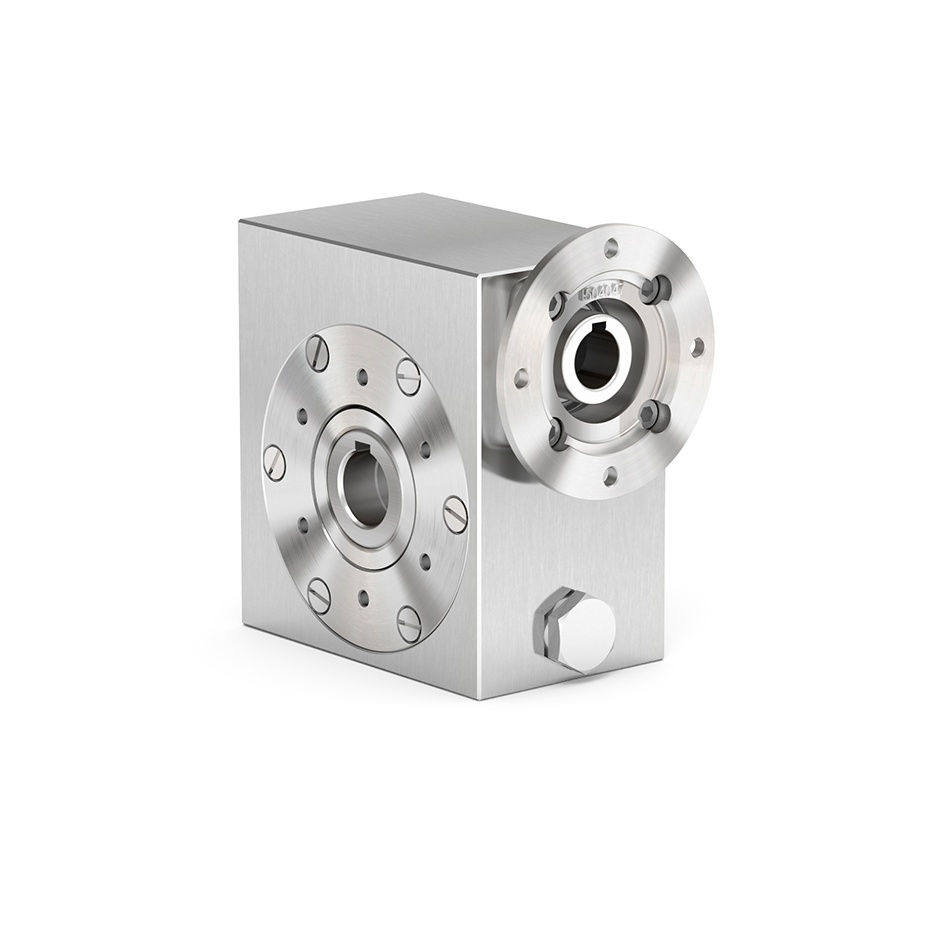

VFI Series Stainless Steel Gearbox

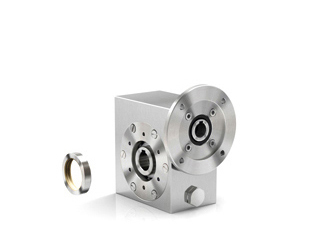

Twin viton seals with stainless steel shield; IP69K certified

100% factory pressure leak tested

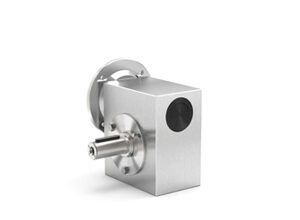

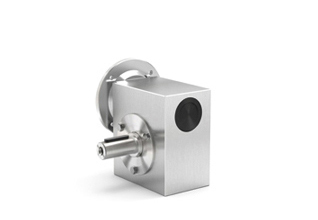

Output shaft is produced in AISI 316L

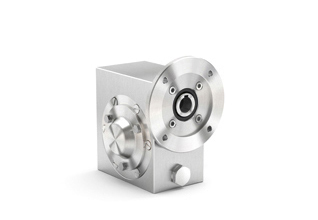

Special covering assures full protection of oil spills

Input coupling for effective torque transmissions

Available in 6 casing sizes rated for up to 650Nm

Standard hollow bore sizes 14mm through to 42mm, with several optional bores available on request.

Suitable for Food processing sectors

Meat
Poultry
Dairy
Seafood
Petfood

Specifications

Gearbox-Size	i30 14mm HS, i45 18mm HS, i50 20mm HS, i50 25mm HS, i63 25mm HS, i63 30mm HS, i85 35mm HS, i110 42mm HS
Ratio	5:1, 7:1, 10:1, 14:1, 15:1, 16:1, 18:1, 19:1, 20:1, 21:1, 22:1, 23:1, 24:1, 26:1, 28:1, 30:1, 36:1, 37:1, 38:1, 43:1, 40:1, 45:1, 46:1, 50:1, 52:1, 53:1, 60:1, 61:1, 64:1, 67:1, 68:1, 70:1, 74:1, 80:1, 84:1, 94:1, 96:1, 99:1, 100:1, 102:1
Input-Flange	D56-B14 (80mm/9mm), D63-B14 (90mm/11mm), D71-B14 (105mm/14mm), D80-B14 (120mm/19mm), D90-B14 140mm/24mm), D100/112 B14 (160mm/28mm), D100/112 B5 (250mm/28mm)

Type	Torque (Nm)	Hollow shaft (mm)	Max kW Input
I30	21	14mm	0.09kw-0.18kw
I45	41	18mm	0.09kw-0.37kw
I50	72	25mm	0.12kw-0.75kw
I63	147	25mm	0.37kw-1.5kw
I85	347	35mm	0.55kw-4.0kw
I110	651	42mm	1.1kw-4.0kw

All sizes

Every size in this range (22)

Gearbox-Size	Ratio	Input-Flange	SKU
i63 30mm HS	Any	D90-B14 140mm/24mm)	SSGKITI63D90B1430
i63 30mm HS	Any	D71-B14 (105mm/14mm)	SSGKITI63D71B1430
i63 30mm HS	Any	D80-B14 (120mm/19mm)	SSGKITI63D80B1430
i30 14mm HS	Any	D56-B14 (80mm/9mm)	SSGKITI30D56B14
i30 14mm HS	Any	D63-B14 (90mm/11mm)	SSGKITI30D63B14
i45 18mm HS	Any	D63-B14 (90mm/11mm)	SSGKITI45D63B14
i45 18mm HS	Any	D71-B14 (105mm/14mm)	SSGKITI45D71B14
i50 20mm HS	Any	D63-B14 (90mm/11mm)	SSGKITI50D63B1420
i50 20mm HS	Any	D71-B14 (105mm/14mm)	SSGKITI50D71B1420
i50 20mm HS	Any	D80-B14 (120mm/19mm)	SSGKITI50D80B1420
i50 25mm HS	Any	D63-B14 (90mm/11mm)	SSGKITI50D63B1425
i50 25mm HS	Any	D71-B14 (105mm/14mm)	SSGKITI50D71B1425
i50 25mm HS	Any	D80-B14 (120mm/19mm)	SSGKITI50D80B1425
i63 25mm HS	Any	D71-B14 (105mm/14mm)	SSGKITI63D71B14
i63 25mm HS	Any	D80-B14 (120mm/19mm)	SSGKITI63D80B14
i63 25mm HS	Any	D90-B14 140mm/24mm)	SSGKITI63D90B14
i85 35mm HS	Any	D80-B14 (120mm/19mm)	SSGKITI85D80B14
i85 35mm HS	Any	D90-B14 140mm/24mm)	SSGKITI85D90B14
i85 35mm HS	Any	D100/112 B14 (160mm/28mm)	SSGKITI85D100B14
i110 42mm HS	Any	D80-B14 (120mm/19mm)	SSGKITI11080B14
i110 42mm HS	Any	D90-B14 140mm/24mm)	SSGKITI11090B14
i110 42mm HS	Any	D100/112 B14 (160mm/28mm)	SSGKITI110100B14
