Smart Conveyor Solutions for Space-Tight Production Lines.
Foodtech Packtech Show Demo Deals
When space is tight and efficiency matters, the right conveyor can make all the difference. Our Modu Spiral and Gripper Conveyors provide reliable, compact solutions for continuous product handling.

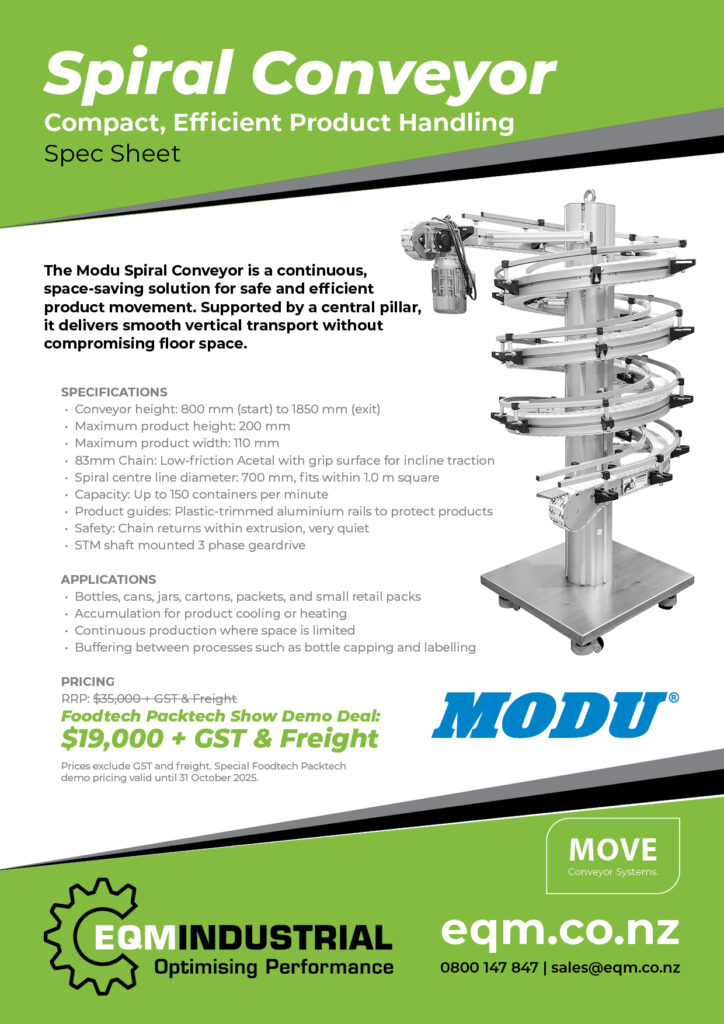

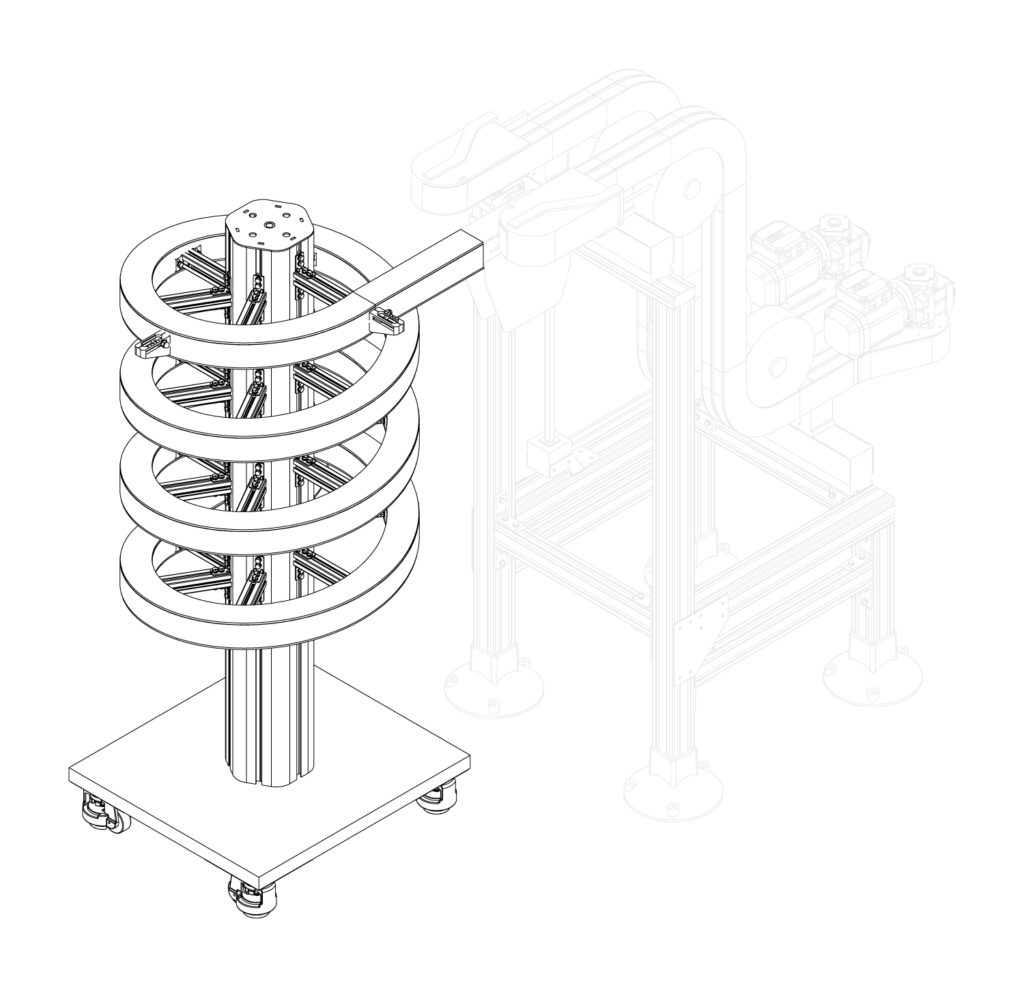

Modu Spiral Conveyor
The Modu Spiral Conveyor is a continuous, space-saving solution for safe and efficient product movement. Supported by a central pillar, it delivers smooth vertical transport without compromising floor space.
Specifications
- Conveyor height: 800 mm (start) to 1850 mm (exit)
- Maximum product height: 200 mm
- Maximum product width: 110 mm
- 83mm Chain: Low-friction Acetal with grip surface for incline traction
- Spiral centre line diameter: 700 mm, fits within 1.0 m square
- Capacity: Up to 150 containers per minute
Product guides: Plastic-trimmed aluminium rails to protect products - Safety: Chain returns within extrusion, very quiet
- STM shaft mounted 3 phase geardrive
Applications
- Bottles, cans, jars, cartons, packets, and small retail packs
- Accumulation for product cooling or heating
- Continuous production where space is limited
- Buffering between processes such as bottle capping and labelling
Pricing:
RRP: $35,000 + GST & Freight
Foodtech Packtech Show Demo Deal:
$19,000 + GST & Freight
Prices exclude GST and freight. Special Foodtech Packtech demo pricing valid until 31 October 2025.

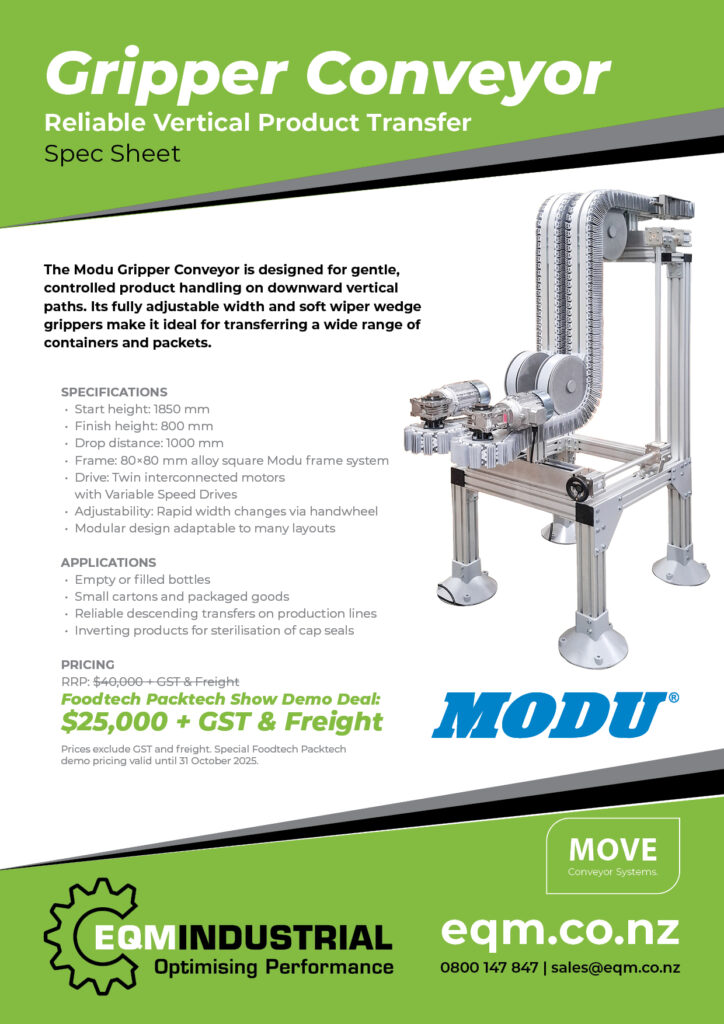

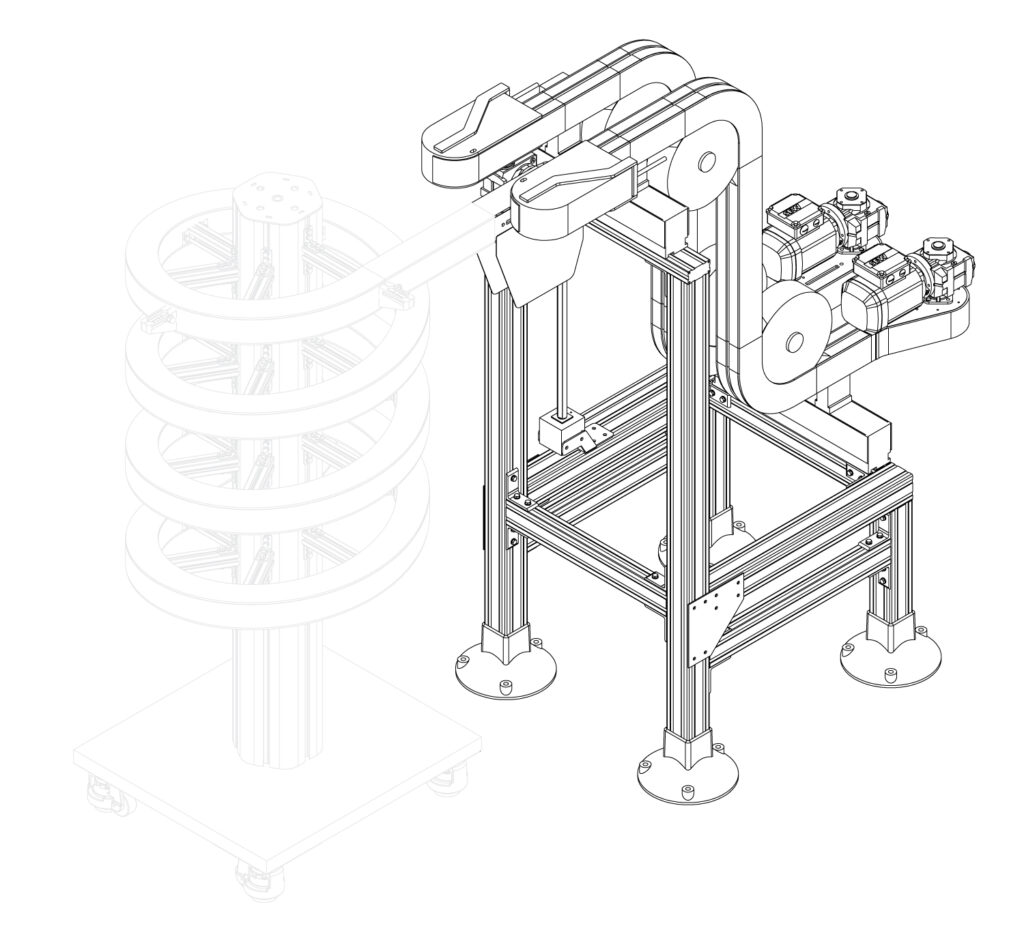

Modu Gripper Conveyor
The Modu Gripper Conveyor is designed for gentle, controlled product handling on downward vertical paths. Its fully adjustable width and soft wiper wedge grippers make it ideal for transferring a wide range of containers and packets.
Specifications
- Start height: 1850 mm
- Finish height: 800 mm
- Drop distance: 1000 mm
- Frame: 80×80 mm alloy square Modu frame system
- Drive: Twin interconnected motors with Variable Speed Drives
- Adjustability: Rapid width changes via handwheel
- Modular design adaptable to many layouts
Applications
- Empty or filled bottles
- Small cartons and packaged goods
- Reliable descending transfers on production lines
- Inverting products for
Pricing:
RRP: $40,000 + GST & Freight
Foodtech Packtech Show Demo Deal:
$25,000 + GST & Freight
Prices exclude GST and freight. Special Foodtech Packtech demo pricing valid until 31 October 2025.
All details, pricing, and offers listed in this email are subject to change at any time. Deals and pricing may differ from those available online or from previous promotions. Nothing in this email guarantees future availability or applies to any other offer unless stated otherwise.
