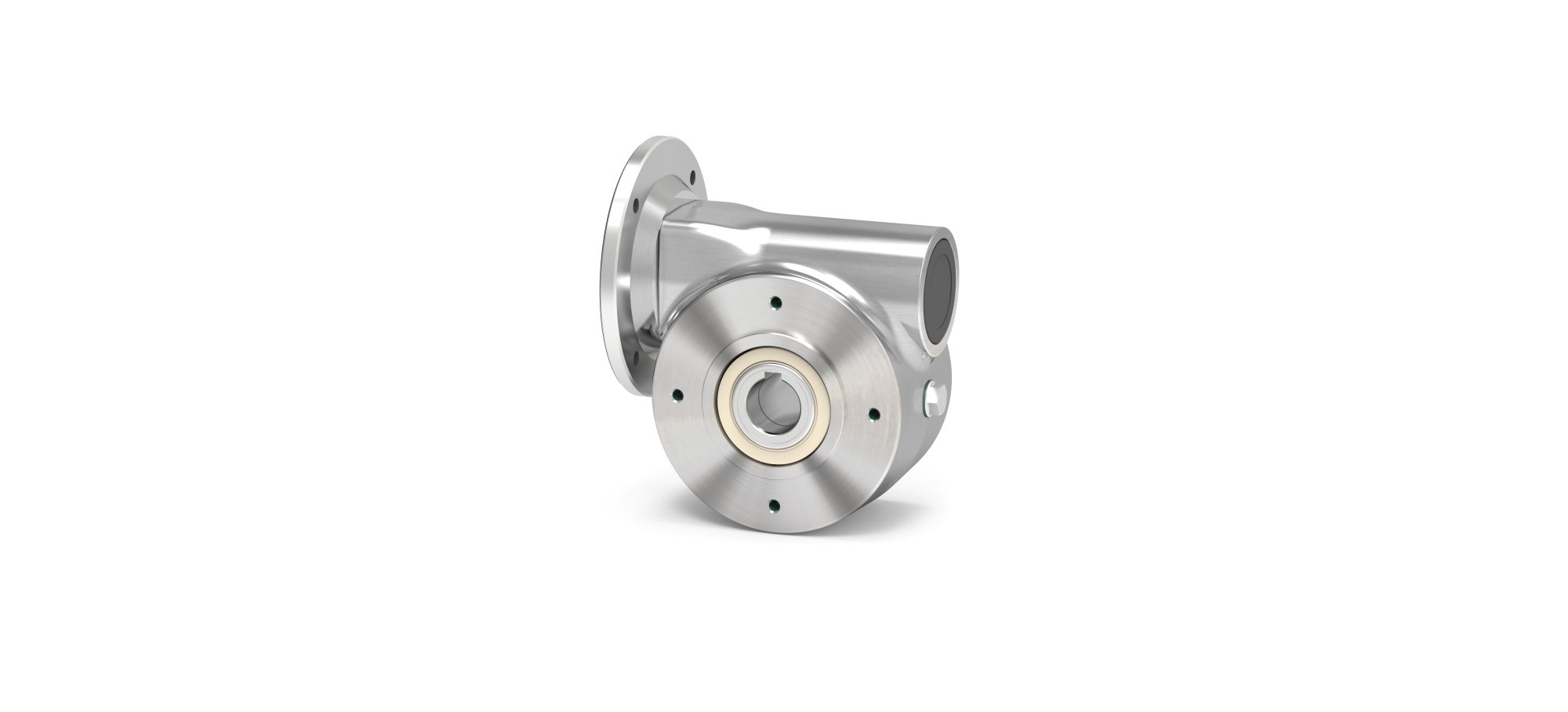

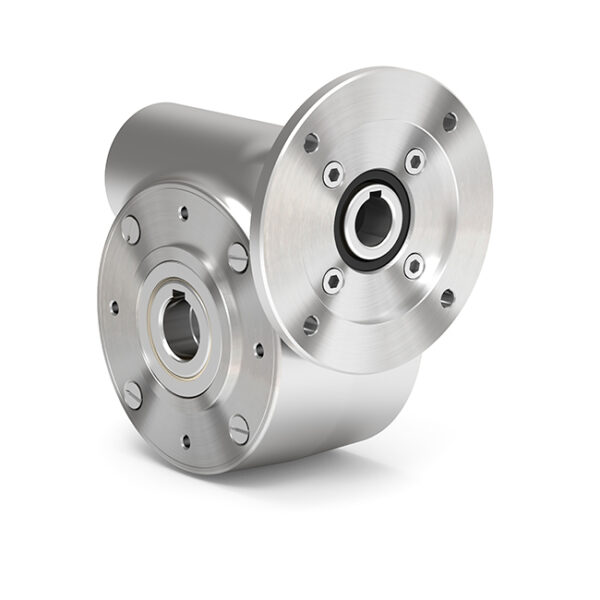

Clean-Geartech VFN Series Stainless Steel Round Worm Gearboxes

Available in 6 casing sizes rated for up to 650Nm, with standard hollow bore sizes 14mm through to 42mm, with several optional bores available on request.

Add to wishlist

Add to compare

Goes with this

Not sure which one? Call 0800 147 847

Overview

Available in 6 casing sizes rated for up to 650Nm, with standard hollow bore sizes 14mm through to 42mm, with several optional bores available on request. The casing is design is the same as the VFD aluminium series, which makes it interchangeable with several other brands of worm gearboxes and makes upgrading existing applications easier than ever before.

Twin viton seals with stainless steel shield; IP69K certified

100% factory pressure leak tested

Output shaft is produced in AISI 316L

Special covering assures full protection of oil spills

Input coupling for effective torque transmissions

VFN Stainless Steel Worm Gearbox Applications

Best suited for applications that come into direct contact with processing product and are subjected to regular sanitisation procedures, in areas such as such as meat and poultry, fish and seafood processing, fruit and vegetables, dairy production, beverages, bakery applications and marine.

Suitable for Food processing sectors

Meat
Poultry
Dairy
Seafood
Petfood

Specifications

Type	Torque (Nm)	Hollow shaft (mm)	Max kW Input
VFN 30	21	14mm	0.09kw-0.18kw
VFN 45	41	18mm (19mm upon request)	0.12kw-0.37kw
VFN 50	72	25mm (24mm upon request)	0.12kw-0.75kw
VFN 63	147	25mm (28mm & 30mm upon request)	0.37kw-1.8kw
VFN 85	347	35mm	0.55kw-4.0kw
