| Type | Torque (Nm) | Hollow shaft (mm) | Max kW Input |
|---|---|---|---|
| VFD 30 | 21 | 14mm | 0.09kW-0.18kW |
| VFD 45 | 41 | 18mm | 0.09kW-0.37kW |
| VFD 50 | 72 | 20mm & 25mm | 0.12kW-0.75kW |
| VFD 63 | 147 | 25mm | 0.37kW-1.50kW |
| VFD 85 | 347 | 35mm (38mm on request) | 0.55kW-4.00kW |

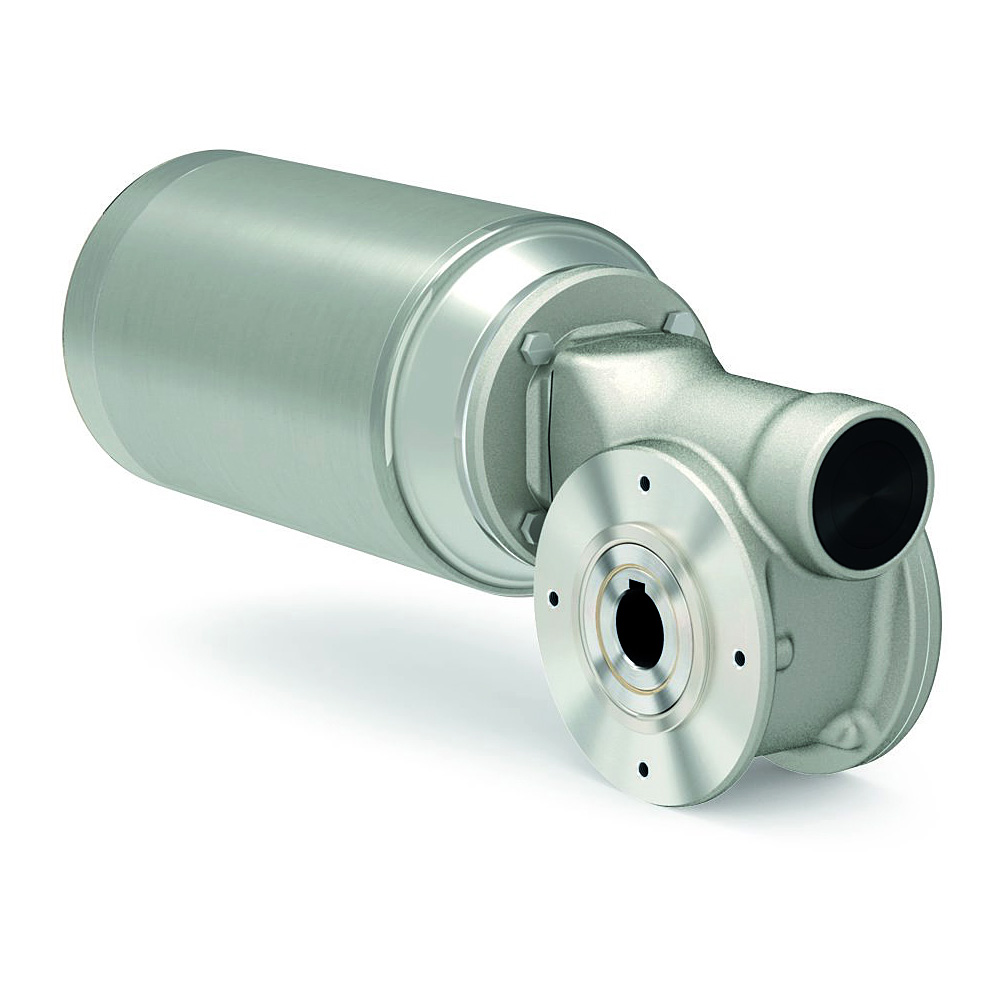

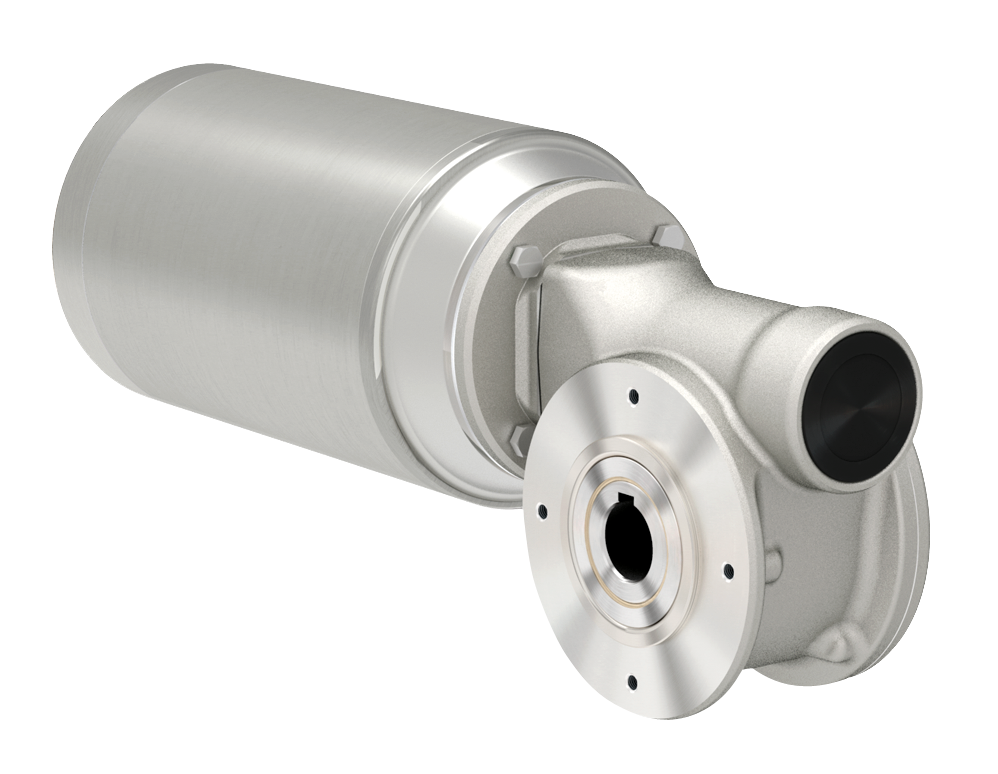

Clean-Geartech VFD-NTT Series Hygiene Aluminium Worm Gearboxes
VFD NTT Series is the standard series with an upgraded outer protective coating. This gearbox is suitable for light water washdown and is more capable of resisting corrosion than a standard unpainted or painted aluminium worm gearbox.

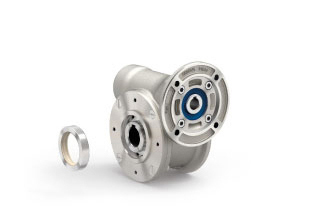

Leak-proof twin viton seals with stainless steel shield
NTT surface treatment that reduces aluminum oxidisation

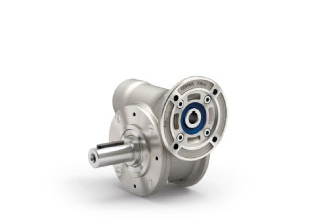

Hollow output shaft in AISI 316L stainless steel
All stainless steel accessories
Housing with smooth, hygienic surfaces
Product Enquiry: Clean-Geartech VFD-NTT Series Hygiene Aluminium Worm Gearboxes
VFD-NTT Series Hygiene Aluminium Gearbox Applications
Best suited for applications where there is hot water washdown without aggressive detergents being used. Idea in basic sanitisation procedures in areas such as such as meat and poultry, fish and seafood processing, fruit and vegetables, dairy production, beverages, bakery applications and marine.
Suitable for Food processing sectors
- Meat
- Poultry
- Dairy
- Seafood
- Petfood
- Confectionery
