Stainless Steel F 4 Bolt Flanged Units

WHAT DOES THIS MEAN FOR YOU?

Extremely Hygienic – prevention of microbial contamination during production and storage,
Effective and Efficient cleaning processes– less strenuous to clean,
Reduction in downtime – eliminate typical washdown failure,
Reduction in replacement costs – the longevity of the parts is increased as stainless-steel is more hard-wearing,
Pass Food Safety Audits – What every auditor loves to see, the blue seal!
Detectable – all non-metallic parts in detectable blue colours

Downloadable CAD Models below

Enquire Now

Product Enquiry: Stainless Steel F 4 Bolt Flanged Units

Categories: EQM Hygiene, Stainless Steel Hygienic Bearing System

HYGIENIC LINE STAINLESS STEEL BEARING UNITS PROPERTIES

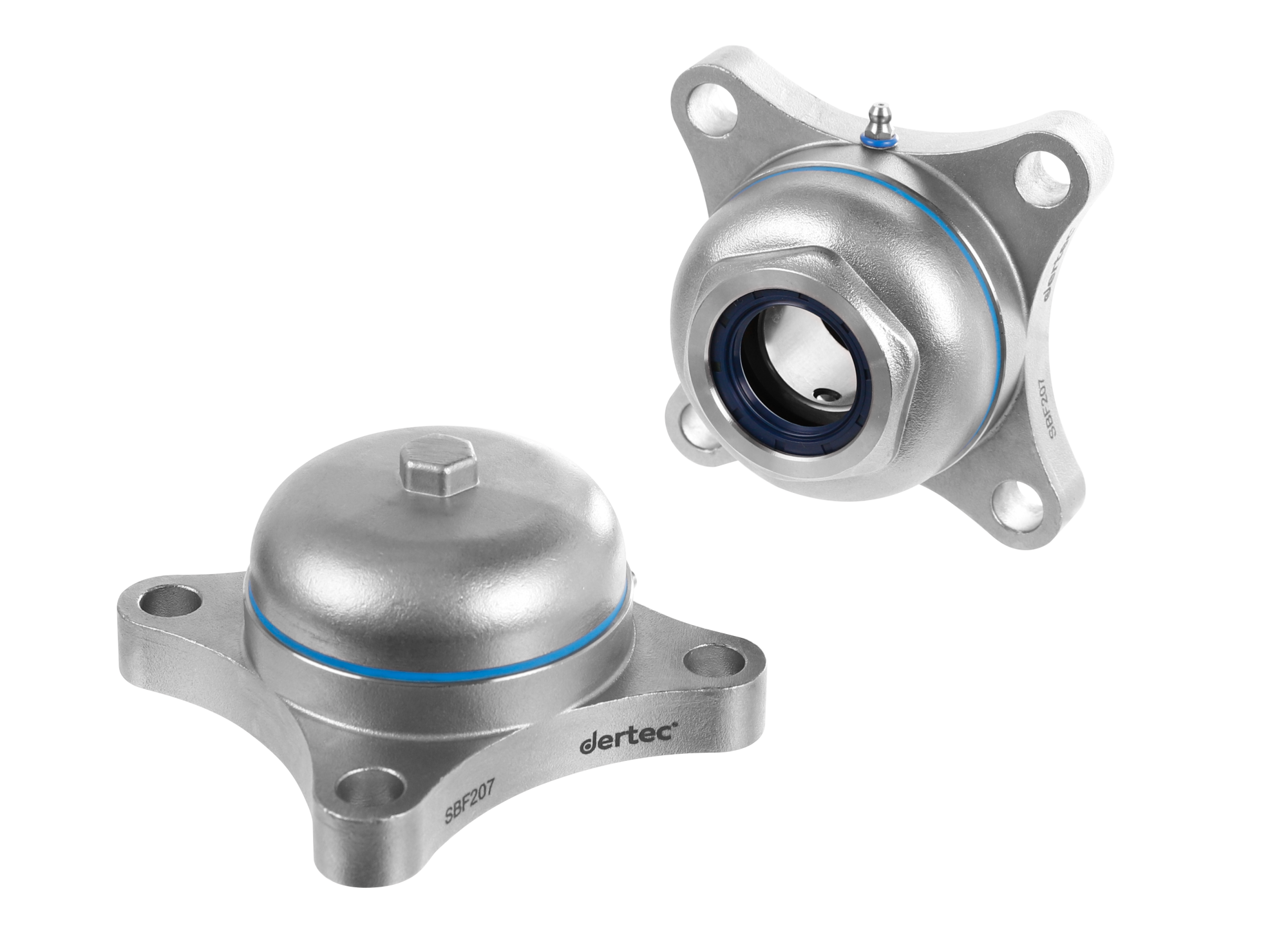

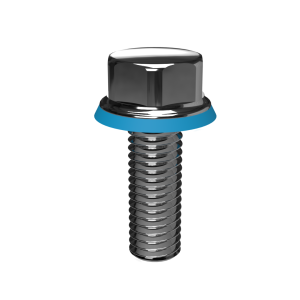

The bearing housing is designed to avoid crevices or recesses where soiling and bacteria might accumulate or become trapped. The housing has no sharp corners all surfaces are angled to prevent pooling. The flat surfaces on the housings are intented to use for installation the housings with EQM Hygiene line hygienic bolts and bonded seals. The smooth surface on the housing plays an important role to achieve easy cleanablity and drainability.
The endcover is provided with an O-ring and a Hygienic seal offering maximum hygienic protection The back seal offers an additional sealing protection to protect the bearing unit from shaft side contamination. All units are lubricated with NSF-approved foodgrade grease, the high-quality grease is registered by NSF as a category H1 grease.

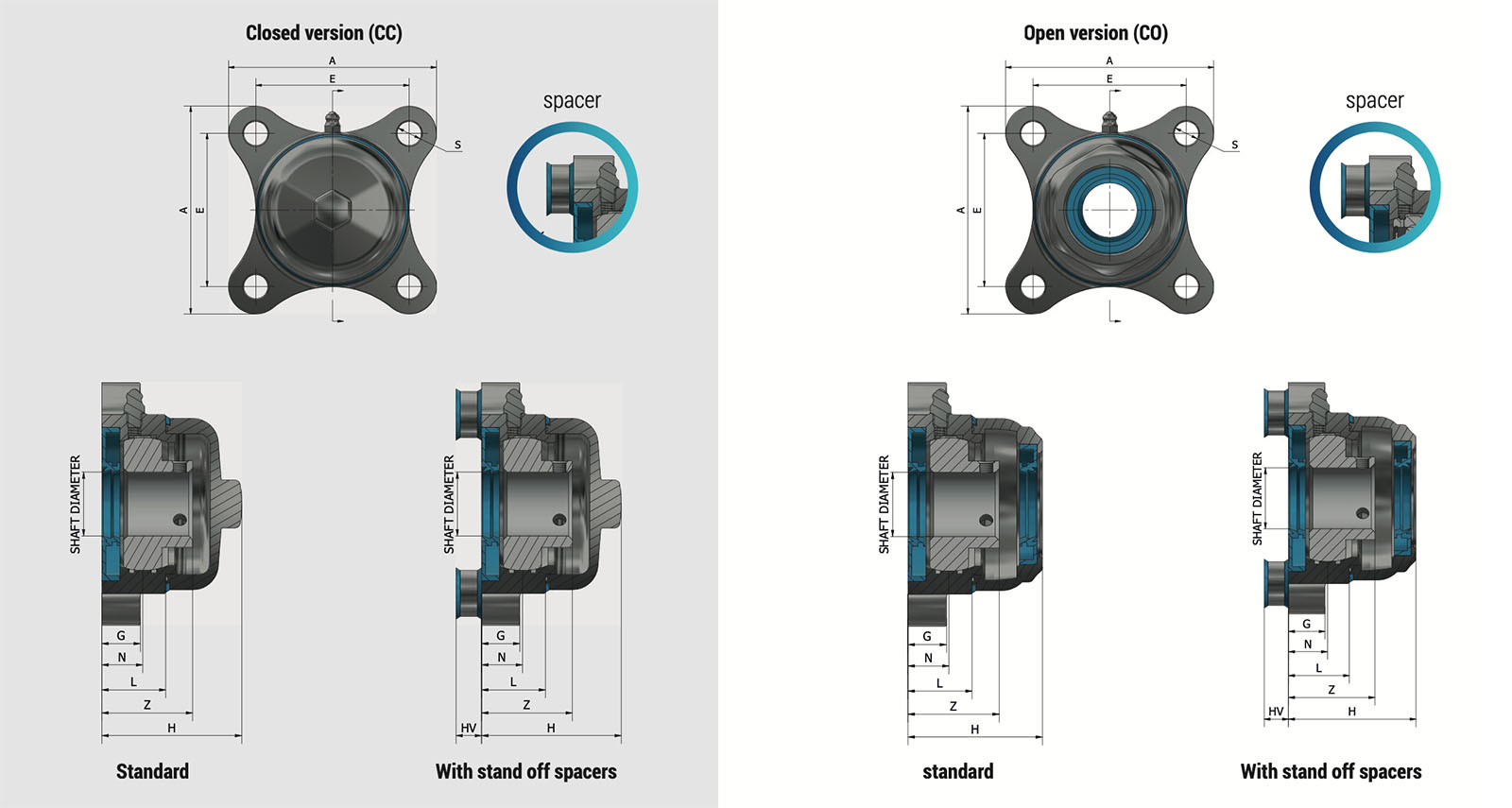

TYPE	SHAFT Ø	A	E	G	H	HV	L	N	S	Z
DH LASS SB F CC 204	20	88	63.5	15	54.2	10	24	15	11	33
DH LASS SB F CO 204	20	95	70	15	51.9	10	24	15	11	33
DH LASS SB F CC 205	25	95	70	15	57.7	10	25	16	11	35.5
DH LASS SB F CO 205	25	95	70	15	52.4	10	25	16	11	35.5
DH LASS SB F CC 206	30	105	77	15	61	10	29	18	11	40
DH LASS SB F CO 206	30	105	77	15	58.7	10	29	18	11	40
DH LASS SB F CC 207	35	108	82.5	17	64.7	10	31	19	11	42.5
DH LASS SB F CO 207	35	108	82.5	17	62.4	10	31	19	11	42.5
DH LASS SB F CC 208	40	119	92	17	70	10	33	21	14	46
DH LASS SB F CO 208	40	119	92	17	70.7	10	33	21	14	46
DH LASS SB F CC 209	45	135	105	18	71.5	10	33	22	16	53.7
DH LASS SB F CO 209	45	135	105	18	69.2	10	33	22	16	53.7
DH LASS SB F CC 210	50	143	111	20	71	10	38	22	16	55
DH LASS SB F CO 210	50	143	111	20	72.7	10	38	22	16	55
* All sizes in mm
