Certified Hygienic Levelling Feet – XH
The only levelling feet in the world hygienically certified by 3-A, EHEDG and USDA standards for use in sanitary production environments.
Downloads (1) Not sure which one? Call 0800 147 847
Overview
Threaded Levelling Feet for Hygienic Environments

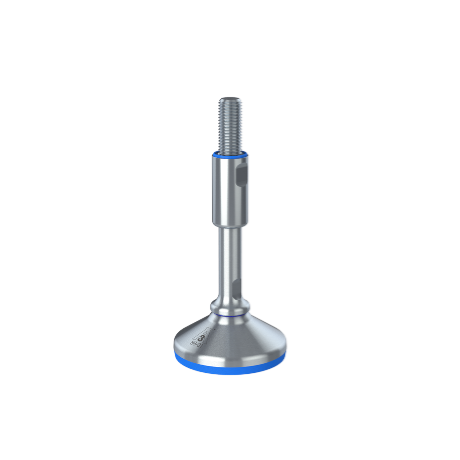

XH Hygienic Levelling Feet
The only levelling feet in the world hygienically certified by 3-A, EHEDG and USDA standards for use in sanitary production environments.
Self-draining surfaces, sealed movable parts and no exposed thread secures absolute minimum cleaning and maximum sanitary safety.
- Weight load up to 65,000 N
- Thread covered with hygienic sleeve functioning as counter nut
- Height variation 104 mm – 206 mm
- 3-A logo on footplate for certified recognition
- NGI Global brand
Large range of sizes available on request (below table only a sample)
Specifications

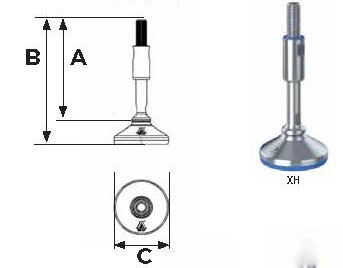

| Item Code | Thread | A | B | C | Load Capacity (kg) |
|---|---|---|---|---|---|
| XH065 | M12/M16/M20 | 150 | 178 | 65Ø Foot | 900 |
| XH080 | M16/M20 | 210 | 243 | 80Ø Foot | 1500 |
| XH105 | M16/M20 | 210 | 243 | 105Ø Foot | 2200 |
| XH125 | M16/M20 | 210 | 243 | 125Ø Foot | 3200 |
| XH150 | M16/M20 | 210 | 243 | 150Ø Foot | 6500 |
| all sizes in mm | M24, M30 & M36 | ||||
| available upon request |
