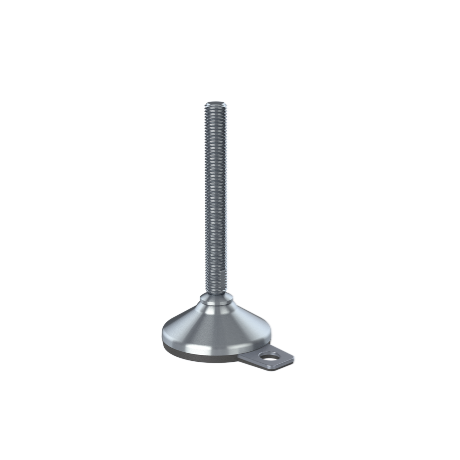

Hygienic Fully Threaded Levelling Feet – HX Fixing
Price range: $87.56 through $104.57
Shipping calculated at checkout.
HX FIXING Series
Hygienic Fully Threaded Levelling Feet
Stainless steel hygienic levelling feet with fully threaded spindle and floor fixing option, designed for machinery and equipment in food, beverage and sanitary production environments.
The HX-FIX series features a self-draining hygienic design with FDA-approved anti-slip rubber base, helping prevent contamination beneath the footplate while providing stable load support.
Suitable for production equipment, conveyors, frames and work tables requiring secure floor fixation and hygienic compliance.
Key Features
- Fully threaded stainless steel spindle
- Floor fixing plate for secure installation
- Self-draining hygienic geometry
- FDA-approved anti-slip rubber base
- Load capacity up to 70,000 N (model dependent)
- Suitable for washdown environments
| Foot Plate Diameter | 80mm, 105mm |
|---|---|
| Thread Size | M16, M20 |

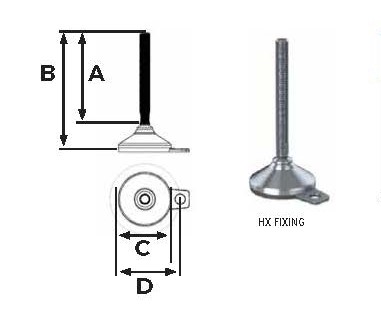

| Thread | A | B | C | D | Load Capacity (kg) |
|---|---|---|---|---|---|
| M12/M16/M20 | 70 | 109 | 65Ø Foot | 46.8 | 900 |
| M12/M16/M20 | 97 | 136 | 80Ø Foot | 53.2 | 1500 |
| M16/M20 | 139 | 178 | 105Ø Foot | 70 | 2200 |
| M16/M20 | 172 | 211 | 125Ø Foot | 80 | 3200 |
| all sizes in mm | M24, M30, M36 & M42 | ||||
| available upon request |
Hygienic Levelling Feet - HX & HPA Series
DOWNLOAD PDF (97.82 KB)Related products

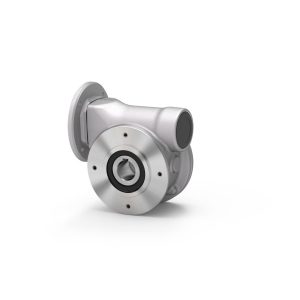

Clean-Geartech VFI Series Stainless Steel Worm Gearboxes
