T Series Three Phase Alloy Electric Motors
Three-phase electric motors designed for reliable performance across a wide range of industrial applications.
- Kilowatt - kw0.09kw to 0.55kw
- Speed - rpm2pole 2800rpm, 4pole 1400rpm, 6pole 950rpm
- Frame SizeD56, D63, D71, D80
- Mounting OptionsB5 Flange, B14 Flange, B3 Foot Mount and 2 more
Not sure which one? Call 0800 147 847
Overview
STM Neri Motori Electric Motors – 3phase T Series
Three-phase electric motors designed for reliable performance across a wide range of industrial applications.
Suitable for continuous duty with consistent power output and efficiency.
- Foot and Flange mounted
- B5, B14 and B3 mounting
The reliable T series of Electric Motors from internationally-renowned Italian manufacturer STM Neri Motori.
EQM Industrial supply STM Neri Electric Motors New Zealand-wide. Contact Us with any product enquiries or system design questions.
Key Features
- High efficiency and stable performance (IE3)
- Suitable for continuous operation
- Aluminium and cast iron construction options
- Wide range of frame sizes and outputs
Typical Applications
- Conveyors, pumps, fans, compressors,
and general industrial machinery - matches wide range of gearboxes
Specifications
| Kilowatt - kw | 0.09kw, 0.18kw, 0.25kw, 0.37kw, 0.55kw |
|---|---|
| Speed - rpm | 2pole 2800rpm, 4pole 1400rpm, 6pole 950rpm |
| Frame Size | D56, D63, D71, D80 |

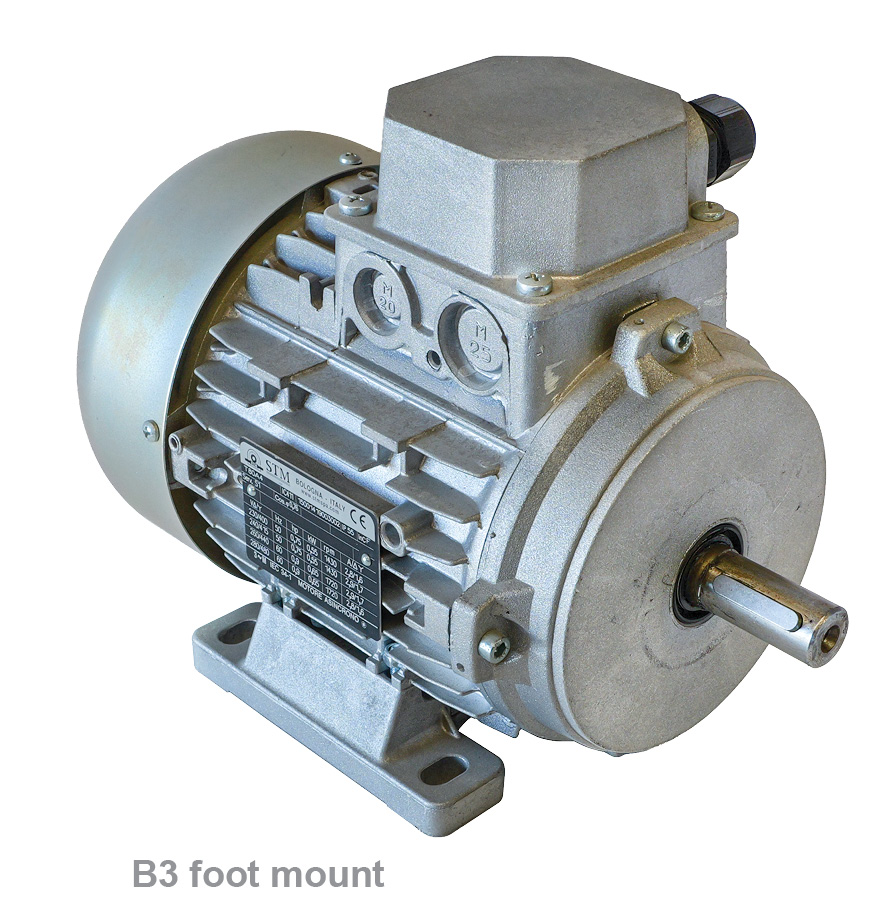

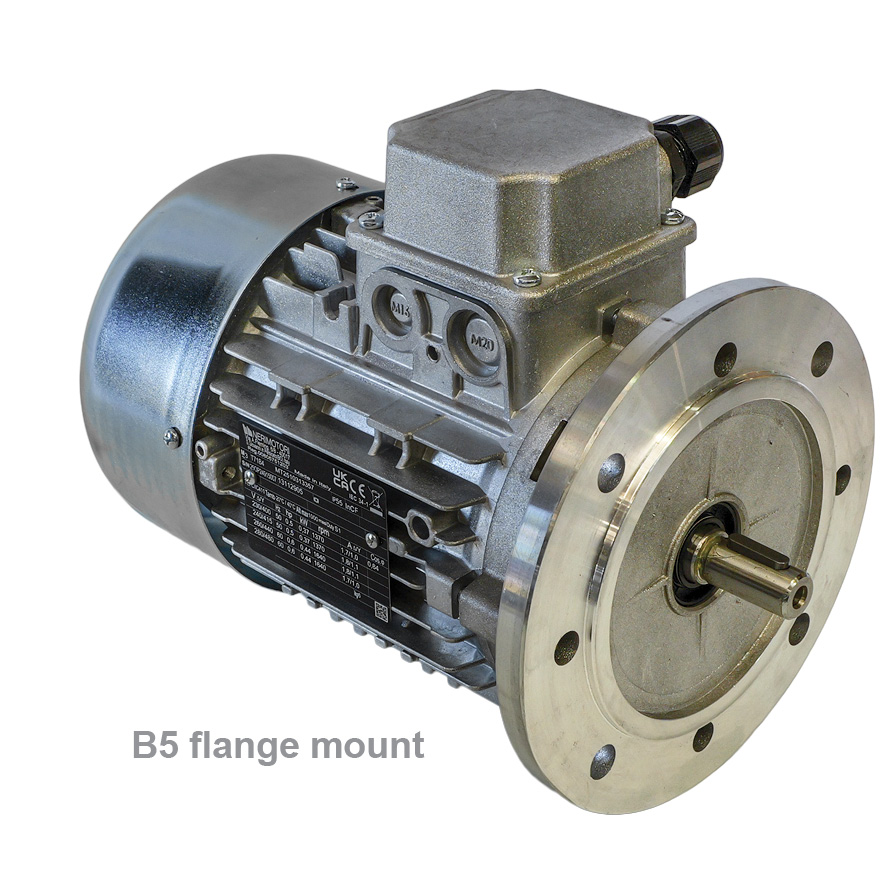

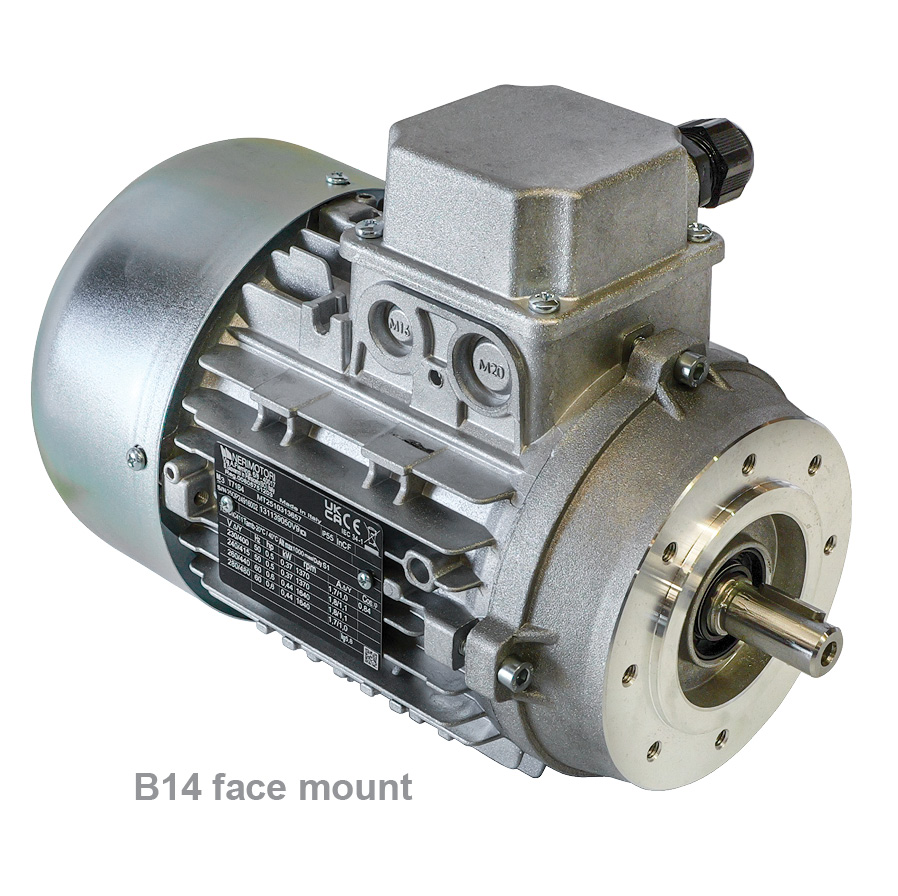

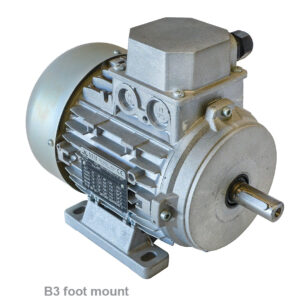

| Mounting Options | B5 Flange, B14 Flange, B3 Foot Mount, B3/B14 Foot/Flange, B3/B5 Foot/Flange |
All sizes
Every size in this range (16)
| Kilowatt - kw | Speed - rpm | Frame Size | Mounting Options | SKU | Choose |
|---|---|---|---|---|---|
| 0.09kw | 2pole 2800rpm | D56 | Any | MT2510010111 | |
| 0.09kw | 4pole 1400rpm | D56 | Any | MT2510311091 | |
| 0.09kw | 6pole 950rpm | D63 | Any | MT2510611021 | |
| 0.18kw | 2pole 2800rpm | D63 | Any | ||
| 0.18kw | 4pole 1400rpm | D63 | Any | MT2510312157 | |
| 0.18kw | 6pole 950rpm | D71 | Any | MT2510613547 | |
| 0.25kw | 2pole 2800rpm | D63 | Any | MT2510011887 | |
| 0.25kw | 4pole 1400rpm | D71 | Any | MT2510313057 | |
| 0.25kw | 6pole 950rpm | D71 | Any | MT2510312837 | |
| 0.37kw | 2pole 2800rpm | D71 | Any | MT2510012457 | |
| 0.37kw | 4pole 1400rpm | D71 | Any | MT2510313357 | |
| 0.37kw | 6pole 950rpm | D80 | Any | MT2510912477 | |
| 0.55kw | 2pole 2800rpm | D71 | Any | MT2510018917 | |
| 0.55kw | 4pole 1400rpm | D71 | Any | MT2510313997 | |
| 0.55kw | 4pole 1400rpm | D80 | Any | MT2510313957 | |
| 0.55kw | 6pole 950rpm | D80 | Any | MT2510613147 |
Have any questions?
Talk to the EQM team about sizing, fit or system design.
