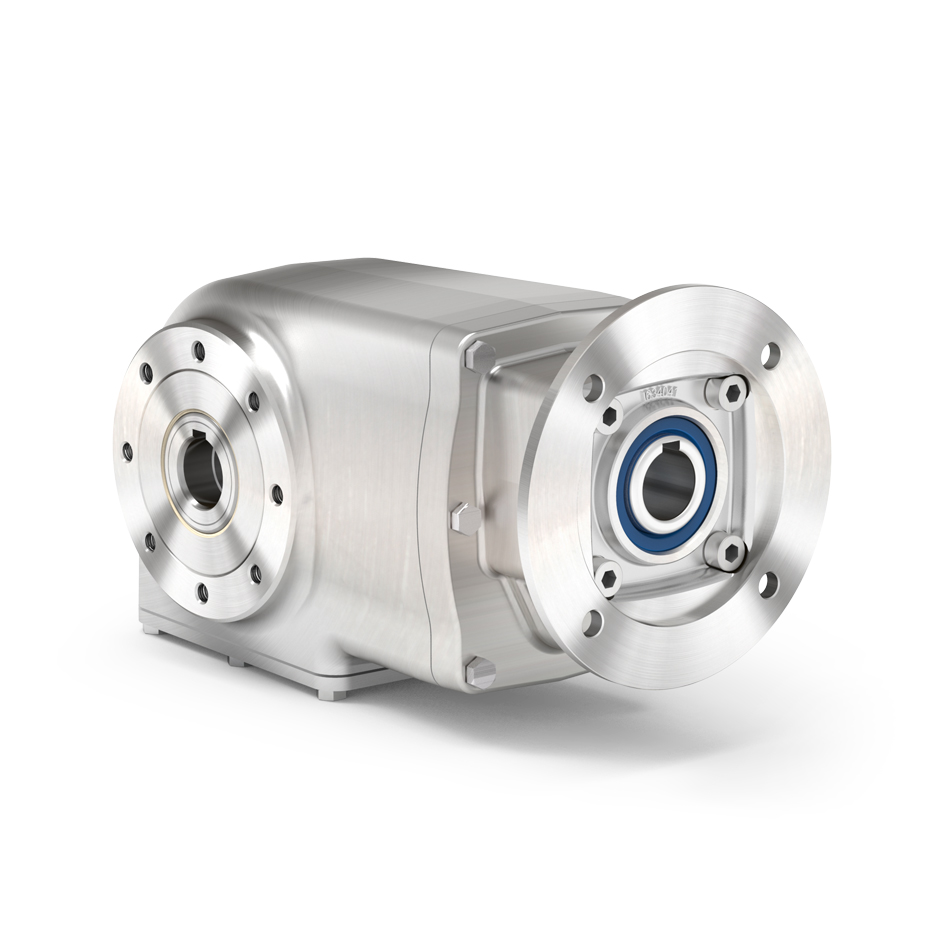

Clean-Geartech BVN Stainless Steel Helical Bevel Gearboxes
Shipping calculated at checkout.
Hygienic, Reliable & Super Strong
Bevel gears for high efficiency
Smooth stainless steel housing
Fully modular IEC flanges
AISI 316L stainless steel hollow input/output shaft. Twin viton seals with stainless steel shield IP69K certified
Suitable for Food processing sectors
- Meat
- Poultry
- Dairy
- Seafood
- Pet food
- Confectionery
| Type | Ratios | Torque (Nm) | Hollow shaft (mm) | Max kW Input |
|---|---|---|---|---|

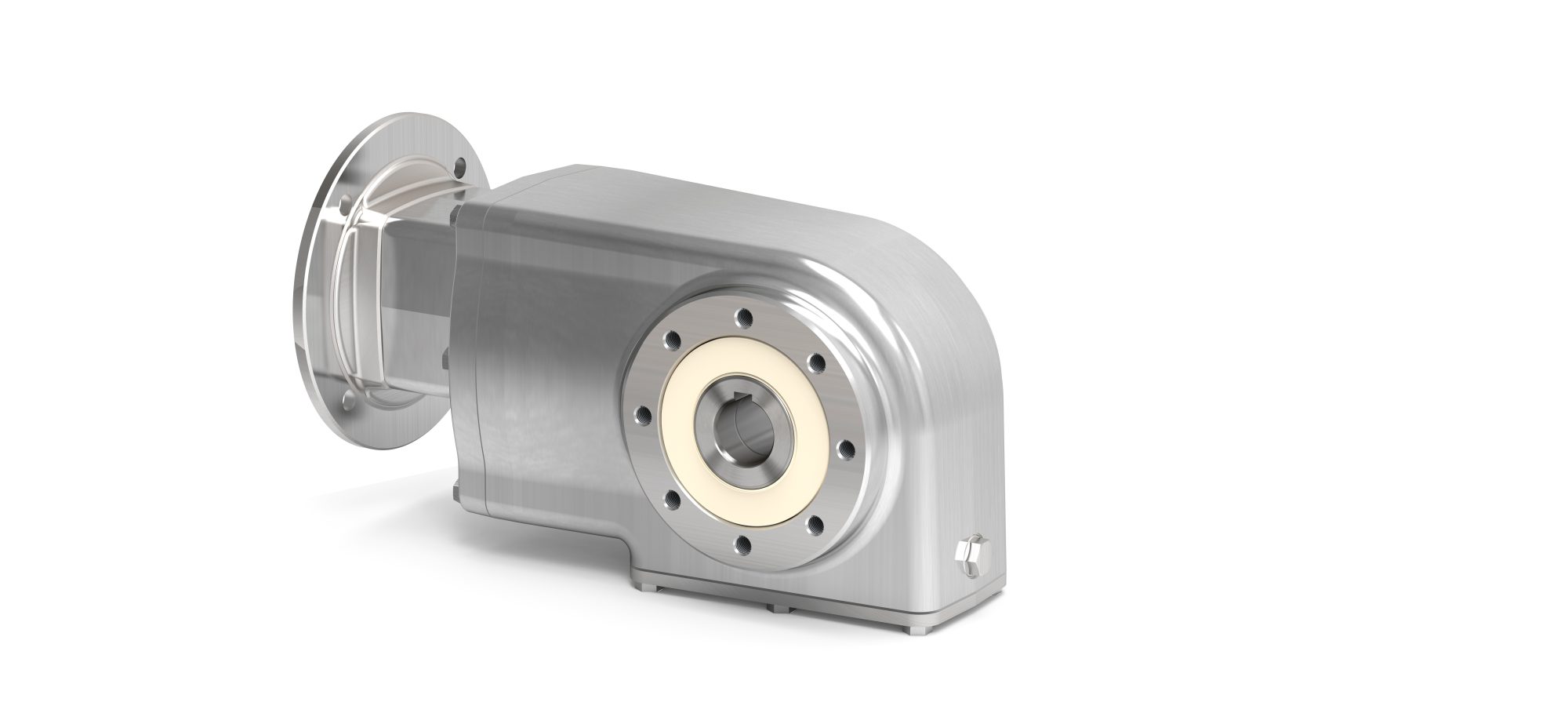

| X42N | 7.29-77.36 | 130 | 25mm (20mm on request) | 0.25kw-1.5kw |
| X43N | 50.35-323.37 | 136 | 25mm (20mm on request) | 0.12kw-0.37kw |
| X62N | 6.03-74.81 | 410 | 35mm (30mm on request) | 0.75kw-4.0kw |
| X63N | 56.76-589.85 | 410 | 35mm (30mm on request) | 0.25kw-1.1kw |
| X73N | 7.94-86.09 | 675 | 40mm | 1.1kw-4.0kw |
| X74N | 74.79-678.79 | 675 | 40mm | 0.25kw-1.5kw |

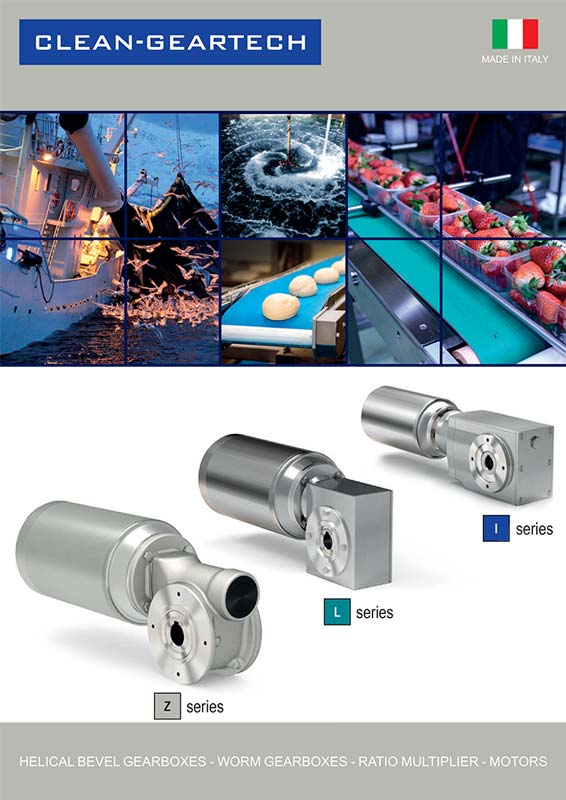

CLEAN-GEARTECH STAINLESS STEEL HELICAL BEVEL GEARBOXES - Specs
DOWNLOAD PDF (2.81 MB)Related products
