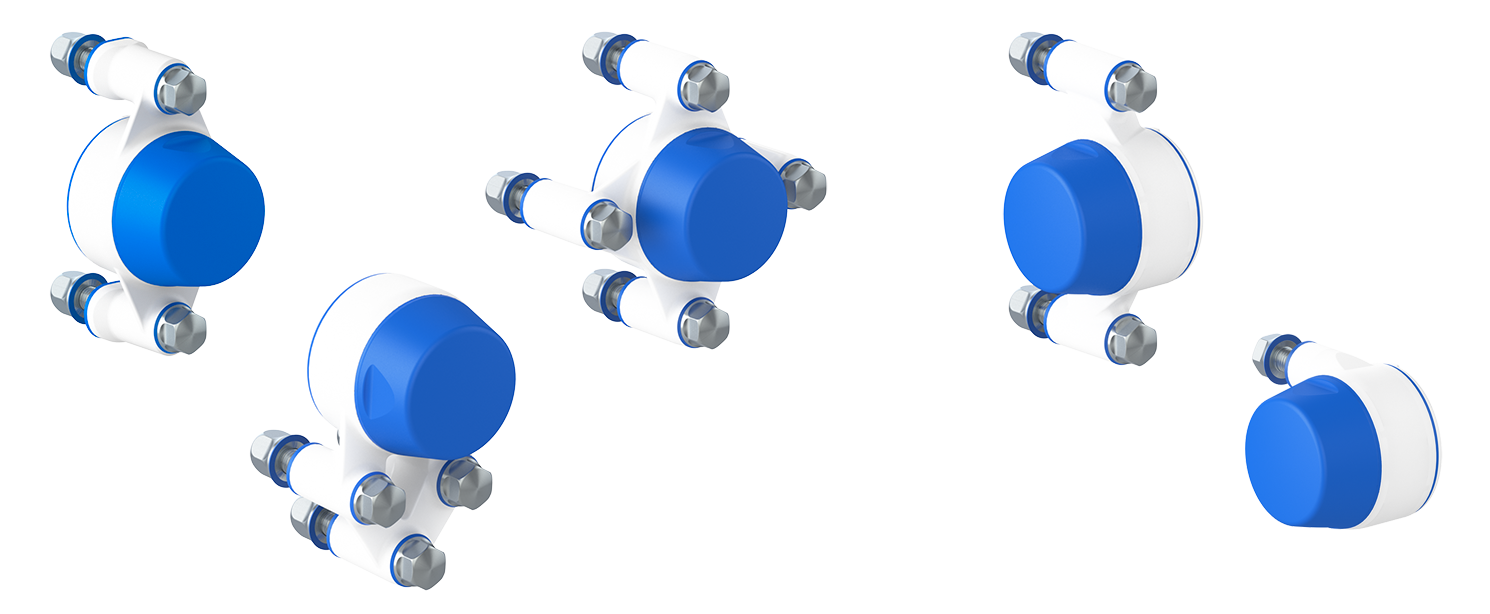

NGI Certified Hygienic Bearing Housings
NGI Certified Hygienic Bearing Housings are engineered for food, beverage, pharmaceutical, and hygiene-critical processing environments where cleanability, durability, and compliance are non-negotiable.
- Cap typeOpen Cover, Closed Cover
- Shaft size20mm, 25mm, 30mm, 35mm
- Housing sizeF 4 Bolt, FL 2 Bolt, FB 3 Bolt
Downloads (1) Not sure which one? Call 0800 147 847
Overview
NGI Certified Hygienic Bearing Housings are engineered for food, beverage, pharmaceutical, and hygiene-critical processing environments where cleanability, durability, and compliance are non-negotiable.
Designed as a hygienic alternative to conventional bearing housings, these units feature smooth, cleanable geometry, high-strength polymer construction, and sealing systems suitable for high-pressure washdown. The housings are IP69K rated and certified to recognised hygiene standards, making them ideal for conveyor systems and processing equipment exposed to frequent cleaning cycles.
Manufactured in accordance with ISO housing standards and compatible with standard insert bearings, NGI Hygienic Bearing Housings allow for straightforward replacement or upgrade from traditional bearing units without changes to shafting or mounting layouts.
Certified Hygienic Bearing Housings
NGI bearing housings are certified to EHEDG, 3-A, and USDA standards and are IP69K rated for high-pressure washdown applications. The range includes multiple housing types and sizes, fitted with stainless steel or ceramic insert bearings to suit a wide variety of conveyor and processing systems.
The housings are designed in accordance with ISO3228:2013 and accept insert bearings that conform to ISO9628:2006. External dimensions are matched to standard bearing units, making them suitable for hygienic replacement of conventional housings without modification to existing equipment.
Product features
- NGI certified hygienic bearing housing
- IP69K rated for high-pressure and high-temperature washdown
- Smooth external geometry for effective cleaning
- Flexible mounting design to accommodate initial shaft misalignment
- Available with stainless steel or ceramic insert bearings
- Patented seal system remains waterproof at misalignment angles greater than 3°
- Lubrication-free design reduces maintenance and contamination risk
- Withstands dynamic and static radial loads equivalent to standard insert bearings
- Suitable for heavier or alternating axial loads depending on shaft locking method
- Operating temperature range -20°C to +110°C (bearing dependent)
Specifications
Standards & certifications
EHEDG
3-A
USDA
IP69K
Design standards
ISO3228:2013 housing design
ISO9628:2006 insert bearing compatibility
Materials
Housing: High-performance grilamid (PA12)
Seals: Co-moulded FDA-approved TPS seals
Colour: White
Operating conditions
Temperature range: -20°C to +110°C (bearing dependent)
| Cap type | Open Cover, Closed Cover |
|---|---|
| Shaft size | 20mm, 25mm, 30mm, 35mm |
| Housing size | F 4 Bolt, FL 2 Bolt, FB 3 Bolt |
All sizes
Every size in this range (14)
| Cap type | Shaft size | Housing size | SKU | Choose |
|---|---|---|---|---|
| Closed Cover | 25mm | F 4 Bolt | EQMHXB4FC52-SB25CLOS | |
| Open Cover | 25mm | F 4 Bolt | EQMHXB4FC52-SB25OMOS | |
| Closed Cover | 30mm | F 4 Bolt | EQMHXB4FC62-SB30CMOS | |
| Open Cover | 30mm | F 4 Bolt | EQMHXB4FC62-SB30OMOS | |
| Closed Cover | 35mm | F 4 Bolt | EQMHXB4FC72-SB35CMOS | |
| Open Cover | 35mm | F 4 Bolt | EQMHXB4FC72-SB35OMOS | |
| Closed Cover | 20mm | FB 3 Bolt | EQMHXB3FC47-SB20CMOS | |
| Closed Cover | 25mm | FB 3 Bolt | EQMHXB3FC52-SB25CLOS | |
| Open Cover | 25mm | FB 3 Bolt | EQMHXB3FC52-SB25OMOS | |
| Closed Cover | 20mm | FL 2 Bolt | EQMHXB2FC47-SB20CLOS | |
| Closed Cover | 25mm | FL 2 Bolt | EQMHXB2FC52-SB25CLOS | |
| Open Cover | 25mm | FL 2 Bolt | EQMHXB2FC52-SB25OMOS | |
| Closed Cover | 30mm | FL 2 Bolt | EQMHXB2FC62-SB30CLOS | |
| Open Cover | 30mm | FL 2 Bolt | EQMHXB2FC62-SB30OMOS |
