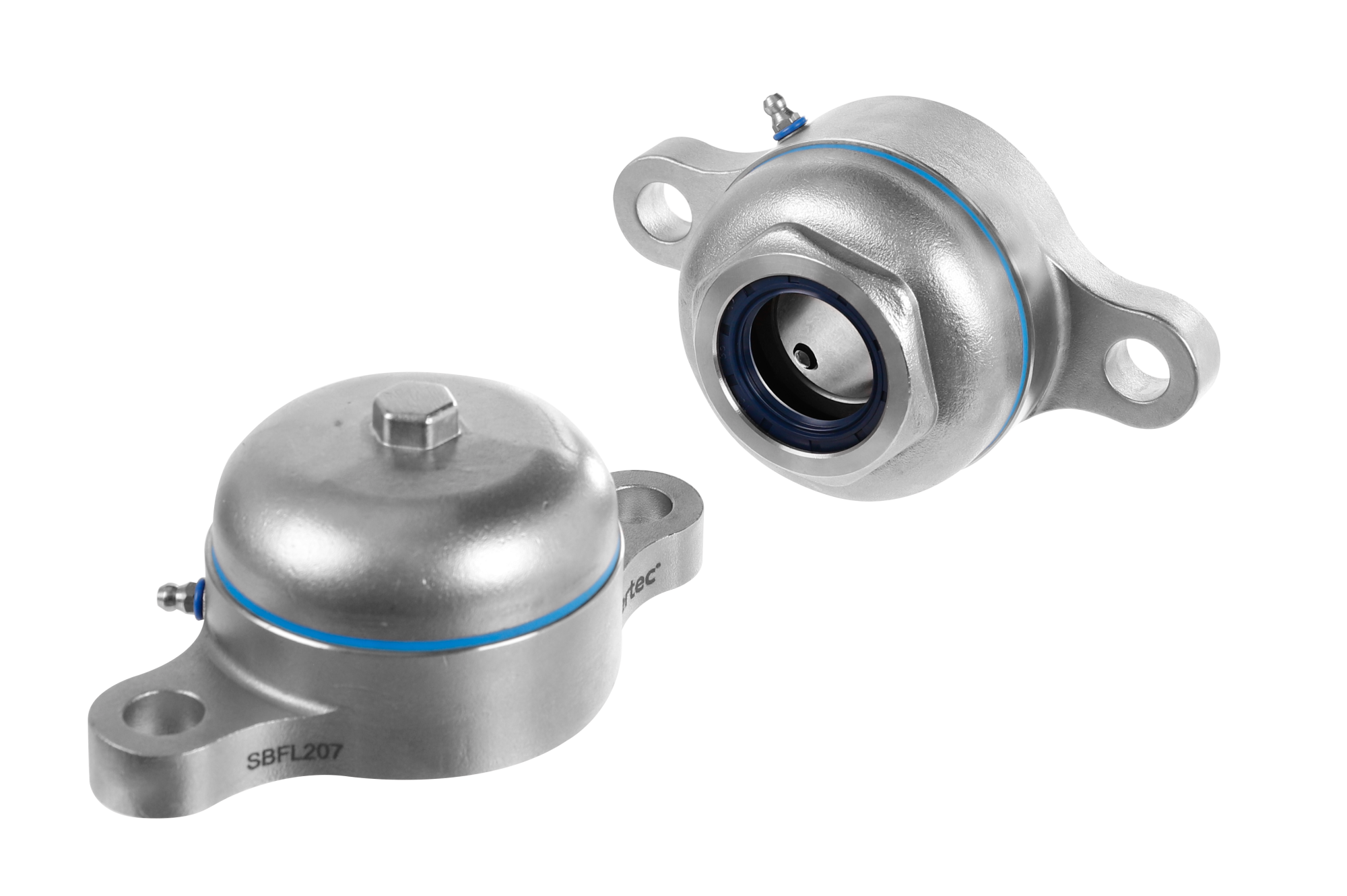

Stainless Steel FL 2 Bolt Flanged Units

WHAT DOES THIS MEAN FOR YOU?

Extremely Hygienic – prevention of microbial contamination during production and storage,
Effective and Efficient cleaning processes– less strenuous to clean,
Reduction in downtime – eliminate typical washdown failure,
Reduction in replacement costs – the longevity of the parts is increased as stainless-steel is more hard-wearing,
Pass Food Safety Audits – What every auditor loves to see, the blue seal!
Detectable – all non-metallic parts in detectable blue colours

Downloadable CAD Models below

Enquire Now

Product Enquiry: Stainless Steel FL 2 Bolt Flanged Units

Categories: EQM Hygiene, Stainless Steel Hygienic Bearing System

HYGIENIC LINE STAINLESS STEEL BEARING UNITS PROPERTIES

The bearing housing is designed to avoid crevices or recesses where soiling and bacteria might accumulate or become trapped. The housing has no sharp corners all surfaces are angled to prevent pooling. The flat surfaces on the housings are intented to use for installation the housings with EQM Hygiene line hygienic bolts and bonded seals. The smooth surface on the housing plays an important role to achieve easy cleanablity and drainability.
The endcover is provided with an O-ring and a Hygienic seal offering maximum hygienic protection The back seal offers an additional sealing protection to protect the bearing unit from shaft side contamination. All units are lubricated with NSF-approved foodgrade grease, the high-quality grease is registered by NSF as a category H1 grease.

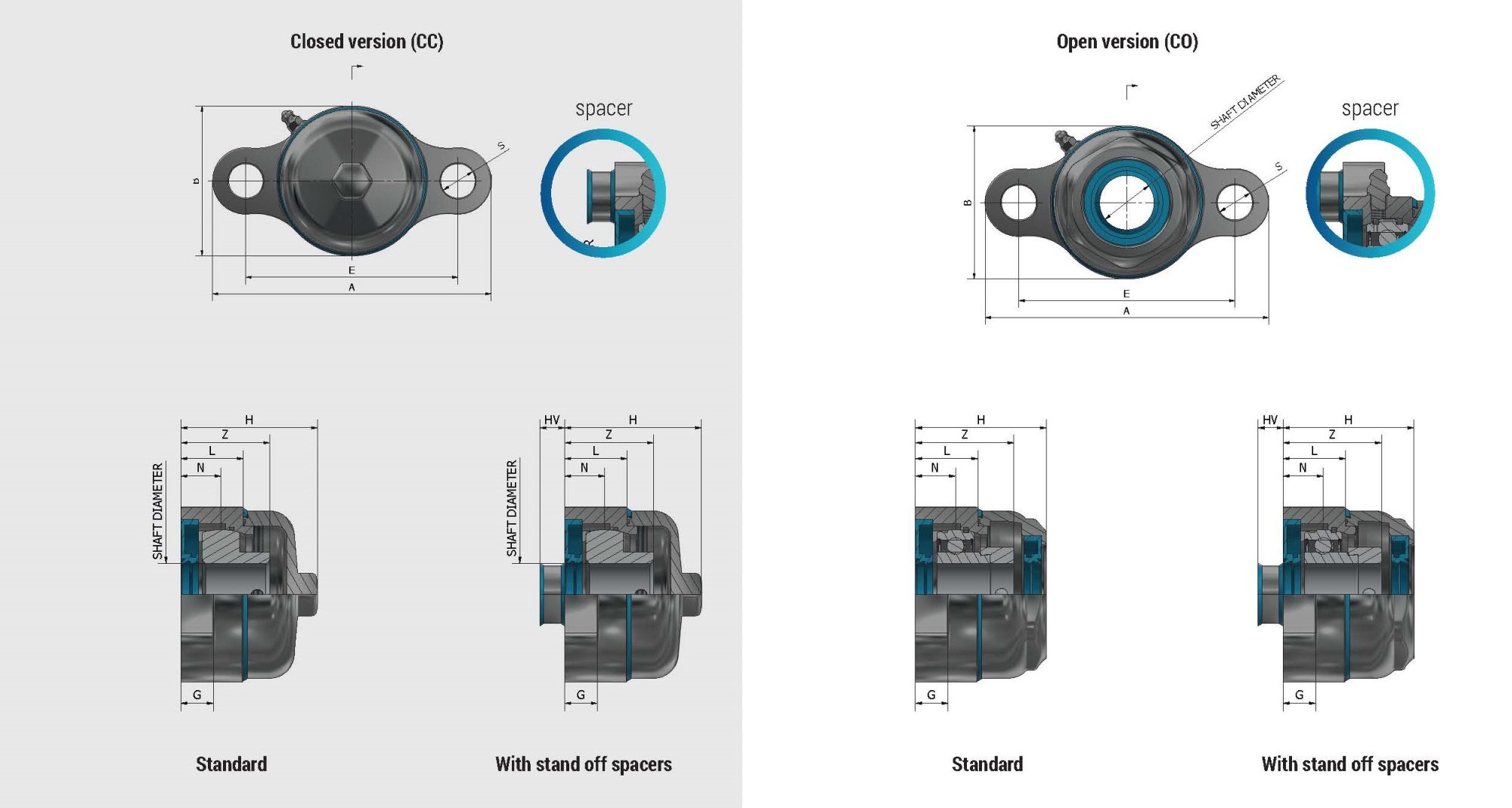

TYPE	SHAFT Ø	A	B	E	G	H	HV	L	N	S	Z
DH LASS SB FL CC 204	20	115	65	90	11	54.2	10	24	15	12	33
DH LASS SB FL CO 204	20	115	65	90	11	51.9	10	24	15	12	33
DH LASS SB FL CC 205	25	130	70	99	13	54.7	10	25	16	16	35.5
DH LASS SB FL CO 205	25	130	70	99	13	52.4	10	25	16	16	35.5
DH LASS SB FL CC 206	30	148	80	117	13	61	10	29	18	16	40
DH LASS SB FL CO 206	30	148	80	117	13	58.7	10	29	18	16	40
DH LASS SB FL CC 207	35	161	90	130	15	64.7	10	31	19	16	42.5
DH LASS SB FL CO 207	35	161	90	130	15	62.4	10	31	19	16	42.5
DH LASS SB FL CC 208	40	175	100	144	15	70	10	33	21	16	46
DH LASS SB FL CO 208	40	175	100	144	15	70.7	10	33	21	16	46
DH LASS SB FL CC 209	45	188	110	148	16	71.5	10	33	22	19	53.7
DH LASS SB FL CO 209	45	188	110	148	16	69.2	10	33	22	19	53.7
DH LASS SB FL CC 210	50	197	120	157	16	71	10	38	22	19	55
DH LASS SB FL CO 210	50	197	120	157	16	72.7	10	38	22	18	55
* All sizes in mm
