CAD Models available upon request
EQM Hygiene hardware is designed in stainless steel and combines high surface quality and sealed bolting areas.
The sealed mounting surface enables fastening without dead spaces and ensures reliable contact pressure after installation.

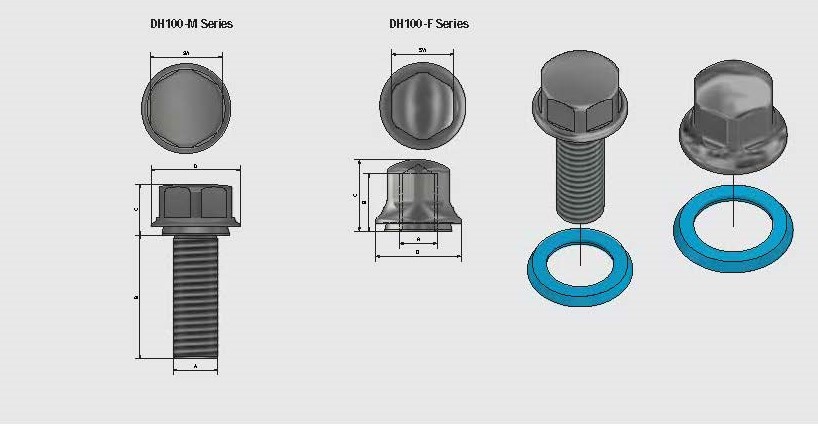

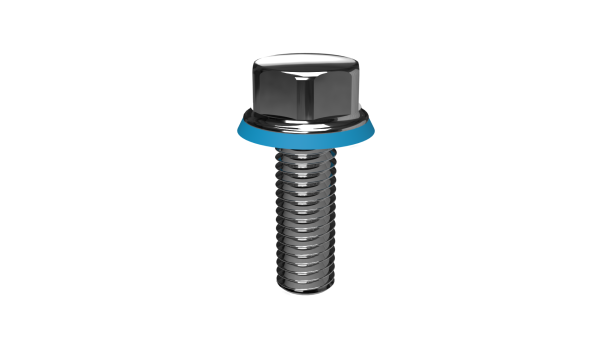

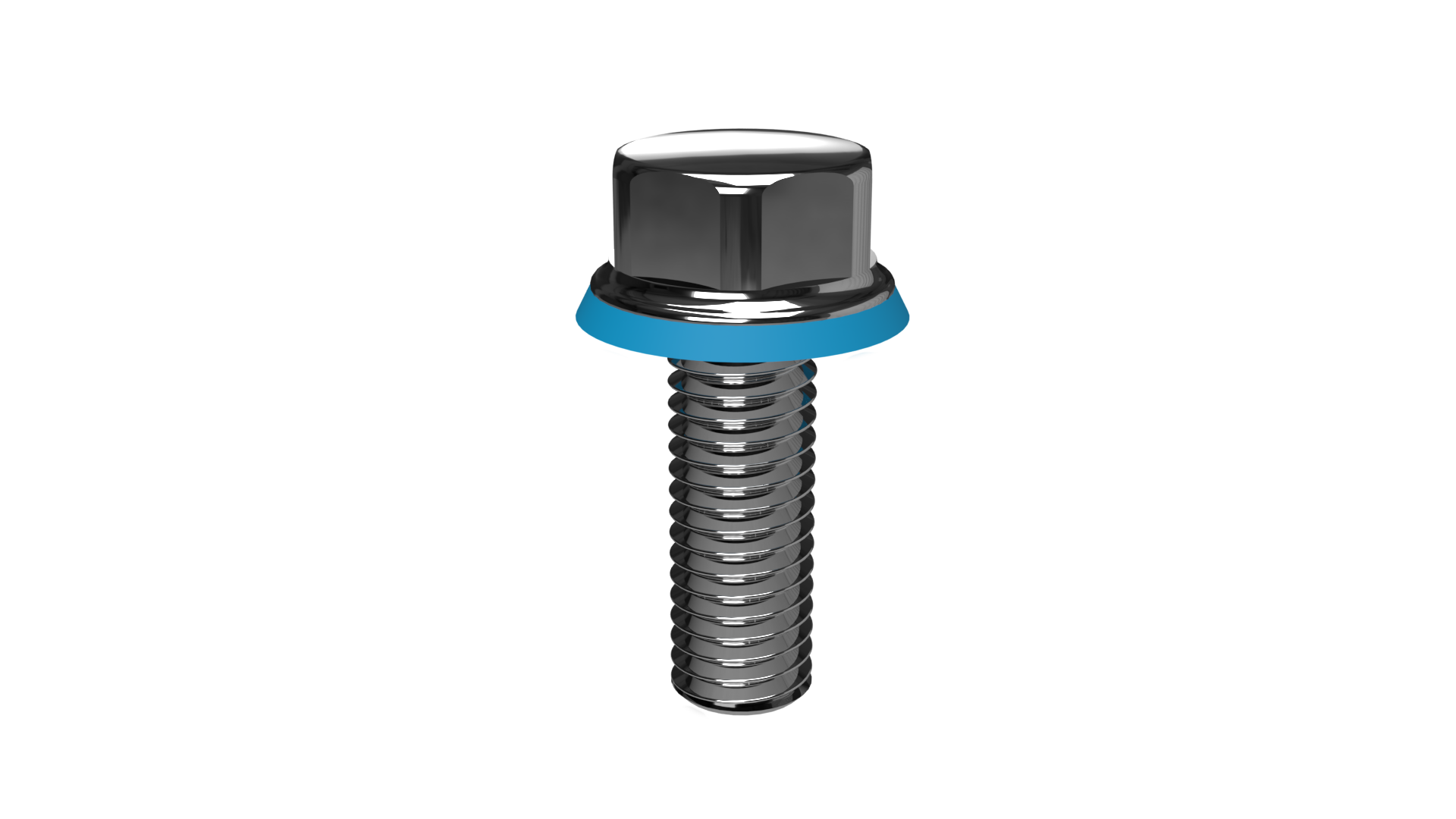

EQM Hygiene nuts and bolts are produced in stainless steel (SS316), the hygienic seals are in blue foodgrade silicon and included in the delivery.
| Part Name | A | B | C | D | SW |
|---|---|---|---|---|---|
| DH100 M8x12-9.1-16-M | M8 | 12 | 9.1 | 16 | 13 |
| DH100 M8x16-9.1-16-M | M8 | 16 | 9.1 | 16 | 13 |
| DH100 M8x20-9.1-16-M | M8 | 20 | 9.1 | 16 | 13 |
| DH100 M8x22-9.1-16-M | M8 | 22 | 9.1 | 16 | 13 |
| DH100 M8x25-9.1-16-M | M8 | 25 | 9.1 | 16 | 13 |
| DH100 M8x30-9.1-16-M | M8 | 30 | 9.1 | 16 | 13 |
| DH100 M8x35-9.1-16-M | M8 | 35 | 9.1 | 16 | 13 |
| all sizes in mm |
