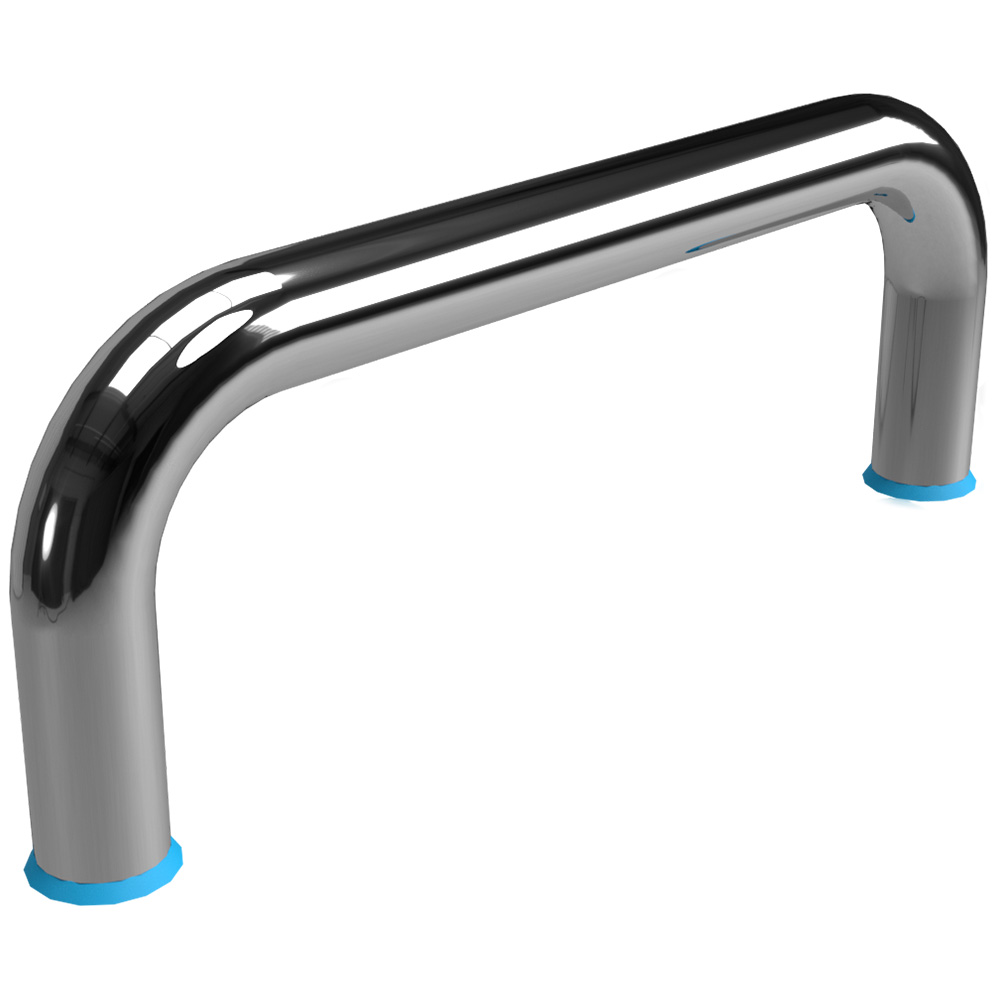

Stainless Steel U-Handles
Stainless steel U-handles designed for use in hygiene-critical environments. The DH200 Series features a sealed mounting surface and smooth finish to minimise dirt build-up and support effective cleaning.
- Size125 mm – M5, 160 mm – M5, 160 mm – M6, 200 mm – M6
Downloads (1) Not sure which one? Call 0800 147 847
Overview
The DH200 Series Stainless Steel U-Handles are intended for use in hygiene areas where cleanability and durability are critical.
Manufactured from stainless steel with a high-quality surface finish, these U-handles feature sealed mounting surfaces that prevent the build-up of contaminants and eliminate dead spaces around fixings.
The DH200 range is suitable for use on machinery, access panels, guards, and enclosures in food processing and hygiene-controlled environments.
DH200 Stainless Steel U-Handle Applications
Designed for use in hygiene-critical areas where regular cleaning is required. Suitable for machinery doors, access panels, guards, and enclosures in food processing and sanitary environments.
Suitable for hygiene applications
Food processing equipment
Machinery guards and covers
Access panels and enclosures
Washdown environments
Specifications
Stainless steel construction
Sealed mounting surface to prevent contamination
Smooth, hygienic surface finish
Designed for easy cleaning
Suitable for hygiene-controlled environments
| Size | 125 mm – M5, 160 mm – M5, 160 mm – M6, 200 mm – M6 |
|---|

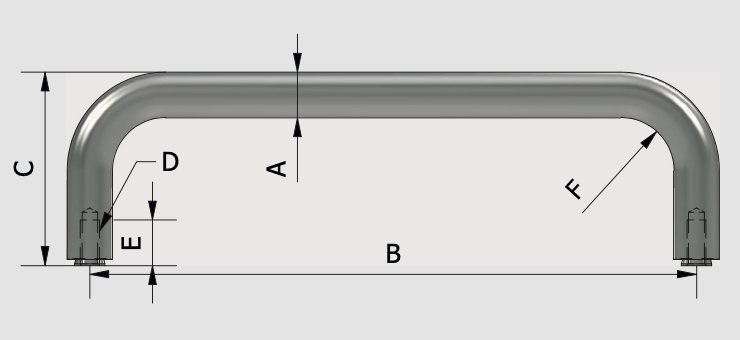

| Part Name | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| DH200 12-125-51-M5-F | 12 | 125 | 51 | M5 | 12 | 14 |
| DH200 12-160-51-M5-F | 12 | 160 | 51 | M5 | 12 | 14 |
| DH200 16-160-59-M6-F | 16 | 160 | 59 | M6 | 12 | 18 |
| DH200 16-200-59-M6-F | 16 | 200 | 59 | M6 | 12 | 18 |
| all sizes in mm |
All sizes
Every size in this range (4)
| Size | SKU | Choose |
|---|---|---|
| 125 mm – M5 | TMPDH20012-125M5F | |
| 160 mm – M5 | TMPDH20012-160M5F | |
| 160 mm – M6 | TMPDH20016-160M6F | |
| 200 mm – M6 | TMPDH20016-200M6F |
Downloads
PDFHave any questions?
Talk to the EQM team about sizing, fit or system design.
