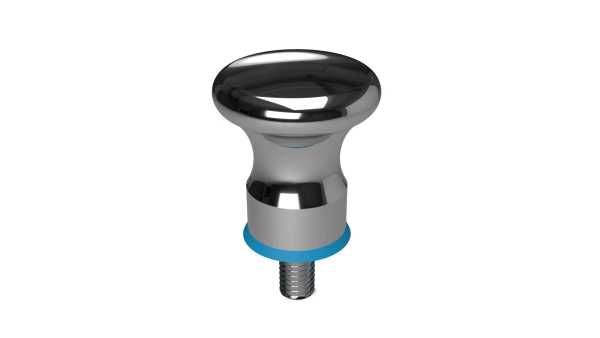

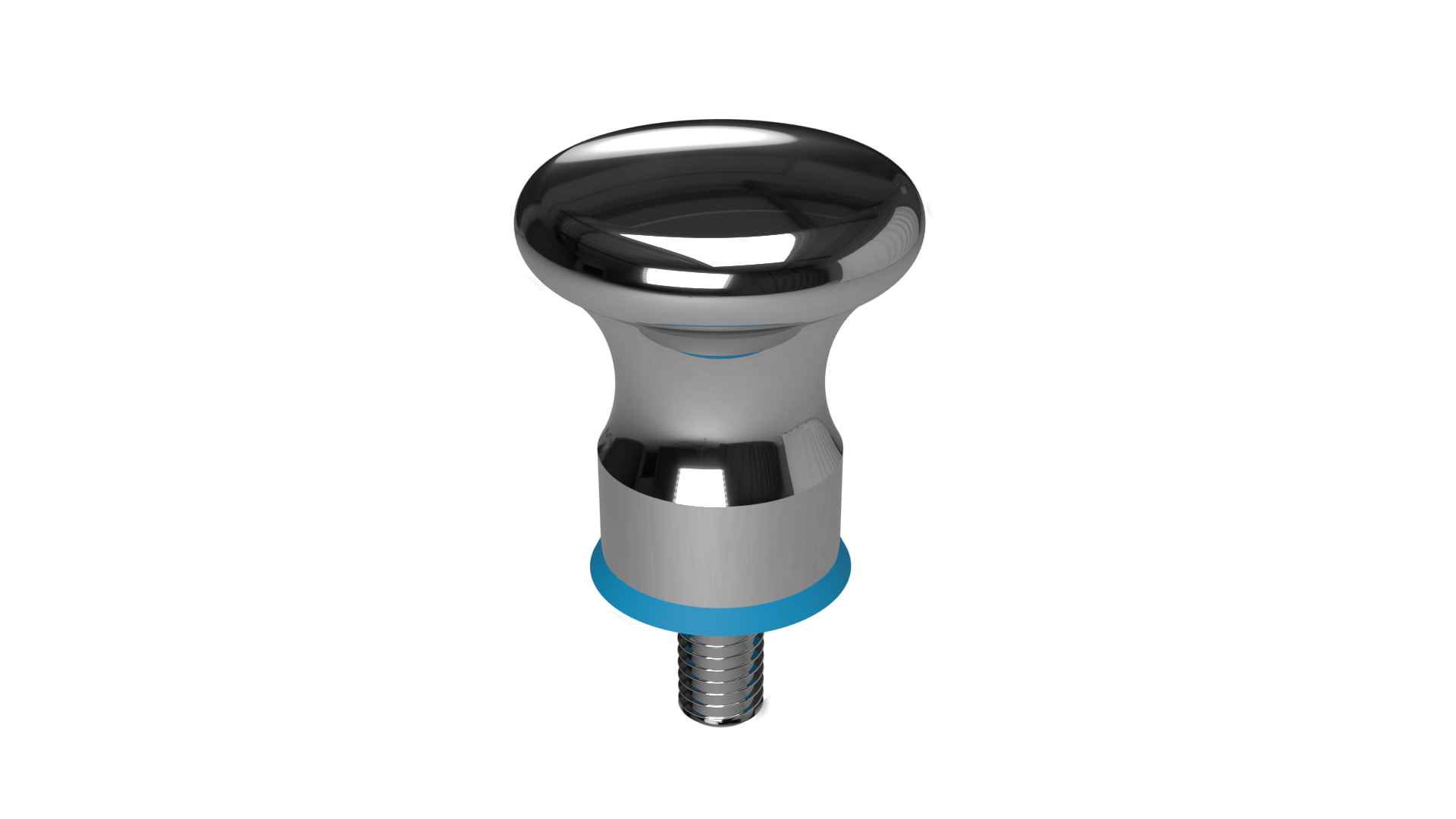

Stainless Steel Waist Shaped Knobs
Shipping calculated at checkout.
DH303 Series
DH303 waist shaped Stainless Steel Knobs are intended for use in hygienic areas.
The sealed mounting surfaces enables mounting without dead spaces.
The impervious geometry in combination with the high quality finish prevents the accumulation of dirt and facilitates cleaning.
| Part Name | A | B | C | D | E |
|---|---|---|---|---|---|
| Male Thread | |||||
| DH303 20-24-M5x10-M | 20 | 24 | M5 | 10 | 14 |
| DH303 25-29-M6x12-M | 25 | 29 | M6 | 12 | 16 |
| DH303 32-37-M8x14-M | 32 | 37 | M8 | 14 | 18 |
| Female Thread | |||||
| DH303 20-24-M5-F | 20 | 24 | M5 | 7 | 14 |
| DH303 25-29-M6-F | 25 | 29 | M6 | 9 | 16 |
| DH303 32-37-M8-F | 32 | 37 | M8 | 12 | 18 |
| all sizes in mm |
Stainless Steel Waist Shaped Knobs
DOWNLOAD PDF (117.31 KB)Related products
