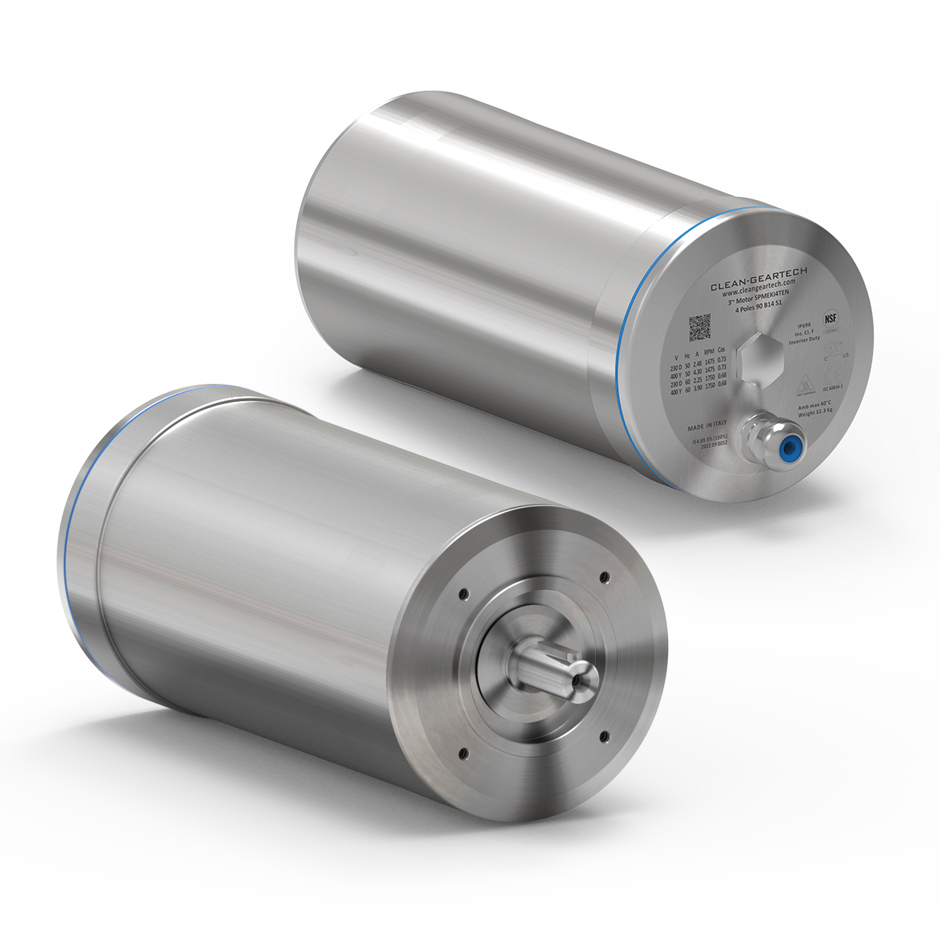

Clean-Geartech SPM Series Stainless Steel Motor
Shipping calculated at checkout.
- Now available in speeds 2, 4 & 6pole
- Totally Enclosed non ventilated (TENV)
- Totally Enclosed Fan Cooled (TEFC) for 2.2kw motors only
- Standard terminal box with cable gland in axial position (radial position on request only)
- Energy efficiency rating IE4
- AISI 316L Stainless Steel Construction
- UL certification
- Highest waterproof rating IP69K
- Available in B14 & B5 Flanged Mounting and B3 Foot Mounting
- Made and assembled in Italy
The IP69K rating means the Clean-Geartech Stainless Motor is protected against dust ingress and high temperature, high pressure water pressures.
Products with an IP69K rating are specifically-produced for use in food & beverage production equipment, where components must be easily & fully sanitised.
SPM Series Stainless Steel Motor Applications
Best suited for applications that come into direct contact with processing product and are subjected to regular sanitisation procedures, in areas such as such as meat and poultry, fish and seafood processing, fruit and vegetables, dairy production, beverages, bakery applications and marine.
Suitable for Food processing
- Meat
- Poultry
- Dairy
- Seafood
- Pet food
- Confectionery
| Frame | kW | Speed | Amps (400V) | Torque (Nm) | IP Rating | Effeciency |
|---|---|---|---|---|---|---|
| 4pole Motors | ||||||
| 63A | 0.12 | 1445 | 0.40 | 0.81 | IP69K | IE4 Premium Efficiency |
| 63B | 0.18 | 1445 | 0.48 | 1.21 | IP69K | IE4 Premium Efficiency |
| 71A | 0.25 | 1444 | 0.64 | 1.66 | IP69K | IE4 Premium Efficiency |
| 71B | 0.37 | 1440 | 0.94 | 2.45 | IP69K | IE4 Premium Efficiency |
| 80A | 0.55 | 1448 | 1.34 | 3.66 | IP69K | IE4 Premium Efficiency |
| 80B | 0.75 | 1456 | 1.74 | 4.95 | IP69K | IE4 Premium Efficiency |
| 90S | 1.1 | 1475 | 2.50 | 7.15 | IP69K | IE4 Premium Efficiency |
| 90L | 1.5 | 1475 | 3.34 | 9.75 | IP69K | IE4 Premium Efficiency |
| 100 | 2.2 | 1445 | 4.80 | 14.5 | IP69K | IE4 Premium Efficiency |
| 2pole Motors | ||||||
| 63A | 0.18 | 2890 | 0.45 | 0.60 | IP69K | IE4 Premium Efficiency |
| 63B | 0.25 | 2895 | 0.58 | 0.84 | IP69K | IE3 Premium Efficiency |
| 71A | 0.37 | 2930 | 0.85 | 1.23 | IP69K | IE4 Premium Efficiency |
| 71B | 0.55 | 2910 | 1.24 | 1.85 | IP69K | IE4 Premium Efficiency |
| 80A | 0.75 | 2900 | 1.52 | 2.45 | IP69K | IE4 Premium Efficiency |
| 80B | 1.1 | 2910 | 2.10 | 3.60 | IP69K | IE4 Premium Efficiency |
| 90S | 1.5 | 2930 | 3.00 | 4.90 | IP69K | IE4 Premium Efficiency |
| 90S | 2.2 | 2920 | 4.20 | 7.20 | IP69K | IE4 Premium Efficiency |
| 100LA | 3.0 | 2910 | 5.50 | 9.80 | IP69K | IE4 Premium Efficiency |
| 6pole Motors | ||||||
| 71A | 0.18 | 890 | 0.55 | 1.95 | IP69K | IE4 Premium Efficiency |
| 71B | 0.25 | 890 | 0.75 | 2.65 | IP69K | IE4 Premium Efficiency |
| 80A | 0.37 | 890 | 1.10 | 3.98 | IP69K | IE4 Premium Efficiency |
| 80B | 0.55 | 900 | 1.30 | 5.30 | IP69K | IE4 Premium Efficiency |
| 90S | 0.75 | 940 | 1.70 | 7.60 | IP69K | IE4 Premium Efficiency |
| 90L | 1.1 | 950 | 2.40 | 11.10 | IP69K | IE4 Premium Efficiency |
CLEAN-GEARTECH STAINLESS STEEL MOTOR - Specs
DOWNLOAD PDF (2.21 MB)Related products
